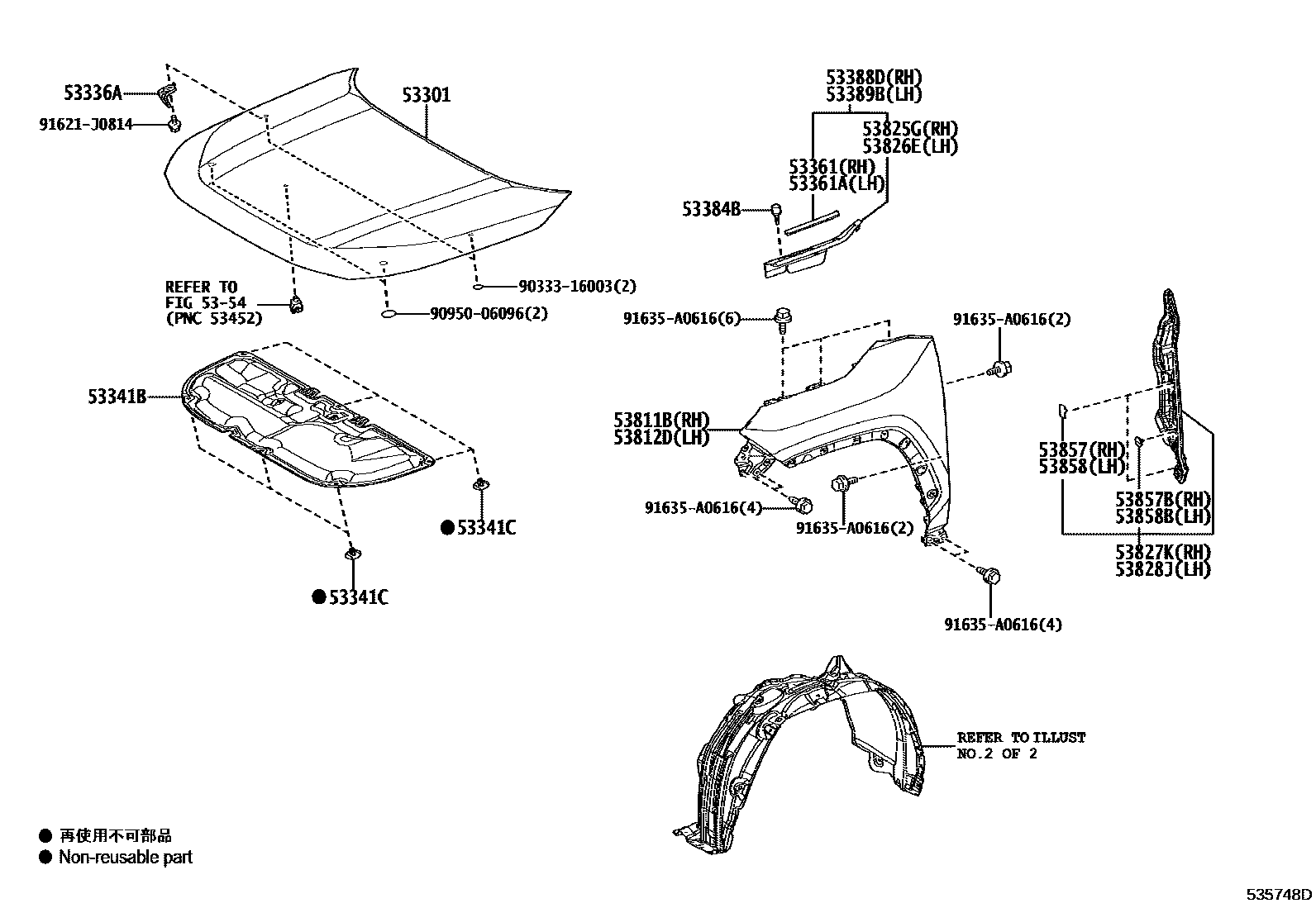

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-0R110iAXAA54,MXAA5#..RUS202010-202203

main53301-42150iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202004

53336ABRACKET, HOOD STAY

main53336-42010iAXAA5#,AXAH5#,AXAL5#,MXAA5#..JPP202210

53341BINSULATOR, HOOD

main53341-0R090iAXAA54,MXAA5#..RUS202010-202203

main53341-42100iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201811-202007

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×6iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

53361WEATHERSTRIP, HOOD

main53361-42020iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

53361AWEATHERSTRIP, HOOD

main53361-42020iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

53384BCUSHION, HOOD, CENTER

main53384-22070×2iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202004

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-42040iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-42060iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

5354

53811BPANEL, FRONT FENDER, RH

main53811-0R160iAXAA54,MXAA5#..RUS202010-202203

main53811-42330iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201905

53812DPANEL, FRONT FENDER, LH

main53812-0R140iAXAA54,MXAA5#..RUS202010-202203

main53812-42360iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310

53825GPROTECTOR, FRONT FENDER, UPPER RH

main53825-42050iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

53826EPROTECTOR, FRONT FENDER, UPPER LH

main53826-42030iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR202310

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0R080iAXAA54,MXAA5#..RUS201910-202009

main53827-42060iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202008-202111

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0R080iAXAA54,MXAA5#..RUS202010-202203

main53828-42080iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201811-202007

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010×2iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010×2iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

9033316003

main90333-16003

9095006096

main90950-06096

91621J0814

main91621-J0814

91635A0616

main91635-A0616

24 parts on this diagram · 2 diagrams in section
