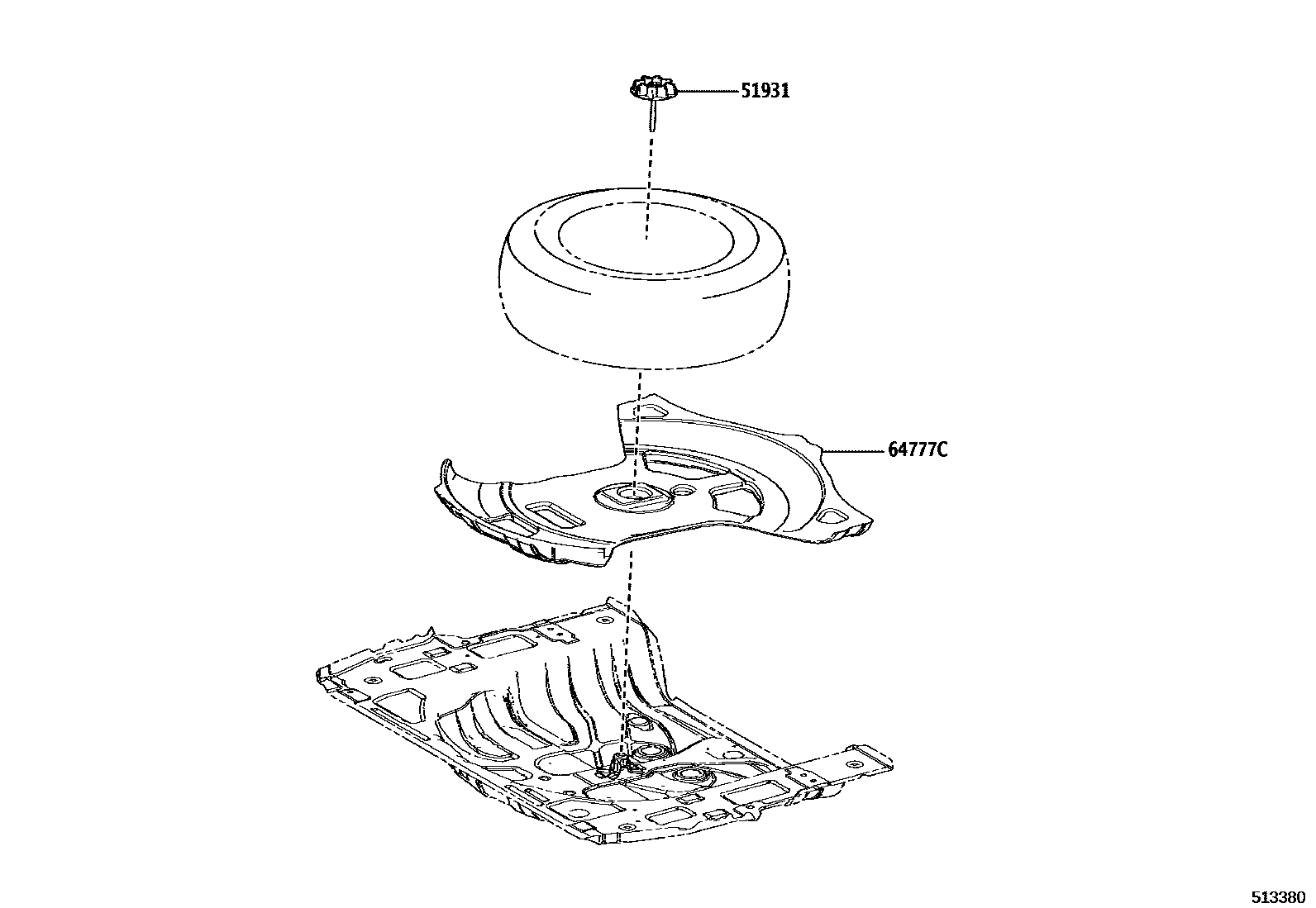

SPARE WHEEL CARRIER

0001 1GROUND TIRE 0002 1TEMPORARY TIRE

51931CARRIER, SPARE WHEEL, NO.1

main51931-33060supersedes 51931-33060iAXAH54,AXAL54..RHD..V..EUR202112-202210

SPARE TIRE-T165/90D18(REINFORCED TEMPORARY),STEEL

main51931-42030supersedes 51931-42030iAXAH54..V..SA;AXAA54..LHD..V;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAL5#..(G,M,P)..EUR;MXAA52..LHD..6F..GEN;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);MXAA5202008-202210

SPARE TIRE-REPAIR KIT

main51931-42040iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

64777CCUSHION, SPARE WHEEL

main64777-0R130iAXAA54,MXAA5#..RUS202010-202203

main64777-42070iAXAH5#..LHD..GEN;MXAA52..LHD..EUR;AXAH5#,MXAA54..EUR;MXAA54..LHD..V..GEN;MXAA52..LHD..CVT..(G,X)..GEN202008-202010

SPARE TIRE-REPAIR KIT

main64777-42071iMXAA54..LHD..V;AXAH5#..LHD..GEN;MXAA52..LHD..CVT..(G,X)..GEN202310

SPARE TIRE-REPAIR KIT

main64777-42080supersedes 64777-42080iMXAA52..G..ARL;MXAA52..LHD..EUR;AXAA54,AXAH54..V..ARL;AXAH5#,AXAL5#,MXAA54..JPP..(EUR,RUS)202210

SPARE TIRE-T165/80D17(REINFORCED TEMPORARY),STEEL

2 parts on this diagram · 2 diagrams in section
