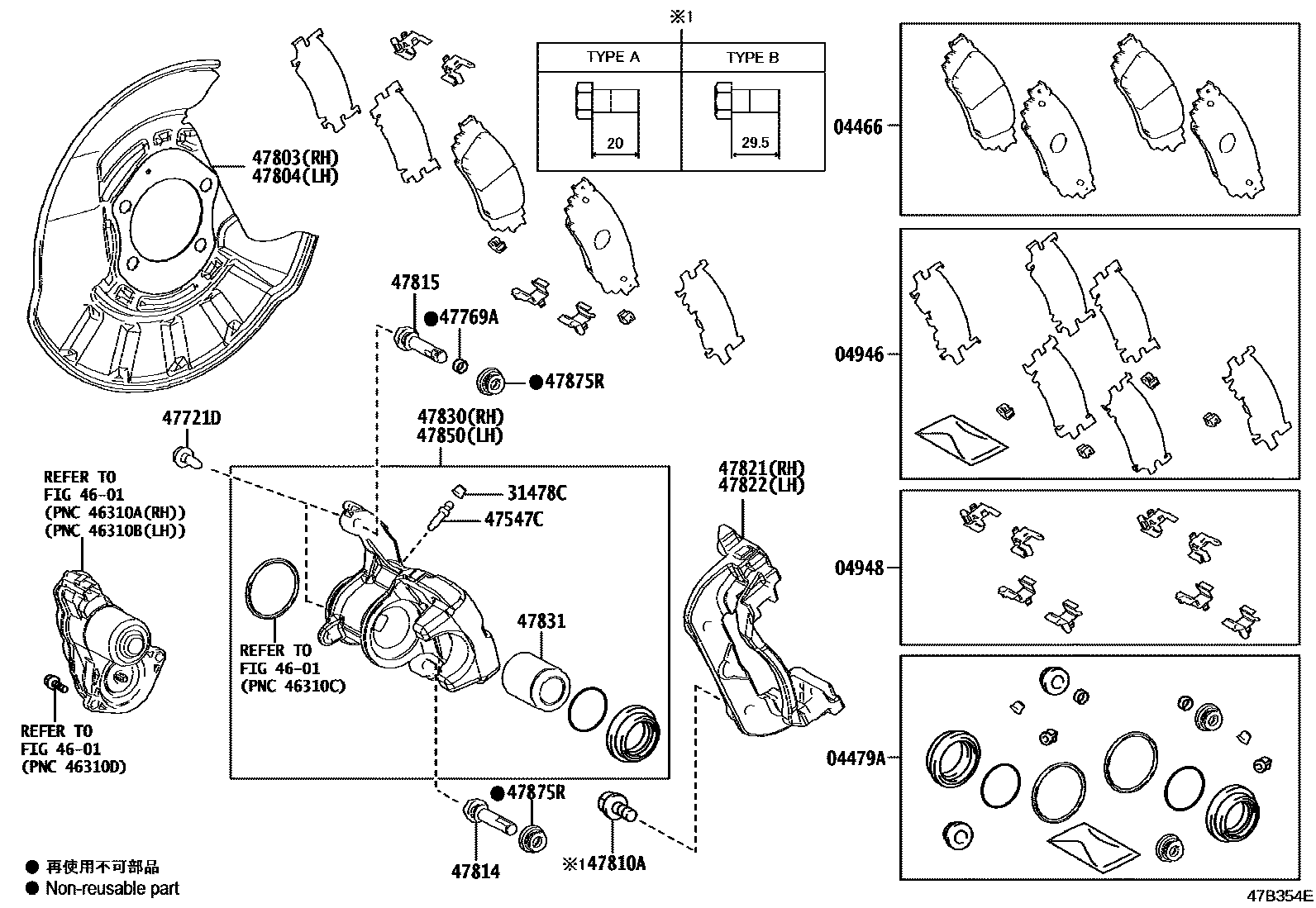

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-30410iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202312-202410

MARK NBK D6363-FF N

main04466-42080iAXAH52..RHD..G..GEN201811-202310

MARK NBK 478-XA5

main04466-42090iAXAA5#,AXAH5#,MXAA5#..EUR,GCC201811-202004

MARK NBK 478-XA5

sub04466-F4020

main04466-F4020iMXAA5#..EUR202004-202311

MARK NBK D6361

sub04466-30410

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-42100iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202310

main04479-42110iAXAH52..LHD..M..EUR;AXAH54,MXAA52..X..GCC;AXAA5#,AXAL5#..EUR,GCC;MXAA54..JPP..(GCC,RUS);AXAH52..(G,P,X)..(EUR,GCC);AXAH54..LHD..(G,M,P,V)..(EUR,GCC)201811-202410

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30260iAXAA5#,AXAH5#,MXAA5#..EUR,GCC201811-202004

sub04946-30270

main04946-30280iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202312-202410

main04946-33090iAXAA54,MXAA5#..RUS201811-202310

main04946-F4020iMXAA54..G..EUR;AXAA5#,MXAA52..EUR,GCC;MXAA54..(M,X)..(EUR,GCC);AXAH5#,AXAL5#..LHD..X..(EUR,GCC);AXAH5#,AXAL5#..(G,M,P,V)..(EUR,GCC)202004-202311

04948FITTING KIT, DISC BRAKE, REAR

main04948-12070iMXAA54..G..EUR;AXAA5#,MXAA52..EUR,GCC;MXAA54..(M,X)..(EUR,GCC);AXAH5#,AXAL5#..LHD..X..(EUR,GCC);AXAH5#,AXAL5#..(G,M,P,V)..(EUR,GCC)201811-202311

main04948-12071iMXAA52..X..(ARL,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,MXAA54..ARL,GEN,SA202204-202309

main04948-33060iAXAH5#..ARL,SA;MXAA54..RHD..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..LHD..V..GEN;MXAA52..6F..(RUS,SA);MXAA52..LHD..6F..GEN;AXAA54..(M,V,X)..ARL;AXAA52..LH201811-202204

main04948-V2010iAXAH52..LHD..M..EUR;AXAH54,MXAA52..X..GCC;AXAA5#,AXAL5#..EUR,GCC;MXAA54..JPP..(GCC,RUS);AXAH52..(G,P,X)..(EUR,GCC);AXAH54..LHD..(G,M,P,V)..(EUR,GCC)202312-202410

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202410

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202410

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

*8-1.00PX23-12.5

sub90016-AA614

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202410

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-33010iAXAH52..RHD..G..GEN201811-202310

main47803-42010iMXAA5#..EUR201811-202410

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-33010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202310

main47804-42010iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR201811-202410

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202410

main90105-12174iMXAA52..X..(ARL,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,MXAA54..ARL,GEN,SA202310

TYPE A:REFER ILLUST.

main90105-12208iMXAA52..X..(ARL,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,MXAA54..ARL,GEN,SA202310

TYPE B:REFER ILLUST.

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iAXAA54,MXAA5#..RUS201811-202410

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-10030iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202310

main47821-42100iMXAA5#..EUR201811-202410

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-10030iAXAH52..RHD..G..GEN201811-202310

main47822-42090iMXAA5#..EUR201811-202410

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-42090iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202310

main47830-42100iAXAA54..EUR201811-202410

47831PISTON, REAR DISC BRAKE

main47831-42100iMXAA54..(G,V)..GCC;AXAH5#,AXAL5#..RHD..X..EUR201811-202209

main47831-48130iAXAA54,MXAA5#..RUS201811-202310

main47831-58040iMXAA5#..EUR202210-202410

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-42080iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202310

main47850-42090iAXAA5#..GCC;AXAH5#,AXAL5#,MXAA5#..EUR,GCC201811-202410

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410
