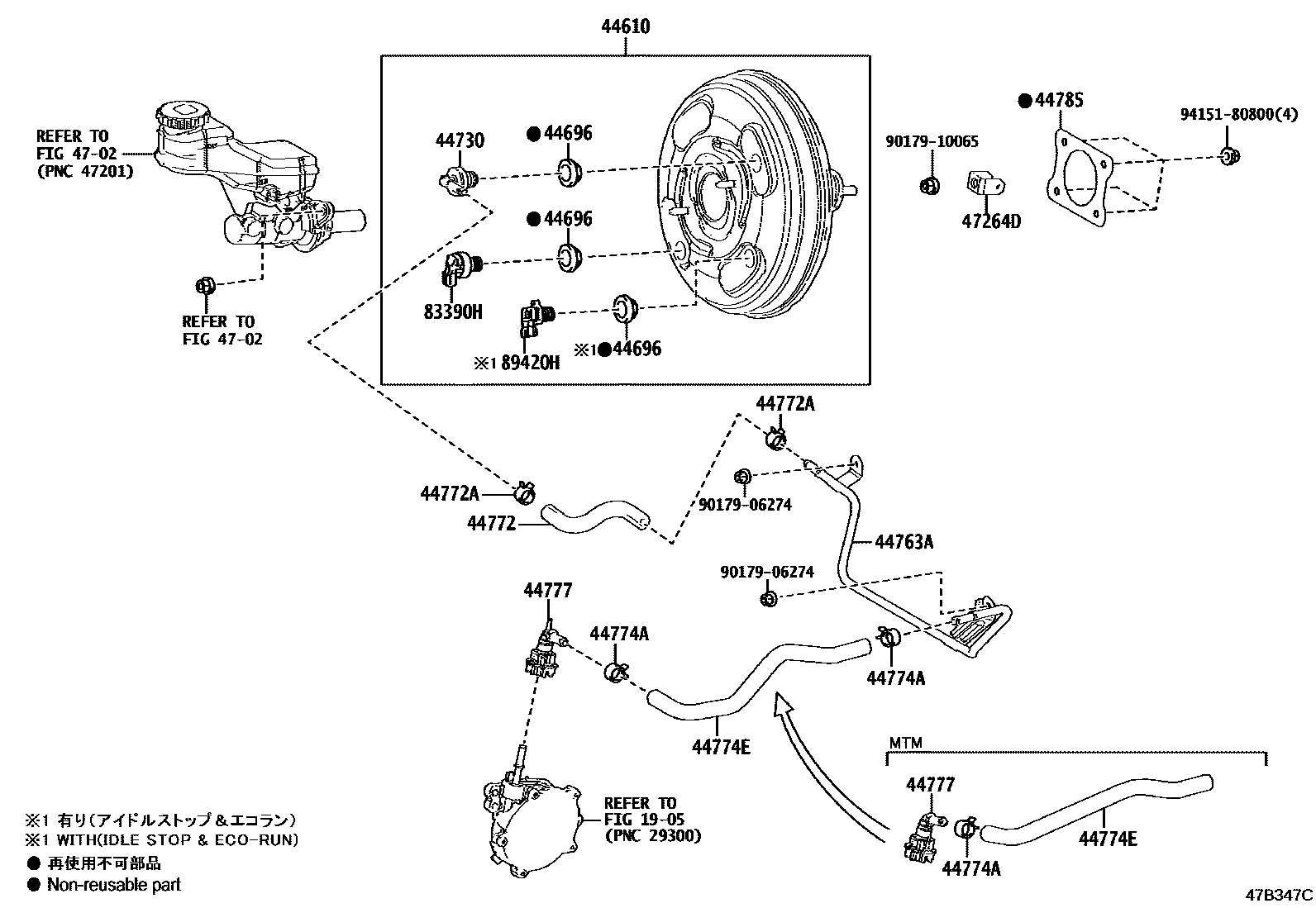

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-42460iAXAA54..G..ARL;AXAA54..RHD..V..GEN;AXAA52,MXAA5#..RHD..(6F,8FC)..(ARL,GEN)202008-202111

main44610-42490iMXAA52..RHD..EUR201811-202007

main44610-42491iMXAA52..G..EUR202210

main44610-42500iAXAA52..X..GEN202008-202111

main44610-42520supersedes 44610-42531iAXAA5#,MXAA5#..JPP..(GCC,RUS)202210-202310

main44610-42470iAXAA54,MXAA52..ARL201901-202007

LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN

main44610-42471iAXAA54,MXAA52..ARL202310

LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN

44696GROMMET, CHECK VALVE

main90480-24439×2supersedes 90480-24439iMXAA52..X..SA202210

REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iAXAA54..EUR201811-202004

44763ATUBE, HOSE TO HOSE, NO.1

main44763-42090iMXAA52..6F..G..SA201811-201909

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-42100iMXAA52..6F..G..SA201811-201909

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014×2iMXAA52..X..SA;MXAA52..G..EUR202210

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014×2iMXAA52..X..SA;MXAA52..G..EUR202210

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-42120iMXAA5#..RHD..CVT;AXAA54..(M,V,X)..ARL;AXAA54..RHD..(G,M,X)..(GEN,SA)202008-202210

main44774-42140iMXAA52..6F..SA202008-202210

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-33010iAXAA52..GCC;AXAA54..LHD..V;MXAA52..JPP..CVT;AXAA54..(M,V,X)..ARL;AXAA52..LHD..(G,M)..GEN;MXAA54..JPP..CVT..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);MXAA54..CVT..(G,V)..(202008-202210

main44777-42020iMXAA5#..6F..GEN202310

44785GASKET, BRAKE BOOSTER

main44785-12040iAXAA52..X..GEN;AXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAA52,MXAA5#..RHD..(6F,8FC)..(ARL,GEN)202008-202111

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-42020iAXAA54,MXAA5#..RUS201811-202009

main47264-52050iMXAA5#..LHD..EUR202210

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iMXAA5#..6F..G..(GEN,SA)201811-201909

89420HSENSOR ASSY, VACUUM

main89421-52020supersedes 89421-52020iMXAA52..CVT..ARL;AXAA54..(M,V)..ARL202008-202112

REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)

main89421-71040iMXAA52..CVT..ARL;AXAA54..(M,V)..ARL202112-202210

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NTA LABEL

9017906274

main90179-06274

9017910065

main90179-10065

9415180800

main94151-80800

18 parts on this diagram · 2 diagrams in section
