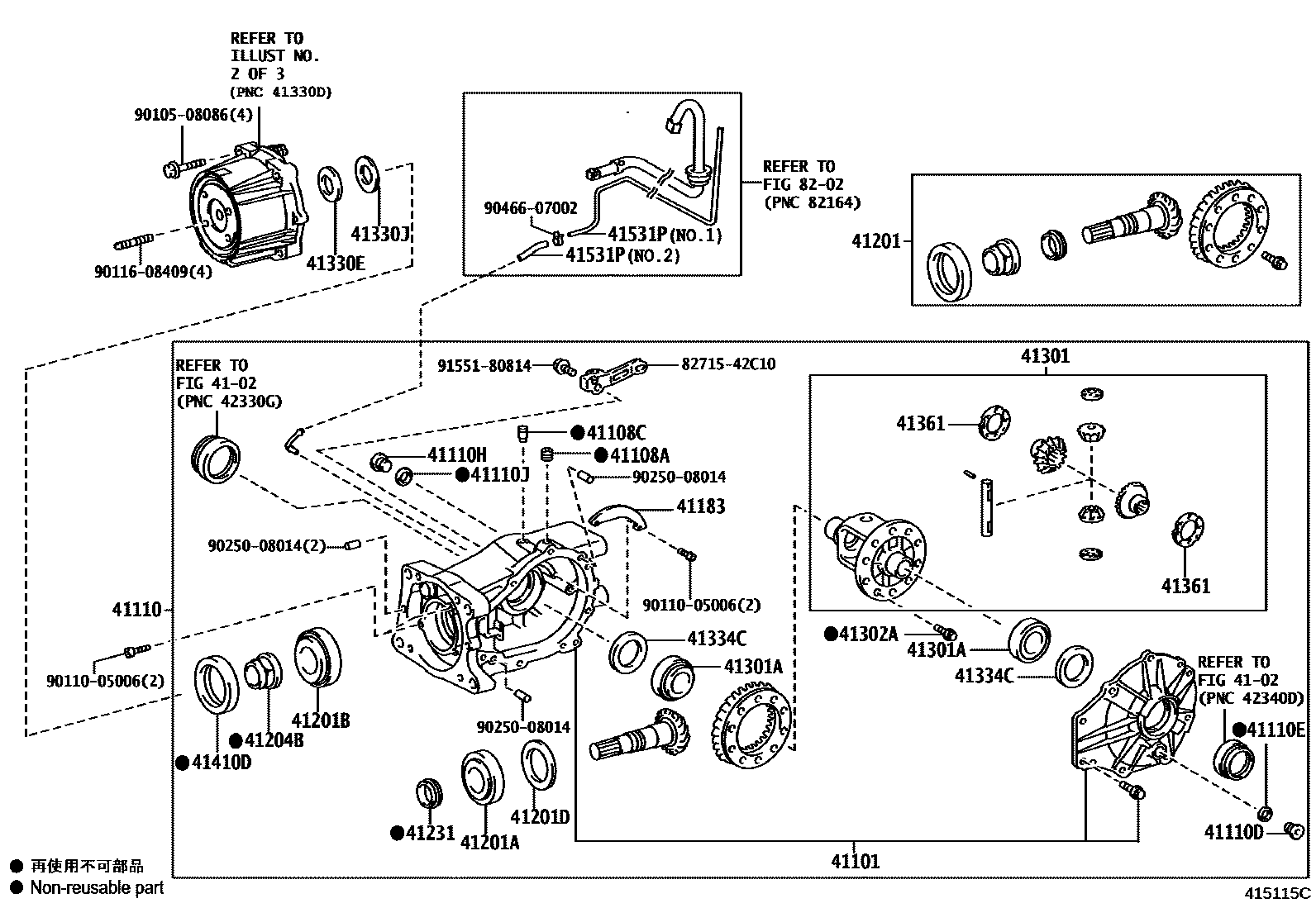

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

4102

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-42022iMXAA54..6F..G..GEN201811-202210

41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)

main90344-53006iMXAA54..6F..G..GEN201811-202210

41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)

main90930-03235iAXAA54,MXAA54..(M,X)..RUS201811-202210

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-42050iMXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V)201811-201902

*FGR=38:17=2.235

sub41110-42051

main41110-42051iMXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V)201902-201907

*FGR=38:17=2.235

sub41110-42052

main41110-42052iMXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V)201907-202004

*FGR=38:17=2.235

sub41110-42053

main41110-42053iAXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN202004-202209

*FGR=38:17=2.235

sub41110-42054

main41110-42054iAXAA54,MXAA54..JPP..(G,V);MXAA54..JPP..CVT..M..(EUR,RUS)202210

*FGR=38:17=2.235

main41110-42060iAXAA54..M,X;MXAA54..6F..EUR;MXAA54..RHD..CVT..(M,X);MXAA54..LHD..(M,X)..(GCC,GEN,RUS)201811-202210

*FGR=41:18=2.277

41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)

main90341-18035iAXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN201907-202210

main90341-18051iMXAA54..JPP..LHD..6F;AXAA54,MXAA54..(ATM,CVT)..(M,X)..(ARL,GCC,GEN)201811-202210

41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)

main12157-10010iMXAA54..6F..G..GEN201811-202210

41110HPLUG (FOR REAR DIFFERENTIAL FILLER)

main90341-18023iMXAA54..6F..G..GEN201811-202210

41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)

main12157-10010iMXAA54..6F..G..GEN201811-202210

41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL

main41183-42020iMXAA54..JPP..M..RUS;AXAA54,MXAA54..JPP..(G,V)..(ARL,GCC,GEN,RUS,SA)201811-202210

main41183-52010iAXAA54,MXAA54..(M,X)..RUS201811-202210

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-59115iMXAA54..6F..G..GEN201811-202111

*FGR=41:18=2.277

sub41201-59425

main41201-59425iAXAA54,MXAA54..(M,X)..RUS202112-202210

*FGR=41:18=2.277

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35130iAXAA54,MXAA54..(M,X)..RUS201811-202210

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30090iAXAA54,MXAA54..(M,X)..RUS201811-202210

main90366-30123iAXAA54,MXAA54..JPP..(G,V);MXAA54..JPP..CVT..M..(EUR,RUS)201811-202210

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90564-35041iMXAA54..6F..G..GEN201811-202210

T=1.70,MARK 41

main90564-35043iAXAA54..M..EUR201811-202210

T=1.72,MARK 43

main90564-35045iAXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.74,MARK 45

main90564-35047iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.76,MARK 47

main90564-35049iMXAA54..6F..G..GEN201811-202210

T=1.78,MARK 49

main90564-35051iMXAA54..6F..G..GEN201811-202210

T=1.80,MARK 51

main90564-35053iMXAA54..JPP..LHD..6F;AXAA54,MXAA54..(ATM,CVT)..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.82,MARK 53

main90564-35055iMXAA54..RHD..6F201811-202210

T=1.84,MARK 55

main90564-35057iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.86,MARK 57

main90564-35059iMXAA54..JPP..LHD..6F;AXAA54,MXAA54..(ATM,CVT)..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.88,MARK 59

main90564-35061iAXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.90,MARK 61

main90564-35063iMXAA54..6F..G..GEN201811-202210

T=1.92,MARK 63

main90564-35065iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.94,MARK 65

main90564-35071iAXAA54,MXAA54..(M,X)..RUS201811-202210

T=1.96,MARK 71

main90564-35073iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.98,MARK 73

main90564-35075iMXAA54..JPP..LHD..6F;AXAA54,MXAA54..(ATM,CVT)..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.00,MARK 75

main90564-35077iAXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.02,MARK 77

main90564-35079iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.04,MARK 79

main90564-35081iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.06,MARK 81

main90564-35083iAXAA54,MXAA54..(M,X)..RUS201811-202210

T=2.08,MARK 83

main90564-35085iAXAA54,MXAA54..(M,X)..RUS201811-202210

T=2.10,MARK 85

main90564-35087iMXAA54..JPP..LHD..6F;AXAA54,MXAA54..(ATM,CVT)..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.12,MARK 87

main90564-35089iAXAA54,MXAA54..(M,X)..RUS201811-202210

T=2.14,MARK 89

main90564-35091iMXAA54..JPP..LHD..6F;AXAA54,MXAA54..(ATM,CVT)..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.16,MARK 91

main90564-35093iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.18,MARK 93

main90564-35095iMXAA54..JPP..LHD..6F;AXAA54,MXAA54..(ATM,CVT)..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.20,MARK 95

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-42010iMXAA54..JPP..M..RUS;AXAA54,MXAA54..JPP..(G,V)..(ARL,GCC,GEN,RUS,SA)201811-202310

41204BNUT (FOR REAR DRIVE PINION)

main90178-30001iMXAA54..RHD..6F201811-202210

OD=41.6

main90179-18020iAXAA54,MXAA54..JPP..(G,V);MXAA54..JPP..CVT..M..(EUR,RUS)201811-202210

OD=33.5

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-42010iAXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN201811-202210

main41231-52010iMXAA54..JPP..LHD..6F;AXAA54,MXAA54..(ATM,CVT)..(M,X)..(ARL,GCC,GEN)201811-202210

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-52100iMXAA54..6F..G..GEN201811-202210

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-33003iAXAA54,MXAA54..(M,X)..RUS201811-202210

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-42050iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201907-202210

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-11034iAXAA54,MXAA54..(M,X)..RUS201811-202210

41330EWASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING)

main90208-25001iAXAA54..M..EUR201811-202210

41330JSHIM (FOR TRANSMISSION COUPLING)

main90564-25024iAXAA54..M..EUR201811-202210

T=2.00,MARK 1

main90564-25025iAXAA54,MXAA54..(M,X)..RUS201811-202210

T=2.30,MARK 2

main90564-25026iMXAA54..6F..G..GEN201811-202210

T=2.60,MARK 3

main90564-25027iMXAA54..6F..G..GEN201811-202210

T=1.85,MARK 4

main90564-25028iMXAA54..JPP..LHD..6F;AXAA54,MXAA54..(ATM,CVT)..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.15,MARK 5

main90564-25029iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.45,MARK 6

main90564-25031iMXAA54..JPP..LHD..6F;AXAA54,MXAA54..(ATM,CVT)..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.75,MARK 8

main90564-25032iMXAA54..6F..G..GEN201811-202210

T=1.80,MARK 9

main90564-25033iMXAA54..JPP..LHD..6F;AXAA54,MXAA54..(ATM,CVT)..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.90,MARK 10

main90564-25034iMXAA54..6F..G..GEN201811-202210

T=1.95,MARK 11

main90564-25035iAXAA54,MXAA54..(M,X)..RUS201811-202210

T=2.05,MARK 12

main90564-25036iMXAA54..RHD..6F201811-202210

T=2.10,MARK 13

main90564-25037iAXAA54..M..EUR201811-202210

T=2.20,MARK 14

main90564-25038iAXAA54,MXAA54..(M,X)..RUS201811-202210

T=2.25,MARK 15

main90564-25039iAXAA54..M..EUR201811-202210

T=2.35,MARK 16

main90564-25040iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.40,MARK 17

main90564-25041iAXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.50,MARK 18

main90564-25042iMXAA54..RHD..6F201811-202210

T=2.55,MARK 19

main90564-25043iAXAA54..M..EUR201811-202210

T=2.65,MARK 20

main90564-25044iAXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.70,MARK 21

41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90564-37022iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.60

main90564-37023iAXAA54..M..EUR201811-202210

T=1.63

main90564-37024iAXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.66

main90564-37025iAXAA54..M..EUR201811-202210

T=1.69

main90564-37026iAXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.72

main90564-37027iMXAA54..RHD..6F201811-202210

T=1.75

main90564-37028iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.78

main90564-37029iAXAA54,MXAA54..(M,X)..RUS201811-202210

T=1.81

main90564-37030iAXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.84

main90564-37031iAXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.87

main90564-37032iMXAA54..JPP..LHD..6F;AXAA54,MXAA54..(ATM,CVT)..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.90

main90564-37033iAXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.93

main90564-37034iMXAA54..JPP..LHD..6F;AXAA54,MXAA54..(ATM,CVT)..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.96

main90564-37035iMXAA54..JPP..LHD..6F;AXAA54,MXAA54..(ATM,CVT)..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.99

main90564-37036iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.02

main90564-37037iMXAA54..RHD..6F201811-202210

T=2.05

main90564-37038iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.08

main90564-37039iAXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.11

main90564-37040iAXAA54,MXAA54..(M,X)..RUS201811-202210

T=2.14

main90564-37041iAXAA54..M..EUR201811-202210

T=2.17

main90564-37042iAXAA54..M..EUR201811-202210

T=2.20

main90564-37043iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.23

main90564-37044iAXAA54,MXAA54..(M,X)..RUS201811-202210

T=2.26

main90564-37045iAXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.29

main90564-37046iAXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.32

main90564-37047iMXAA54..RHD..6F201811-202210

T=2.35

main90564-37048iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.38

main90564-37049iAXAA54..M..EUR201811-202210

T=2.41

main90564-37050iMXAA54..RHD..6F201811-202210

T=2.44

main90564-37051iAXAA54,MXAA54..(M,X)..RUS201811-202210

T=2.47

main90564-37052iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.50

main90564-37053iMXAA54..JPP..LHD..6F;AXAA54,MXAA54..(ATM,CVT)..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.53

main90564-37054iAXAA54,MXAA54..(M,X)..RUS201811-202210

T=2.56

main90564-37055iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.59

main90564-37056iAXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=2.62

main90564-37057iAXAA54,MXAA54..(M,X)..RUS201811-202210

T=2.65

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-52180iMXAA54..JPP..LHD..6F;AXAA54,MXAA54..(ATM,CVT)..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.50

main41361-52190iAXAA54..M..EUR201811-202210

T=1.55

main41361-52200iAXAA54,MXAA54..(M,X)..RUS201811-202210

T=1.60

main41361-52210iMXAA54..6F..G..GEN201811-202210

T=1.65

main41361-52220iMXAA54..JPP..LHD..6F;AXAA54,MXAA54..(ATM,CVT)..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.70

main41361-52230iMXAA54..6F..G..GEN201811-202210

T=1.75

main41361-52240iMXAA54..6F..EUR;AXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.40

main41361-52250iAXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

T=1.45

41410DSEAL, OIL DIAPHRAGM

main90311-54006iAXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)201811-202210

41531PHOSE, REAR DIFFERENTIAL VACUUM

main90446-04014iMXAA54..6F..G..GEN201811-202310

NO.1

main90999-92002iAXAA54,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)201811-202310

NO.2

8202

8271542C10BRACKET,WIRING HARNESS CLAMP

main82715-42C10

9010508086

main90105-08086

9011005006

main90110-05006

9011608409

main90116-08409

9025008014

main90250-08014

9046607002

main90466-07002

9155180814

main91551-80814

35 parts on this diagram · 6 diagrams in section
