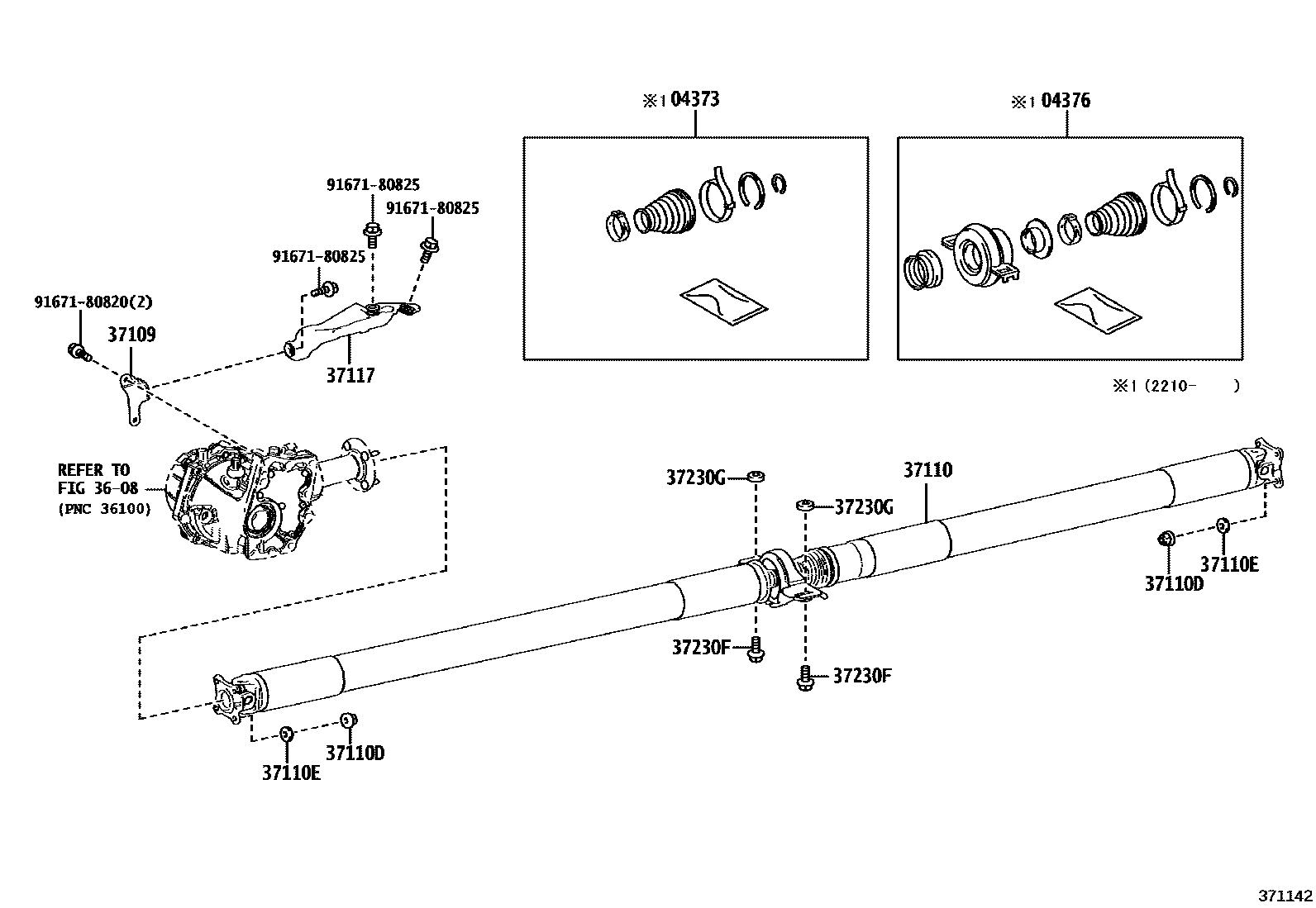

PROPELLER SHAFT & UNIVERSAL JOINT

04373BOOT KIT, UNIVERSAL

main04373-52010iMXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;MXAA54..JPP..(M,V,X);AXAA54..ARL,GCC,GEN,SA201811-202310

04376BEARING KIT, CENTER SUPPORT

main04376-52020iMXAA54..6F..G..GEN201811-202310

3608

37109BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR, NO.1

main37109-42010iAXAA54,MXAA54..RUS201811-202310

37110SHAFT ASSY, PROPELLER

main37100-42070iAXAA54,MXAA54..(M,X)..RUS201811-202310

main37100-42100iMXAA54..JPP..M..RUS;AXAA54,MXAA54..JPP..(G,V)..(ARL,GCC,GEN,RUS,SA)201811-202310

main37100-42110iMXAA54..6F..EUR202104-202210

main37100-42120iMXAA54..JPP..RUS202104-202310

37110DNUT (FOR PROPELLER SHAFT)

main90179-08197iAXAA54..LHD..V;AXAA54..(M,V,X)..ARL;MXAA54..JPP..CVT..(M,X);MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA)201811-202310

37110EWASHER (FOR PROPELLER SHAFT)

main90201-08097iMXAA54..6F..G..GEN201811-202310

37117INSULATOR, PROPELLER SHAFT HEAT

main37117-42010iMXAA54..6F..G..GEN201811-202310

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10444iMXAA54..6F..G..GEN201811-202310

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081iMXAA54..6F..G..GEN201811-202310

T=4.5

main90201-10083iMXAA54..EUR201811-202310

T=6.5

main90201-10123iAXAA54,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)201811-202310

T=2.0

9167180820

main91671-80820

9167180825

main91671-80825

12 parts on this diagram · 1 diagram in section
