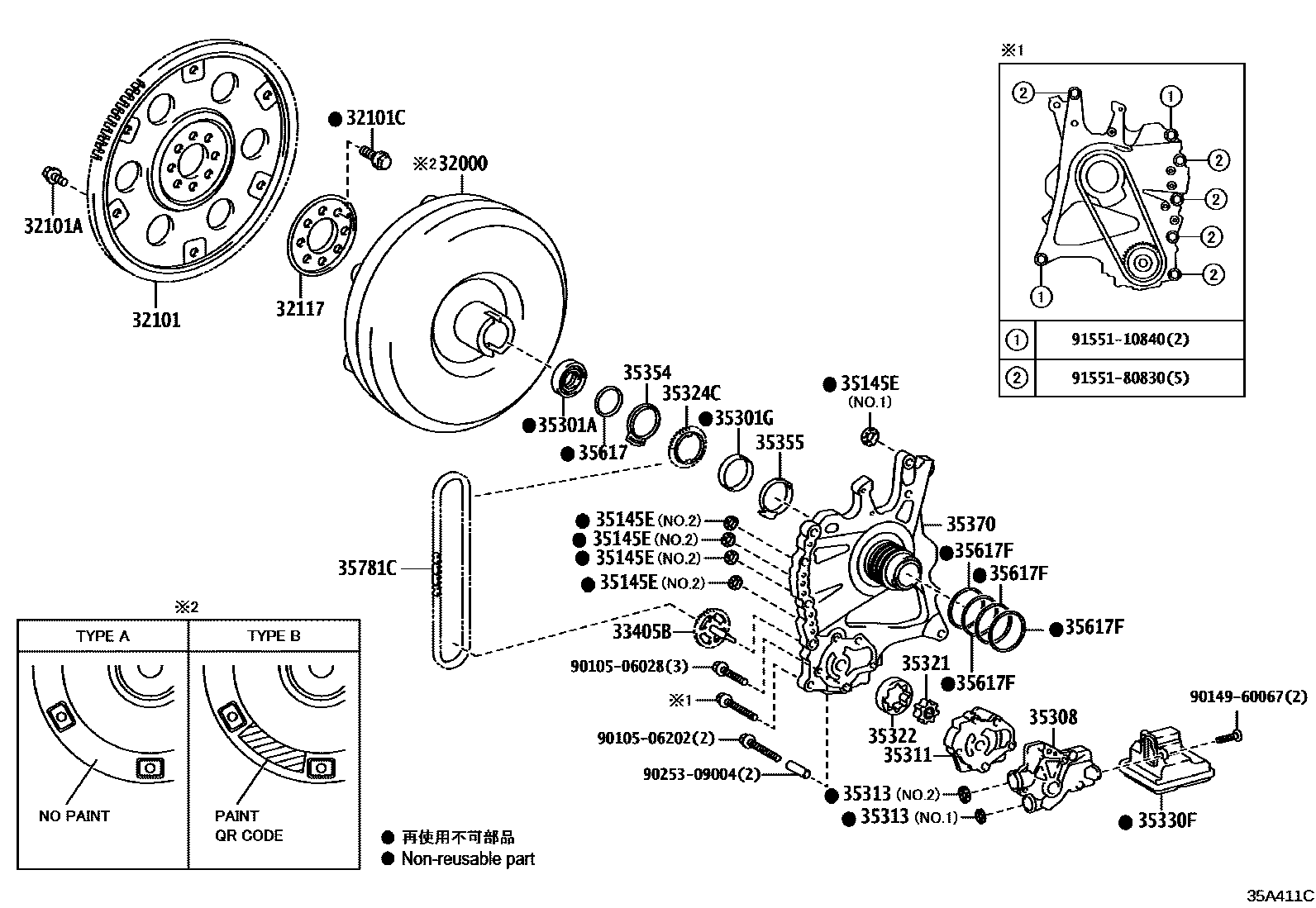

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1UB80E,UB80F W/O(IDLE STOP&ECO0002 1UB80E,UB80F W(IDLE STOP & ECO

32000CONVERTER ASSY, TORQUE

main32000-06060iAXAA5#..ARL,GCC,GEN,SA201903-202007

TYPE B:REFER ILLUST.

main32000-33180iAXAA54..RUS202008-202203

TYPE A:REFER ILLUST.

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-33020iAXAA54..EUR201811-202004

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iAXAA54..RUS201811-202009

*9-1.25PX12.4-7.3,BLACK

main90119-09025×5iAXAA54..RUS202008-202203

*9-1.25PX12.4-8.4,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404×8iAXAA54..RUS202008-202203

*12-1.25PX20.3-14.3

32117SPACER, DRIVE PLATE, REAR

main32117-33010iAXAA54..EUR201811-202004

33405BSHAFT SUB-ASSY, OIL PUMP DRIVE

main33405-48010iAXAA52..GCC;AXAA54..LHD..V;AXAA54..(M,V,X)..ARL;AXAA52..LHD..(G,M)..GEN;AXAA54..(G,M,X)..(GCC,GEN,SA)202008-202210

35145EGASKET, TRANSAXLE CASE

main35145-33010supersedes 35145-48030iAXAA5#..ARL,GCC,GEN,RUS,SA201811-202007

NO.1

main35145-33020iAXAA54..ARL202310

LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN,NO.1

main35145-33040×4iAXAA54..RUS202103-202203

NO.2

main35145-48030×4iAXAA5#..ARL,GCC,GEN,RUS,SA201811-202007

NO.2

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-51013iAXAA52..RHD;AXAA52..X..GEN;AXAA54..G..ARL;AXAA54..RHD..V..GEN202008-202111

35301GBEARING,NEEDLE ROLLER

main90364-51004iAXAA5#..JPP202210-202310

35308COVER SUB-ASSY, FRONT OIL PUMP

main35308-48110iAXAA5#..ARL,GCC,GEN,SA201811-202007

35311BODY, FRONT OIL PUMP

main35311-48040iAXAA5#..ARL,GCC,GEN,SA201811-202007

35313GASKET, FRONT OIL PUMP COVER

main35313-48020iAXAA54..EUR201811-202004

NO.1

main35313-48030iAXAA54..RUS202008-202203

NO.2

35321GEAR, FRONT OIL PUMP DRIVE

main35321-48110iAXAA54..EUR201811-202004

T=16.66

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-48110iAXAA54..EUR201811-202004

T=16.66

35324CSPROCKET, TRANSMISSION OIL PUMP DRIVE

main35324-48040iAXAA54..EUR201811-202004

35330FSTRAINER ASSY, OIL

main35330-48040iAXAA54..EUR201811-202004

35354WASHER, OIL PUMP SPROCKET THRUST, FRONT

main35354-48010iAXAA54..EUR201811-202004

35355WASHER, OIL PUMP SPROCKET THRUST, REAR

main35355-48010iAXAA54..EUR201811-202004

main35355-48011iAXAA52..RHD;AXAA52..X..GEN;AXAA54..G..ARL;AXAA54..RHD..V..GEN202012-202111

35370SHAFT ASSY, STATOR

main35370-33070iAXAA54..EUR201811-202004

35617RING, CLUTCH DRUM OIL SEAL

main35617-48050iAXAA54..EUR201811-202004

35617FRING, CLUTCH DRUM OIL SEAL

main35617-33020×4iAXAA54..EUR201811-202004

35781CCHAIN, TRANSMISSION DRIVE

main35781-48020iAXAA54..EUR201811-202004

9010506028

main90105-06028

9010506202

main90105-06202

9014960067

main90149-60067

9025309004

main90253-09004

9155110840

main91551-10840

9155180830

main91551-80830

28 parts on this diagram · 2 diagrams in section
