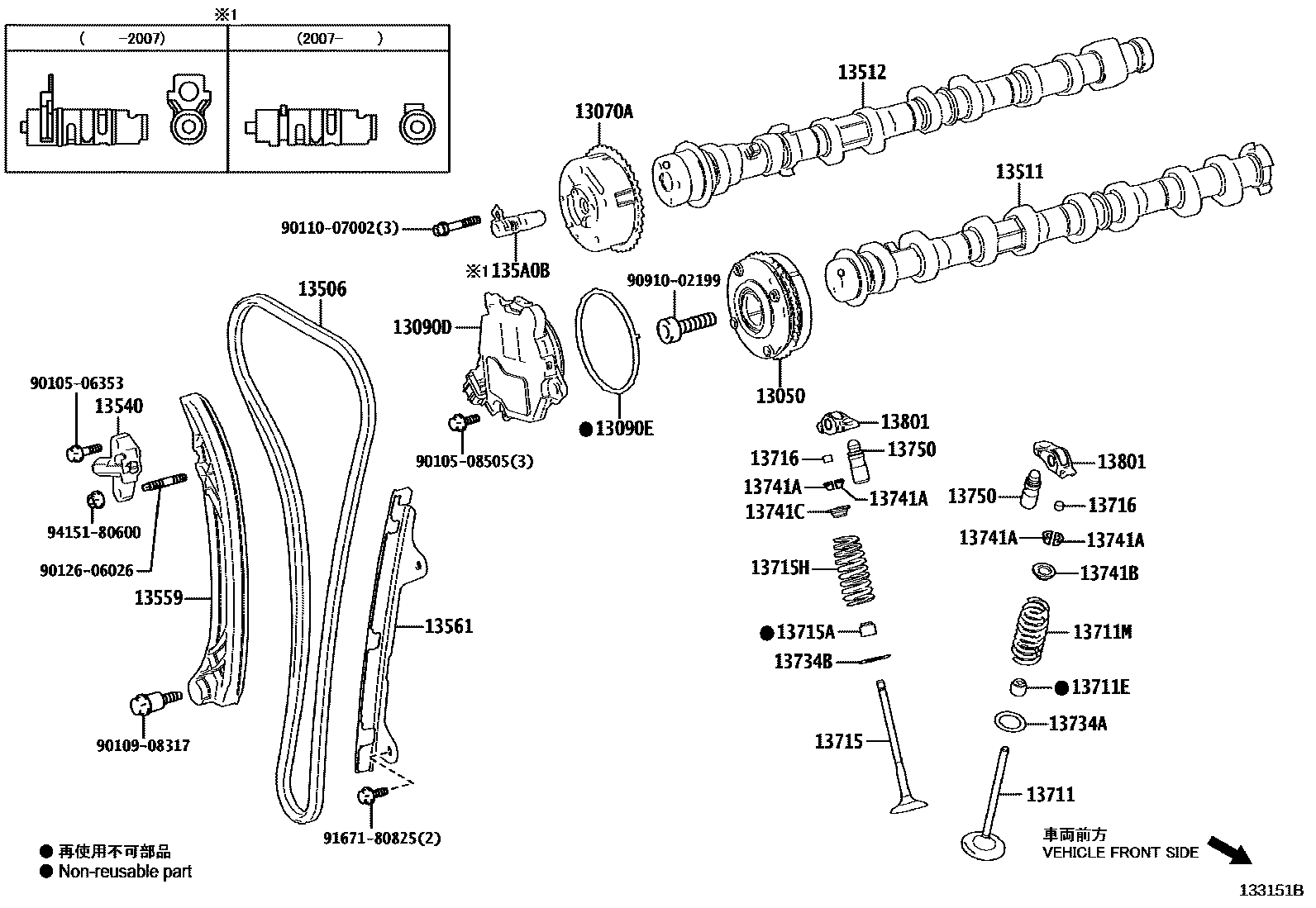

CAMSHAFT & VALVE

0001 1 0002 1

13050GEAR ASSY, CAMSHAFT TIMING

main13050-25010iM20AFKS..MXAA5#..RUS201811-202410

13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST

main13070-25020iA25AFXS..AXAH54..RUS201811-202007

REFER TO PNC 135A0B

main13070-25030iA25AFKS..AXAA54..RUS202007-202009

REFER TO PNC 135A0B

main13070-25030iM20AFKS..MXAA5#..RUS202008-202410

main13070-25030iM20AFKS..MXAA5#..RUS202112-202203

(J)

13090DMOTOR ASSY, CAM TIMING CONTROL W/EDU

main13090-25010iA25AFXS..AXAH54..RUS201811-202410

13090ERING, O(FOR CAM TIMING CONTROL MOTOR)

main90301-92005iA25AFXS..AXAH54..RUS201811-202410

13506CHAIN SUB-ASSY

main13506-24020iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-202310

main13506-25020iA25#..AXAA5#,AXAL5#..JPP;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR201811-202410

main13506-F2030iM20AFKS..MXAA5#..RUS201910-202203

13511CAMSHAFT

main13501-25010iA25AFKS..AXAA54..RUS201811-202310

main13501-25020iA25AFXS..AXAH5#,AXAL5#201811-202410

13512CAMSHAFT, NO.2

main13502-25010iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..LHD..V;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFKS..AXAA52..LHD..(G,M)..GEN;A25AFKS..AXAA54..(G,M,X)..(GCC,GEN,SA)201811-202310

main13502-25020iA25AFXS..AXAL5#;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR201811-202410

13540TENSIONER ASSY, CHAIN, NO.1

main13540-25020iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..LHD..V;A25AFXS..AXAH54..(G,P)..GEN;A25AFXS..AXAH54..LHD..M..GEN;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFXS..AXAL5#..(G,M,P,V)..EUR;201811-202410

main13540-F2020iM20AFKS..MXAA5#..RUS201910-202203

13559SLIPPER, CHAIN TENSIONER

main13559-24010iM20AFKS..MXAA54..EUR;M20AFKS..MXAA52..G..EUR;M20AFKS..MXAA52..(M,X)..(EUR,SA)201811-202310

main13559-25010iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..LHD..V;A25AFXS..AXAH54..(G,P)..GEN;A25AFXS..AXAH54..LHD..M..GEN;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFXS..AXAL5#..(G,M,P,V)..EUR;201811-202410

main13559-F2030iM20AFKS..MXAA5#..RUS201910-202203

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-15010iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)201908-202310

main13561-24020iM20AFKS..MXAA5#201811-201907

sub13561-15010

main13561-25020iA25#..AXAA5#,AXAH5#201811-201905

sub13561-25021

main13561-25021iA25AFKS..AXAA54..RUS201906-202410

main13561-F2030iM20AFKS..MXAA5#..RUS201910-201912

main13561-F3020iM20AFKS..MXAA5#..RUS202001-202203

135A0BVALVE ASSY, CAMSHAFT TIMING

main135A0-25010iA25AFXS..AXAH54..RUS201811-202007

main135A0-25020iM20AFKS..MXAA5#..RUS202007-202410

13711VALVE, INTAKE

main13711-24040iM20AFKS..MXAA54..(G,V)..GCC;M20AFKS..MXAA5#..RHD..6F..(ARL,GEN)201811-202310

main13711-24040iM20AFKS..MXAA5#..RUS202104-202203

(J)

main13711-25020iA25AFKS..AXAA54..RUS201811-202410

main13711-F2050iM20AFKS..MXAA5#..RUS201910-202104

main13711-F2050iM20AFKS..MXAA5#..RUS202104-202203

(L)

13711ESEAL, INTAKE VALVE STEM OIL

main90080-31061iM20AFKS..MXAA5#..RUS201910-202203

main90913-02101iA25AFXS..AXAH54..RUS201811-202410

13711MSPRING, COMPRESSION(FOR INTAKE VALVE)

main90501-31031iA25AFXS..AXAH54..RUS201811-202410

main90501-33034iM20AFKS..MXAA5#..RUS201811-202310

13715VALVE, EXHAUST

main13715-24040iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)201811-202310

main13715-24040iM20AFKS..MXAA5#..RUS202104-202203

(J)

main13715-25020iA25#..AXAA5#,AXAL5#..JPP;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR201811-202410

main13715-F2040iM20AFKS..MXAA5#..RUS202104-202201

(L)

main13715-F2040iM20AFKS..MXAA5#..RUS201910-202104

main13715-F3010iM20AFKS..MXAA5#..RUS202201-202203

(L)

13715ASEAL, EXHAUST VALVE STEM OIL

main90080-31062iM20AFKS..MXAA5#..RUS201910-202203

main90913-02112iA25AFXS..AXAH54..X..EUR;A25AFXS..AXAH54..RHD..EUR;A25AFXS..AXAH52..RHD..M..EUR201811-202410

13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)

main90501-32075iA25AFXS..AXAH54..RUS201811-202410

main90501-33035iA25AFKS..AXAA5#..ARL,GCC,GEN,SA201811-202310

13716CAP, VALVE STEM

main13716-25010iA25AFXS..AXAH54..RUS201811-202410

main13716-25010iM20AFKS..MXAA5#..RUS202106-202203

(J)

main13716-F2020iM20AFKS..MXAA5#..RUS202106-202203

(L)

13734ASEAT, INTAKE VALVE SPRING

main13734-62020iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)201811-202410

13734BSEAT, EXHAUST VALVE SPRING

main13734-62020iM20AFKS..MXAA5#..RUS201811-202410

13741ALOCK, VALVE SPRING RETAINER

main90913-03028iA25AFXS..AXAH54..RUS201811-202410

13741BRETAINER, INTAKE VALVE SPRING

main13741-36010iA25AFXS..AXAH54..RUS201811-202410

13741CRETAINER, EXHAUST VALVE SPRING

main13741-36010iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)201811-202410

13750ADJUSTER ASSY, VALVE LASH

main13750-25010iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)201811-202410

main13750-F2050iM20AFKS..MXAA5#..RUS201910-202203

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-25010iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)201811-202410

main13801-F2050iM20AFKS..MXAA5#..RUS201910-202203

9010506353

main90105-06353

9010508505

main90105-08505

9010908317

main90109-08317

9011007002

main90110-07002

9012606026

main90126-06026

9091002199

main90910-02199

9167180825

main91671-80825

9415180600

main94151-80600

33 parts on this diagram · 2 diagrams in section
