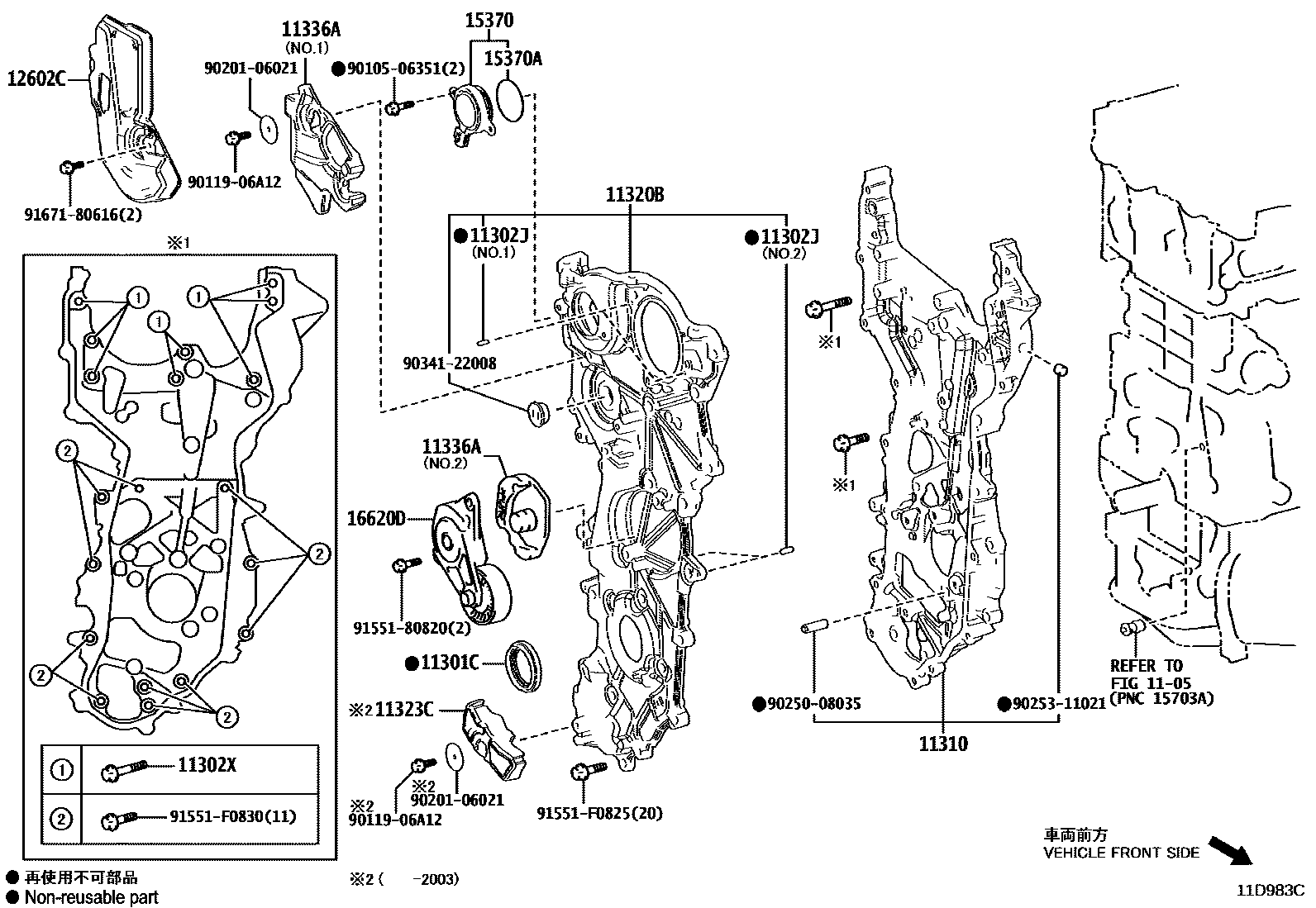

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

1105

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40044iA25AFXS..AXAH52..M,X;A25AFXS..AXAH52..LHD..G..GEN;A25AFXS..AXAH52..G..(ARL,EUR);A25AFKS..AXAA5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54,AXAL5#..ARL,EUR,GCC,GEN201811-202007

main90311-W0021iM20AFKS..MXAA5#..RUS201910-202009

11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)

main90250-04097×2iA25AFXS..AXAH52..M,X;A25AFXS..AXAH52..LHD..G..GEN;A25AFXS..AXAH52..G..(ARL,EUR);A25AFKS..AXAA5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54,AXAL5#..ARL,EUR,GCC,GEN201811-202007

NO.1:REFER ILLUST.

main90250-06003×2iA25#..AXAA5#,AXAH5#,AXAL5#..JPP202210-202310

NO.2:REFER ILLUST.

11302XBOLT, FLANGE

main91551-F0845×8iA25AFKS..AXAA54..EUR;A25AFXS..AXAH52..RHD..G..GEN201811-202004

11310COVER ASSY, TIMING CHAIN

main11310-24010iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202310

main11310-25030iA25AFKS..AXAA54..RUS202008-202203

main11310-F2030iM20AFKS..MXAA5#..RUS202010-202203

11320BCOVER ASSY, TIMING CHAIN, NO.2

main11320-24010iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS.202008-202210

main11320-25010iA25AFKS..AXAA5#201811-202003

main11320-25011iA25#..AXAA5#,AXAL5#..JPP;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR202310

main11320-F2030iM20AFKS..MXAA5#..RUS202010-202203

11323CCOVER, TIMING CHAIN, NO.3

main11323-25010iA25AFKS..AXAA5#201811-202003

11336AINSULATOR, TIMING GEAR COVER

main11336-25010iA25AFKS..AXAA54..RUS201811-202009

NO.1:REFER ILLUST.

main11339-25010iA25AFKS..AXAA52..RHD;A25AFKS..AXAA52..X..GEN;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA54..RHD..V..GEN202008-202111

NO.2:REFER ILLUST.

12602CCOVER, ENGINE, NO.2

main12612-25010iA25AFKS..AXAA54..RUS201811-202009

15370SOLENOID ASSY, CAM TIMING OIL CONTROL

main15370-25020iA25AFKS..AXAA54..RUS201811-202009

15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)

main90301-44006iA25AFKS..AXAA54..EUR;A25AFXS..AXAH52..RHD..G..GEN201811-202004

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-24010iM20AFKS..MXAA52..JPP..6F..X;M20AFKS..MXAA52..6F..M..GEN;M20AFKS..MXAA54..6F..G..EUR;M20AFKS..MXAA54..JPP..CVT..G;M20AFKS..MXAA52..CVT..X..EUR;M20AFKS..MXAA54..JPP..201811-202007

main16620-24020iM20AFKS..MXAA5#..LHD..EUR201811-202007

IRAN SPEC

main16620-24021supersedes 16620-24021iM20AFKS..MXAA52..RHD..EUR202106-202210

main16620-24030iM20AFKS..MXAA52..X..SA202210

SINGAPOLE SPEC

main16620-24040iM20AFKS..MXAA5#..EUR202210

main16620-25010iA25AFKS..AXAA5#..GEN,RUS,SA201811-202006

main16620-25011supersedes 16620-25021iA25AFKS..AXAA52..RHD;A25AFKS..AXAA52..X..GEN;A25AFKS..AXAA54..RHD..V..GEN202008-202111

OCEANIA OTHERS SPEC

main16620-25020supersedes 16620-25010iA25AFKS..AXAA5#..RHD..GEN201901-202006

ZAMBIA,KENYA,UGANDA,TANZANIA,ZIMBABWE

main16620-25021iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..G..GCC;A25AFKS..AXAA54..(M,V,X)..(ARL,GCC)202008-202210

9010506351

main90105-06351

9011906A12

main90119-06A12

9020106021

main90201-06021

9025008035

main90250-08035

9025311021

main90253-11021

9034122008

main90341-22008

9155180820

main91551-80820

91551F0825

main91551-F0825

91551F0830

main91551-F0830

9167180616

main91671-80616

22 parts on this diagram · 3 diagrams in section
