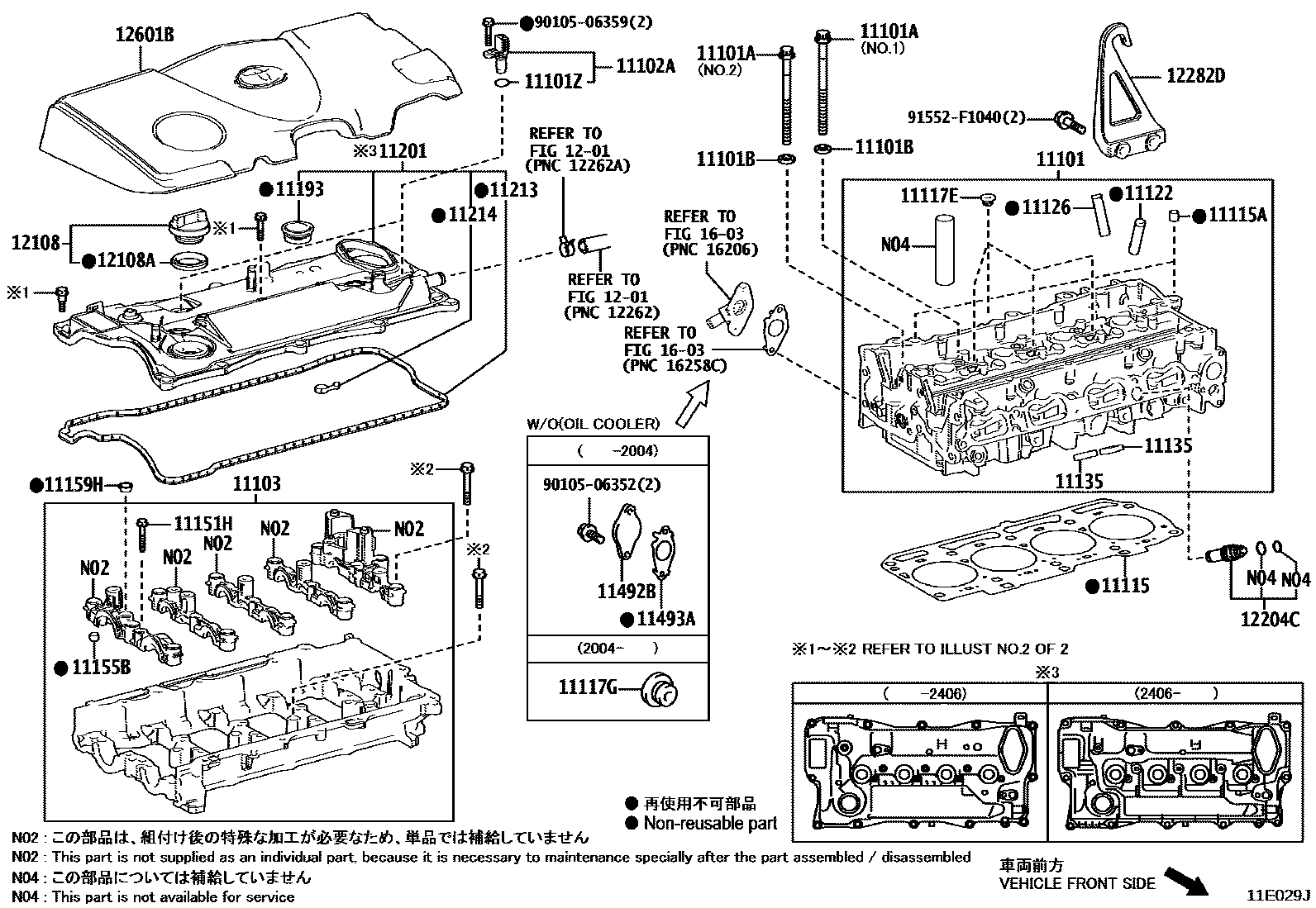

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1

11101HEAD SUB-ASSY, CYLINDER

main11101-29625iA25#..AXAA5#,AXAH52;A25AFXS..AXAH54..ARL,EUR,GCC,GEN¥134,000201811-202004

sub11101-29626¥112,000

main11101-29626iA25#..AXAA5#,AXAH5#,AXAL5#..JPP¥112,000202004-202105

sub11101-29627¥101,000

main11101-29627iA25AFXS..AXAL5#..ARL;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA52..X..GEN;A25AFXS..AXAH54..RHD..M..GEN;A25AFKS..AXAA54..RHD..V..GEN;A25#..AXAA52,AXAH52..RHD..GEN;A25AFXS¥101,000202105-202405

main11101-29627iA25AFXS..AXAH54..X..EUR;A25AFXS..AXAH54..RHD..EUR;A25AFXS..AXAH52..RHD..M..EUR¥101,000202405-202410

(J)

main11101-29635iM20AFKS..MXAA5#..6F..G..(GEN,SA)¥96,900201811-202211

sub11101-29636¥97,000

main11101-29636iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)¥97,000202212-202410

main11101-29637iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)¥88,100202410

main11101-F9050iM20AFKS..MXAA5#..RUS201910-202203

main11101-F9130iA25#..AXAA5#,AXAL5#..JPP;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR202405-202410

(L)

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02201iA25AFKS..AXAA54..EUR;A25AFXS..AXAH52..RHD..G..GEN¥360201811-202410

NO.1:REFER ILLUST.

main90910-02202iA25AFKS..AXAA54..RUS¥310201811-202410

NO.2:REFER ILLUST.

main90910-02202iA25AFKS..AXAA54..RUS¥310201811-202310

NO.1:REFER ILLUST.

main90910-02205iM20AFKS..MXAA5#..RUS¥240201811-202310

NO.2:REFER ILLUST.

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-12079iA25AFKS..AXAA54..RUS¥100201811-202410

11101ZO RING, CAM POSITION SENSOR

main90301-11038iM20AFKS..MXAA5#..6F..G..(GEN,SA)¥0201811-202410

11102ASENSOR, CAMSHAFT POSITION

main90919-05096iA25#..AXAA5#,AXAH5#,AXAL5#..JPP¥4,130201811-202410

11103HOUSING SUB-ASSY, CAMSHAFT

main11103-24010iM20AFKS..MXAA5#¥31,700201811-201812

sub11103-24011¥23,900

main11103-24011iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS.¥23,900201901-202210

main11103-25010iA25AFKS..AXAA5#201811-201902

sub11103-25011

main11103-25011iA25AFKS..AXAA5#..ARL,GCC,GEN,SA201903-202009

sub11103-25080

sub25625-25030¥2,970

main11103-25020iA25AFXS..AXAH54¥31,500201811-201903

sub11103-25021¥31,500

main11103-25021iA25AFXS..AXAH52..RHD..G..GEN¥31,500201903-202007

sub11103-25090¥23,900

sub25625-25030¥2,970

main11103-25080iA25AFKS..AXAA52..RHD;A25AFKS..AXAA52..X..GEN;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA54..RHD..V..GEN202008-202310

main11103-25090iA25AFXS..AXAL5#;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR¥23,900202008-202410

main11103-F2031iM20AFKS..MXAA5#..RUS201910-202203

11115GASKET, CYLINDER HEAD

main11115-24040iM20AFKS..MXAA5#..6F..G..(GEN,SA)¥4,380201811-202310

main11115-25050iA25#..AXAA5#,AXAH5#,AXAL5#..JPP¥5,800201811-202410

11115APIN, RING

main90253-12002iA25#..AXAA5#,AXAH5#,AXAL5#..JPP¥50201811-202410

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-14015iA25AFXS..AXAH54..RUS¥120201811-202310

main90341-14015iA25AFXS..AXAH54..X..EUR;A25AFXS..AXAH54..RHD..EUR;A25AFXS..AXAH52..RHD..M..EUR¥120202310-202410

(J)

main90341-C0012iA25AFXS..AXAH54..X..EUR;A25AFXS..AXAH54..RHD..EUR;A25AFXS..AXAH52..RHD..M..EUR202405-202410

(L)

11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3

main90341-24006iA25AFXS..AXAH5#..GEN¥230202210-202310

EGYPT SPEC

main90341-24006iA25#..AXAA5#,AXAH5#..GEN¥230202004-202210

main90341-24006iA25AFXS..AXAH5#..GEN¥230202210-202310

CHILE SPEC

main90341-24006iA25AFXS..AXAH5#..GEN¥230202210-202310

PANAMA SPEC

11122BUSH, INTAKE VALVE GUIDE

main11122-31070iA25#..AXAA5#,AXAH5#¥610201811-201907

STD

main11122-31090iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..LHD..V;A25AFXS..AXAH54..(G,P)..GEN;A25AFXS..AXAH54..LHD..M..GEN;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFXS..AXAL5#..(G,M,P,V)..EUR;¥550201907-202410

STD

main11123-31070iA25#..AXAA5#,AXAH5#¥620201811-201907

O/S 0.05

sub11123-31090¥550

main11123-31090iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)¥550201907-202410

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-31041iA25AFXS..AXAH54..X..EUR;A25AFXS..AXAH54..RHD..EUR;A25AFXS..AXAH52..RHD..M..EUR¥610201811-202410

STD

sub11122-47010¥550

main11122-47010iM20AFKS..MXAA5#..RUS¥550201910-202203

STD

main11123-31041iM20AFKS..MXAA54..(G,V)..GCC;M20AFKS..MXAA5#..RHD..6F..(ARL,GEN)¥620201811-202401

O/S 0.05

sub11123-47010¥550

main11123-47010iM20AFKS..MXAA5#..RUS¥550201910-202410

O/S 0.05

11135SEAT, EXHAUST VALVE

main11135-24020iM20AFKS..MXAA54..(G,V)..GCC;M20AFKS..MXAA5#..RHD..6F..(ARL,GEN)¥490201811-202209

STD

main11135-25020iA25#..AXAA5#,AXAH5#,AXAL5#..JPP¥760201811-202410

STD

main11135-F2020iM20AFKS..MXAA5#..RUS201910-202203

STD

main11136-25020iA25#..AXAA5#,AXAH5#,AXAL5#..JPP¥760201811-202410

O/S 0.03

11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)

main90119-07009iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA5#..6F..G..EUR;M20AFKS..MXAA54..JPP..CVT..G;M20AFKS..MXAA54..JPP..(M,V,X);M20AFKS..MXAA52..JPP..6F..(M,X)¥90201811-202410

11155BPIN, RING

main90253-13005iA25AFXS..AXAH52..M,X;A25AFXS..AXAH52..LHD..G..GEN;A25AFXS..AXAH52..G..(ARL,EUR);A25AFKS..AXAA5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54,AXAL5#..ARL,EUR,GCC,GEN¥50201811-202410

11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE

main11159-31040iM20AFKS..MXAA5#..6F..G..(GEN,SA)¥340201811-202410

11193GASKET, SPARK PLUG TUBE

main11193-37030iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS.¥230201811-202410

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-24031iM20AFKS..MXAA5#..6F..G..(GEN,SA)¥13,900201811-202111

sub11201-24032¥12,600

main11201-24032iM20AFKS..MXAA52..GCC¥12,600202103-202310

main11201-25032iA25AFXS..AXAH52..M,X;A25AFXS..AXAH52..LHD..G..GEN;A25AFXS..AXAH52..G..(ARL,EUR);A25AFXS..AXAH54..ARL,EUR,GCC,GEN;A25AFKS..AXAA5#..ARL,GCC,GEN,RUS,SA¥11,800201811-202006

sub11201-25033¥8,800

main11201-25033iA25AFKS..AXAA54..RUS¥8,800202006-202406

main11201-25090iA25AFXS..AXAH54..X..EUR;A25AFXS..AXAH54..RHD..EUR;A25AFXS..AXAH52..RHD..M..EUR¥8,800202406-202410

11213GASKET, CYLINDER HEAD COVER

main11213-24020iM20AFKS..MXAA54..EUR;M20AFKS..MXAA52..G..EUR;M20AFKS..MXAA52..(M,X)..(EUR,SA)¥700201811-202310

main11213-25020iA25AFXS..AXAH52..M,X;A25AFXS..AXAH52..LHD..G..GEN;A25AFXS..AXAH52..G..(ARL,EUR);A25AFKS..AXAA5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54,AXAL5#..ARL,EUR,GCC,GEN¥700201811-202410

11214GASKET, CYLINDER HEAD COVER, NO.2

main11213-31080iA25AFKS..AXAA54..RUS¥370201811-202410

11492BPLATE, WATER SEAL

main11492-25010iA25#..AXAA5#,AXAH5#..GEN¥980201811-202004

11493AGASKET, WATER SEAL PLATE

main16258-25010iA25#..AXAA5#,AXAH5#..GEN¥270201811-202004

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-38010iA25AFXS..AXAH54..RUS¥640201811-202410

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001iA25AFXS..AXAH54..RUS¥120201811-202410

12204CVALVE SUB-ASSY, VENTILATION

main12204-25010iA25#..AXAA5#,AXAL5#..JPP;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR¥800201811-202410

main12204-25010iM20AFKS..MXAA5#..RUS¥800202106-202203

(J)

main12204-F2020iM20AFKS..MXAA5#..RUS202106-202203

(L)

12282DHANGER, ENGINE, NO.2

main12282-25010iM20AFKS..MXAA5#..RUS¥4,190201811-202410

12601BCOVER SUB-ASSY, ENGINE, NO.1

main12601-24011iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS.¥12,400201811-202310

main12601-25090iA25AFKS..AXAA54..LHD..(GCC,GEN);A25#..AXAA52,AXAH5#,AXAL5#..LHD..(EUR,GCC,GEN)201811-202410

main12601-25100iA25AFXS..AXAL5#..ARL;A25AFKS..AXAA54..G..ARL;A25AFXS..AXAH54..RHD..M..GEN;A25AFKS..AXAA54..RHD..V..GEN;A25#..AXAA52,AXAH52..RHD..GEN;A25AFXS..AXAH5#,AXAL5#..RHD..X.¥8,500201811-202410

1603

9010506352

main90105-06352¥60

9010506359

main90105-06359¥60

91552F1040

main91552-F1040¥120

32 parts on this diagram · 4 diagrams in section
