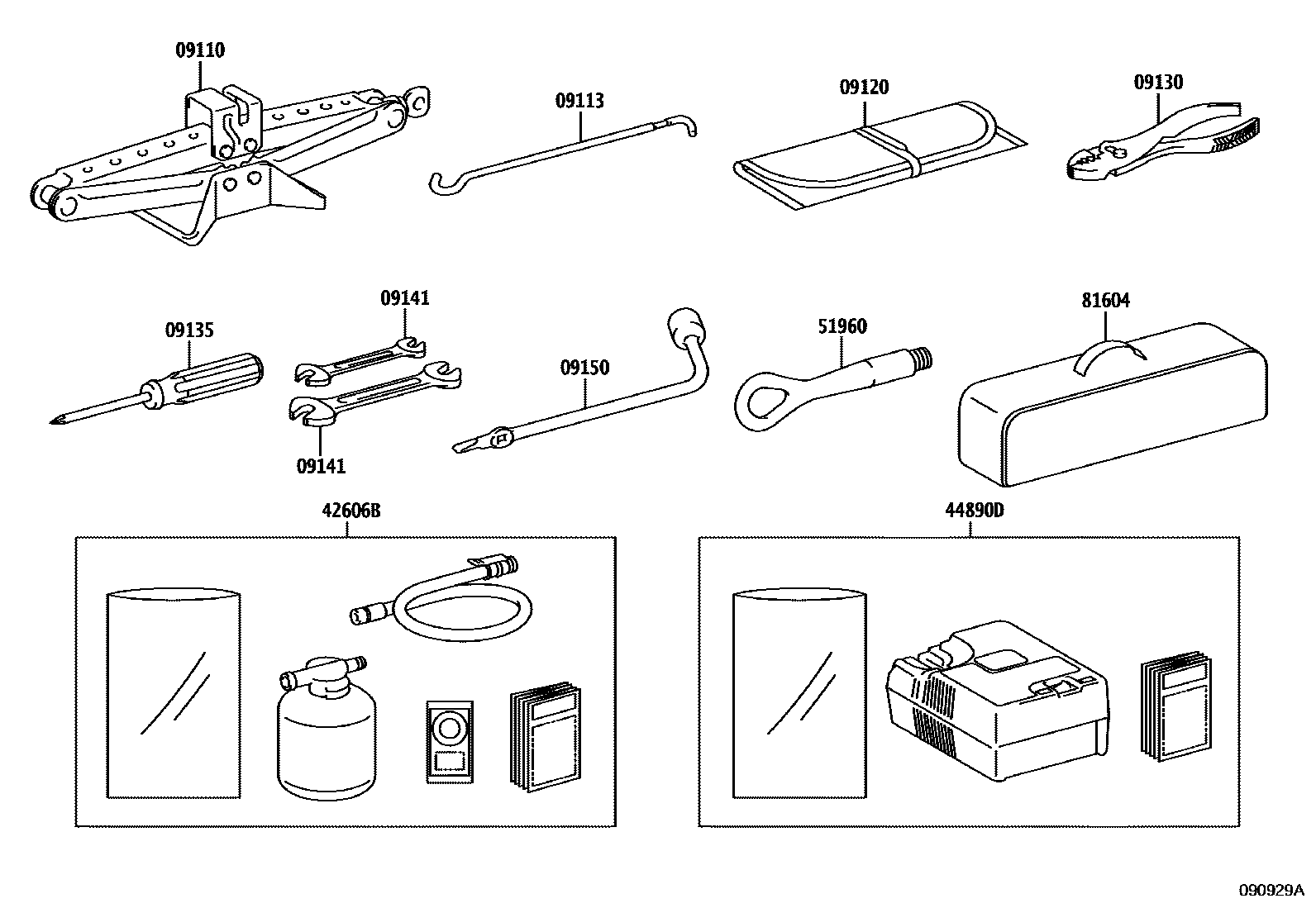

STANDARD TOOL

0001 1 0002 1 0003 1

09110JACK ASSY

main09110-42100iAXAA54,AXAH5#,MXAA52..ARL201901-202310

main09111-42050iAXAA54,MXAA5#..RUS¥7,900201811-202109

sub09111-42051¥7,900

main09111-42050iAXAH52..G..EUR;AXAA5#..GCC,GEN,SA;MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;MXAA52..6F..(M,X)..(EUR,GEN,SA);AXAH52,MXAA54..(M,V,X)..(EUR,GCC,GEN,SA¥7,900201811-202007

JACK-WITHOUT

sub09111-42051¥7,900

main09111-42050iAXAA5#,AXAH5#,AXAL5#,MXAA5#..EUR,GCC,GEN,SA¥7,900202008-202108

JACK-WITHOUT&SPARE TIRE-REPAIR KIT

sub09111-42051¥7,900

main09111-42051iAXAH52..LHD..M;MXAA52..X..(GCC,GEN);MXAA52..(G,M)..(GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAA5#,AXAL5#..EUR,GCC,GEN,SA;AXAH52..(G,P,X)..(EUR,GCC,GEN);AXAH54,MXAA54..¥7,900202109-202210

JACK-WITHOUT&SPARE TIRE-REPAIR KIT

main09111-42051iAXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAH54..RHD..M..GEN;AXAA54..RHD..V..GEN;MXAA5#..RHD..6F..GEN;AXAA52,AXAH52..RHD..GEN;AXAH5#,AXAL5#..RHD..X..EUR¥7,900202109-202410

09113HANDLE, JACK

main09113-42030iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥550201811-202410

main09113-42030iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥550201811-202007

JACK-WITHOUT

main09113-42030iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥550201811-202210

JACK-WITHOUT&SPARE TIRE-REPAIR KIT

09120BAG, TOOL

main09120-10040iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥600201811-202007

JACK-WITHOUT

main09120-10040iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥600201811-202410

main09120-10040iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥600201811-202210

JACK-WITHOUT&SPARE TIRE-REPAIR KIT

09130PLIERS

main99913-11500iAXAA52..GCC;AXAA52..LHD..(G,M)..GEN;MXAA54..LHD..(G,V)..GEN;MXAA54..LHD..(M,X)..(GCC,GEN);AXAA54,AXAH5#,MXAA52..LHD..(GCC,GEN)¥400201811-202310

09135DRIVER, SCREW

main99915-10700iAXAA5#,AXAH5#,MXAA5#..LHD..(GCC,GEN)¥460201811-202310

09141SPANNER

main99914-10810iMXAA54..6F..G..GEN¥240201811-202310

8 X 10

main99914-11214iAXAA5#,AXAH5#,MXAA5#..LHD..(GCC,GEN)¥400201811-202310

12 X 14

09150WRENCH, HUB NUT BOX

main09150-42010iAXAA54,MXAA5#..RUS¥1,150201811-202410

main09150-42010iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥1,150201811-202007

JACK-WITHOUT

main09150-42010iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA¥1,150201811-202210

JACK-WITHOUT&SPARE TIRE-REPAIR KIT

42606BREPAIR KIT, TUBELESS TIRE

44890DCOMPRESSOR ASSY, AIR

51960HOOK ASSY, FRONT

main51961-42060iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)¥1,860201811-202410

81604REFLECTOR SET, TRIANGLE

main81604-YY010

main81604-YY040

11 parts on this diagram · 3 diagrams in section
