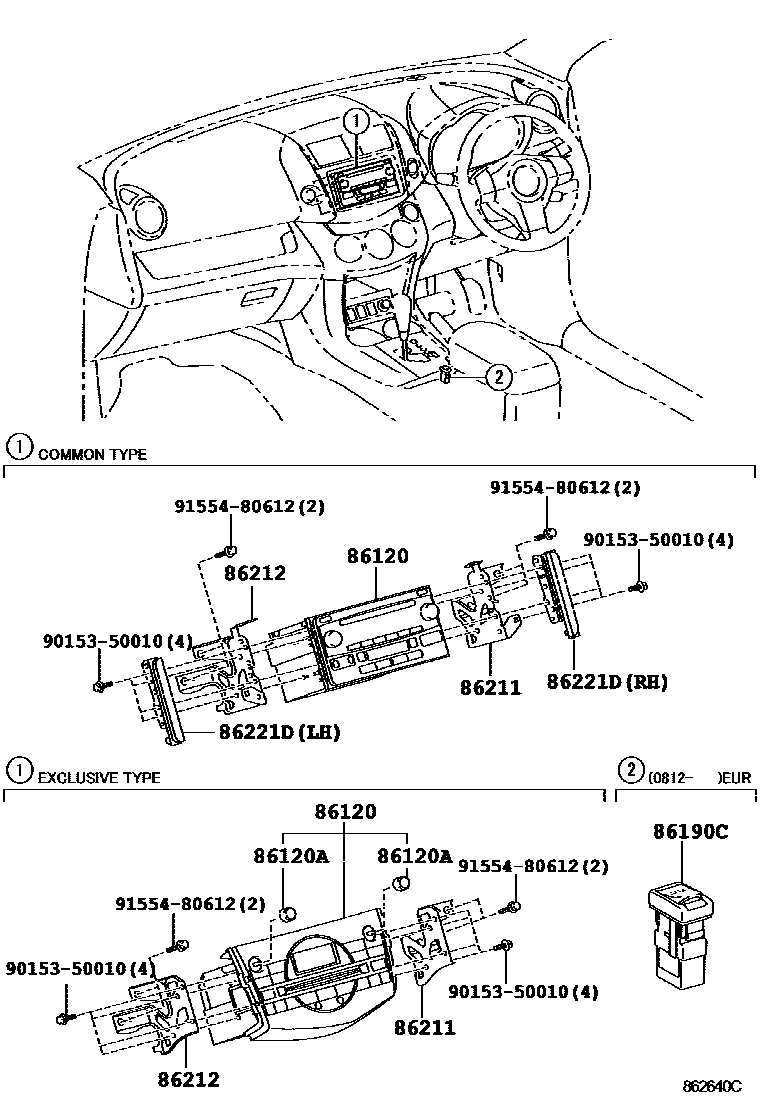

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-42220iACA30,31,ALA30..G200511-200805

MATSUSHITA, ID=58827

sub86120-42221

main86120-42221iACA30,ALA30..G200806-200812

MATSUSHITA, ID=58827

main86120-42280iACA30,ALA3#,ZSA3#..G200812-201212

MATSUSHITA, ID=53831,AUDIO-HDD-NAVIGATION,CD,BLUETOOTH,UNIQUE-PANEL

main86120-52560iACA33..X..(ARL,GCC)200511-200808

FUJITSU TEN,ID=17421,SAUDI ARABIA SPEC

86120AKNOB, RADIO RECEIVER SWITCH

main90010-24125iACA30,ALA30200511-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main90010-24135iALA3#,ZSA3#..G200812-201212

AUDIO-DVD-NAVIGATION,CD,BLUETOOTH,MULTI-PANEL

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-42010iACA30,ALA3#,ZSA3#200812-201212

AUDIO-RADIO LESS

86211BRACKET, RADIO, NO.1

main86211-42050iACA30,ALA30200511-200812

AUDIO-RADIO LESS

main86211-42050iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201112

main86211-42060iACA30,33,ALA3#,ZSA3#..EUR200511-201212

main86211-42090iACA33,38,GSA33..ARL,GCC,GEN201112-201212

AUDIO-EURO-LESSPACK(DA-AFTER)

86212BRACKET, RADIO, NO.2

main86212-42050iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201112

main86212-42050iACA30,ALA30200511-200812

AUDIO-RADIO LESS

main86212-42060iACA30,31,ALA30200511-201212

main86212-42090iACA33,38,GSA33..ARL,GCC,GEN201112-201212

AUDIO-EURO-LESSPACK(DA-AFTER)

86221DPANEL, RADIO RECEIVER

main86221-52050iACA33..4FC..G..ARL200511-200808

NEW ZEALAND SPEC,LH

main86221-52050iGSA33;ACA33,38..GEN200808-201212

LH

main86221-52060iGSA33;ACA33,38..GEN200808-201212

RH

main86221-52060iACA33..4FC..G..ARL200511-200808

SINGAPORE SPEC,RH

9015350010

main90153-50010

9155480612

main91554-80612

8 parts on this diagram · 3 diagrams in section
