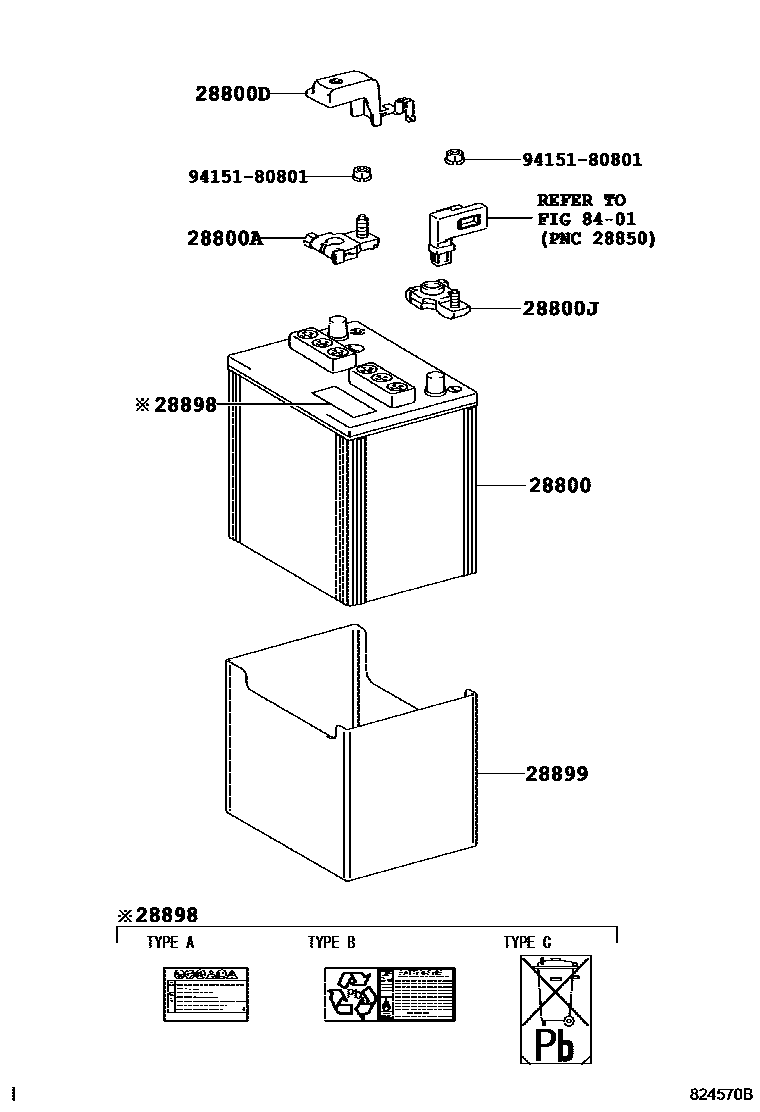

BATTERY & BATTERY CABLE

0001 1 0002 1

28800BATTERY

main28800-17121i2GRFE..GSA33200701-201204

80D26L,FURUKAWA

sub28800-38080

main28800-26120i2AD#..ALA30200511-200609

115D31L

sub28800-26903

main28800-26140i2AD#..ALA3#200812-201204

115D31L,FURUKAWA

sub28800-26902

main28800-26140i2AD#..ALA30200610-200812

115D31L

sub28800-26902

main28800-26902i2AD#..ALA3#201204-201212

115D31L,FURUKAWA

main28800-28210i2GRFE..GSA33;2AZFE..ACA33..EUR201204-201212

80D26L,FURUKAWA

sub28800-28211

main28800-42041i2AZFE..ACA33..ARL,GCC,GEN;1AZFE,2AZFE,3ZRFAE..ACA30,38,ZSA3#200808-201212

55D23L,YUASA

sub28800-31260

main28800-42042i1AZFE,2AZFE..ACA30,33,38200511-200708

55D23L,YUASA

sub28800-42041

main28800-42061i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201204

55D23L,FURUKAWA

sub28800-42062

main28800-42062i2AZFE..ACA33..ARL,GCC,GEN;1AZFE,2AZFE,3ZRFAE..ACA30,38,ZSA3#201205-201212

55D23L,FURUKAWA

sub28800-42063

main28800-54020i2GRFE..GSA33;2AZFE..ACA33..EUR200808-201212

80D26L,YUASA

sub28800-67102

main28800-64132i2AZFE..ACA31200701-200707

80D26L,YUASA

sub28800-54020

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1AZFE,2AZFE,2AD#,2GRFE..ACA30,33,38,ALA3#,GSA33200511-200910

main90982-05061i1AZFE,2AZFE,2AD#,2GRFE..ACA3#,ALA3#,GSA33200911-201212

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-42070i3ZRFAE..ZSA3#200812-201212

main82821-48020i2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN200511-201212

28800JTERMINAL, BATTERY NEGATIVE

main90982-06056i3ZRFAE..ZSA3#200812-201212

main90982-06070i2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30200511-201212

28898PLATE, BATTERY

main28898-46020i1AZFE,2AZFE,2AD#..ACA30,31,ALA30200511-201212

TYPE C:REFER ILLUST.

28899INSULATOR, BATTERY

main28899-26030i2AD#..ALA3#200511-201212

main28899-28020i1AZFE..ACA30;2AZFE..ACA33..G..GCC200511-201212

main28899-28030i2AZFE..ACA33..EUR200701-201212

main28899-31040i2GRFE..GSA33200708-201212

8401

9415180801

main94151-80801

8 parts on this diagram · 2 diagrams in section
