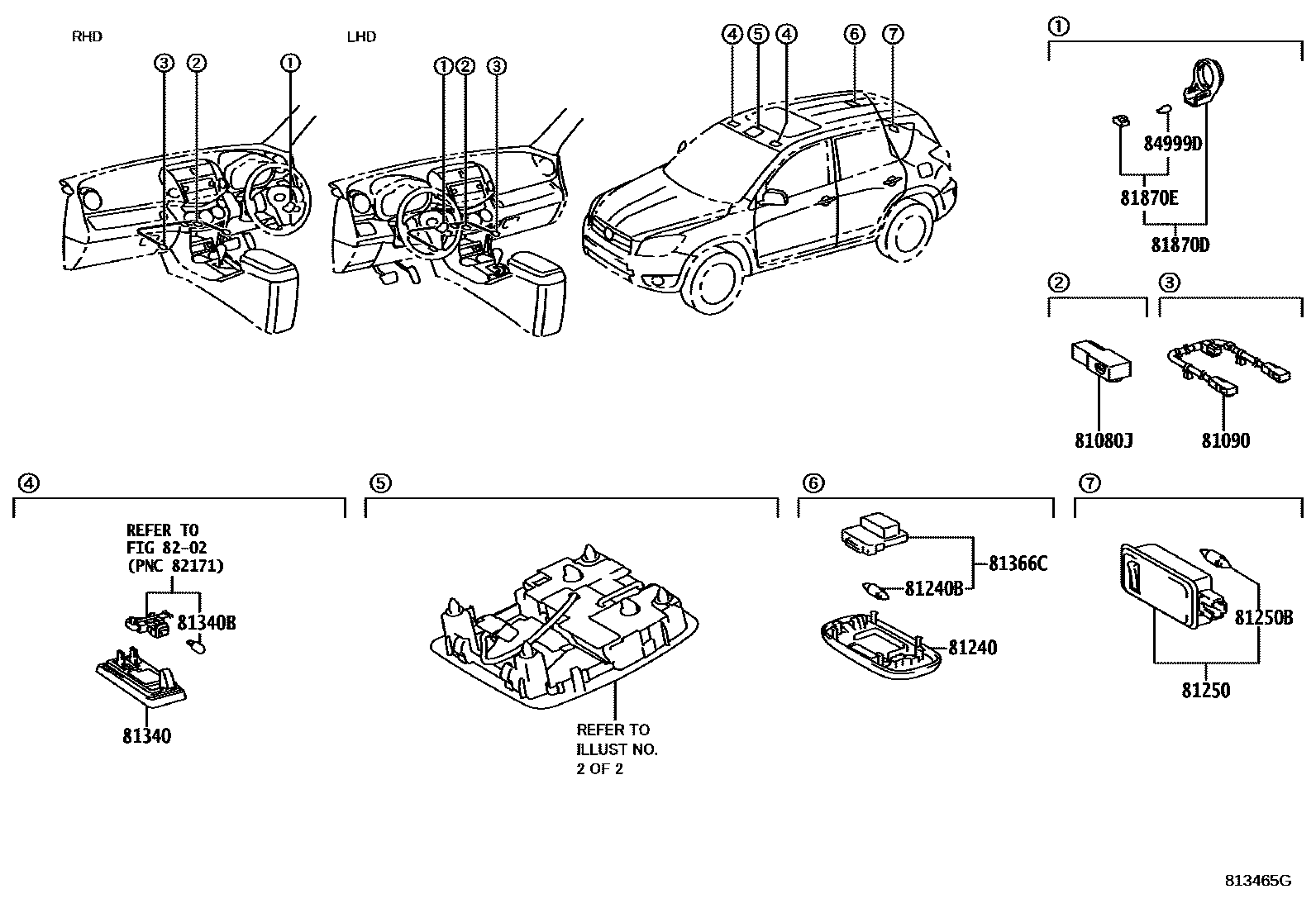

INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-42010iACA33..G..GCC;ACA30,31,ALA30200511-201212

sub81080-B2060

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81090-42010iACA33,38,GSA33..G..(ARL,GEN)200511-201212

main81090-42010iACA30,31,33,ALA30..G..(EUR,GCC)200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

81240LAMP ASSY, ROOM, NO.1

main81240-52040-A0iACA33,38..LHD;ACA30,31,ALA30..G200511-200812

IVORY,TRIM4#

main81240-52040-B0iACA3#,ALA30,GSA33200511-201212

GRAY,TRIM1#

main81240-52040-E2iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201212

SAND BEIGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-48010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

81250BBULB, ROOM LAMP, NO.2

main99132-13050iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

12V 5W

81340LAMP ASSY, VANITY

main81340-30100-A1iACA33,38;ACA30,31,ALA30..G200511-200812

IVORY,TRIM4#

main81340-30100-B1iACA3#,ALA30,GSA33200511-201201

GRAY,TRIM1#

main81340-30100-E2iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201201

SAND BEIGE,TRIM4#

main81340-30110iACA3#,ALA3#,GSA33,ZSA3#201202-201212

81340BBULB (FOR VANITY LAMP)

main90981-11062iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

12V 8W

81366CBASE, ROOM LAMP SWITCH

main81366-68010iACA3#,ALA30,GSA33200511-201212

81870DLAMP ASSY, KEY CYLINDER

main81870-42020iACA33,38..X..GEN200511-201212

81870EBULB, KEY CYLINDER LAMP

main90010-01030iACA33,38..X..GEN200511-201212

14V1.4W,W/ORANGE CAP

8202

84999DSOCKET, KEY CYLINDER LAMP

main84999-10250iACA33,38..X..GEN200511-201212

13 parts on this diagram · 2 diagrams in section
