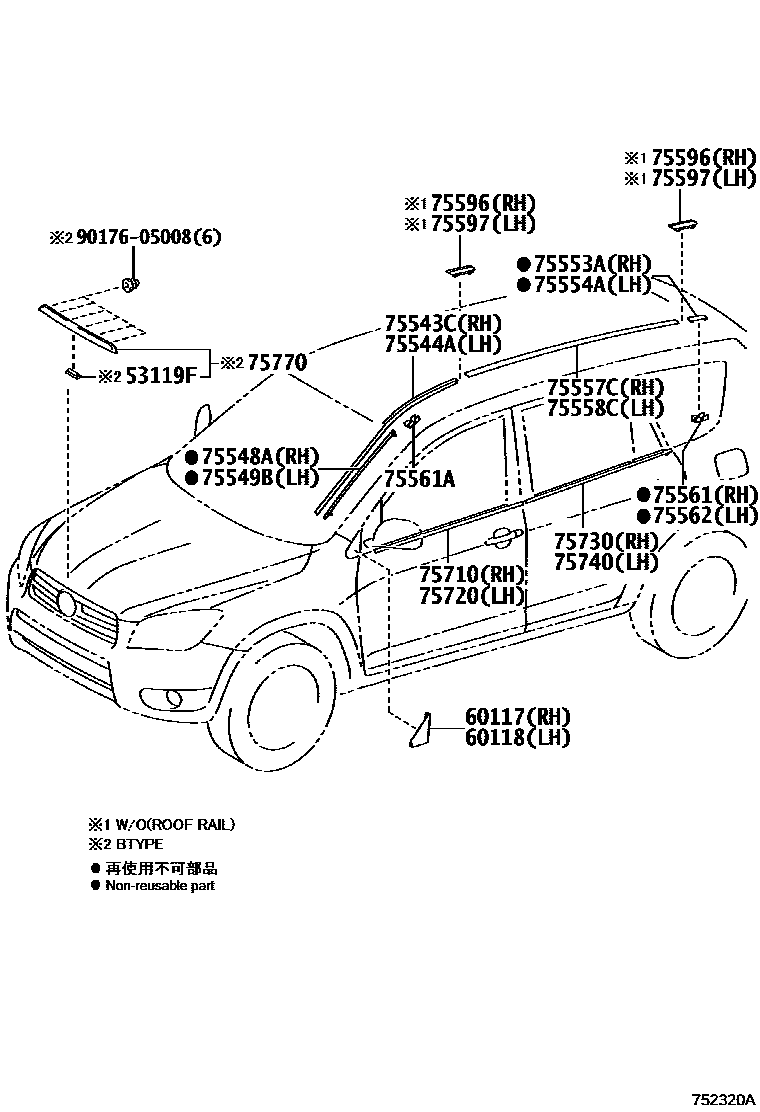

MOULDING

53119FPROTECTOR, RADIATOR GRILLE

main53119-33080iALA3#,ZSA3#..BTYPE201002-201212

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-42010iACA33..G..GCC;ACA30,31,ALA30200511-200812

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

75543CMOULDING, WINDSHIELD, OUTSIDE NO.2 RH

main75543-42010iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

75544AMOULDING, WINDSHIELD, OUTSIDE NO.2 LH

main75544-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-42020iACA3#,ALA30200511-200603

main75548-42021iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201210

main75548-42040iACA3#,ALA3#,GSA33,ZSA3#201211-201212

75549BFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.2

main75549-42020iACA3#,ALA30200511-200603

main75549-42021iACA33..G..GCC;ACA30,31,ALA30200604-200812

main75549-42040iACA3#,ALA3#,GSA33,ZSA3#201211-201212

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-42020iACA33..G..GCC;ACA30,31,ALA30200511-200812

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-42020iACA33..G..GCC;ACA30,31,ALA30200511-200812

75557CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH

main75557-42030iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

main75557-42031iACA33,38,GSA33201208-201212

main75557-42040iACA30,31,ALA30200511-200812

main75557-42041iACA30,ALA3#,ZSA3#201208-201212

75558CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH

main75557-42030iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

main75557-42031iACA33,38,GSA33201208-201212

main75557-42040iALA35..ATYPE;ALA35..DCR..BTYPE;ALA30..X..DCR..BTYPE;ALA30..LHD..G..DCR..BTYPE;ALA30,ZSA3#..(DCRE,DCRL,HTWVM)..ATYPE200812-201208

main75557-42041iACA30,ALA3#,ZSA3#201208-201212

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-52020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52020×2iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75561-52020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH

main75596-35030×2iACA30,ALA3#,ZSA3#;ACA33,38,GSA33..X201202-201212

main75596-42010×2iACA33,38,GSA33..X200511-200808

75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH

main75596-35030×2iACA30,ALA3#,ZSA3#;ACA33,38,GSA33..X201202-201212

main75596-42010×2iACA30,ALA30200511-200812

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-42030iACA33..G..GCC;ACA30,31,ALA30200511-200812

main75710-42031iACA3#,ALA3#,GSA33,ZSA3#201108-201212

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-42030iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

main75720-42031iACA3#,ALA3#,GSA33,ZSA3#201108-201212

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-42020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

main75730-42021iACA33,38,GSA33201108-201212

main75730-42030iACA30,31,ALA30200511-200812

main75730-42031iACA30,ALA3#,ZSA3#201108-201212

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-42020iACA33,38,GSA33200808-201107

main75740-42021iACA33,38,GSA33201108-201212

main75740-42030iACA30,31,ALA30200511-200812

main75740-42031iACA30,ALA3#,ZSA3#201108-201212

75770MOULDING ASSY, HOOD, FRONT

main75770-42020iALA3#,ZSA3#..BTYPE201002-201212

PLATED

main75770-42030iZSA3#..LHD..BTYPE201003-201212

PLATED,RUSSIA SPEC

9017605008

main90176-05008

22 parts on this diagram · 1 diagram in section
