INSIDE TRIM BOARD

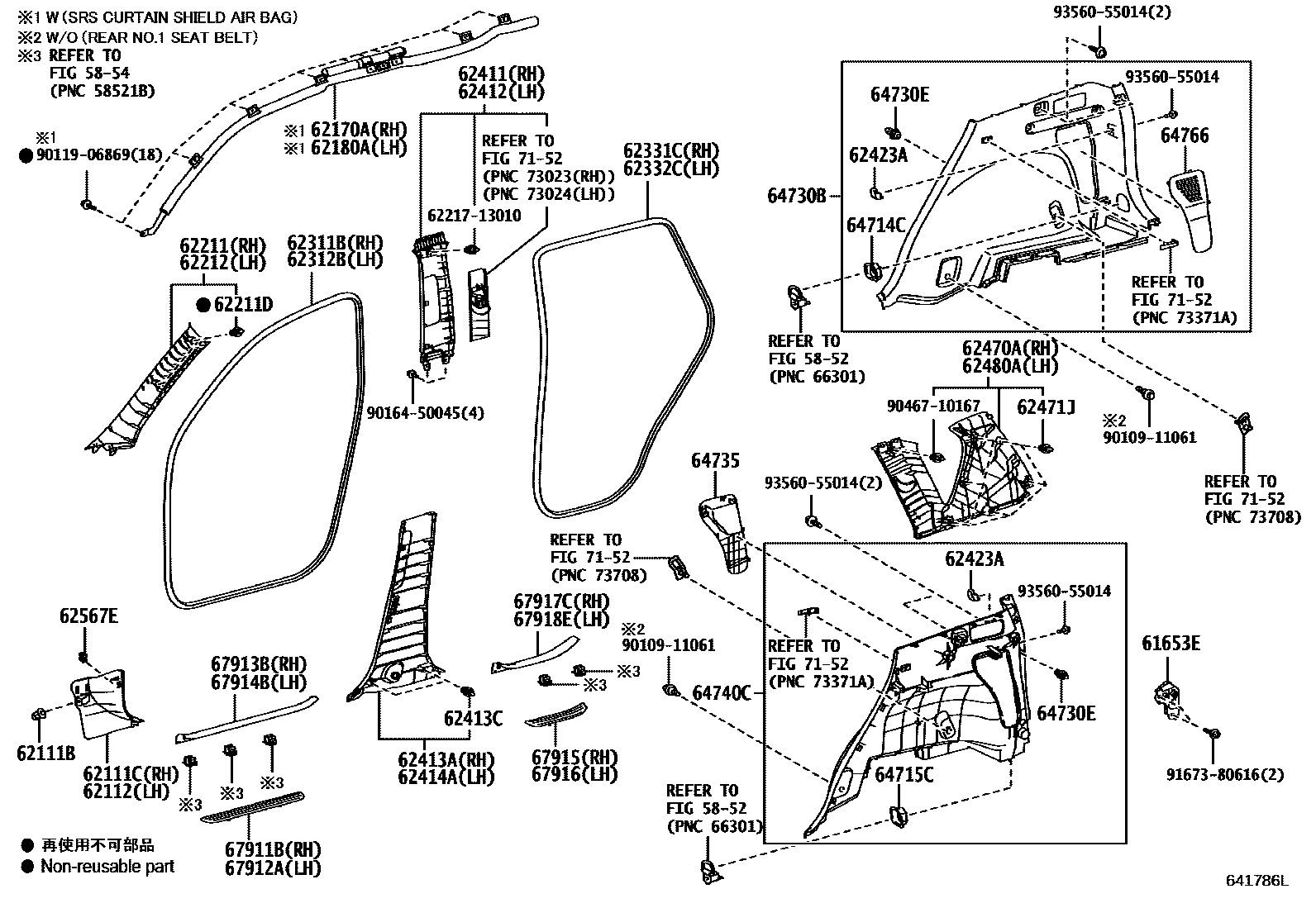

Parts diagram
5852
5854
61653EBRACKET, DECK SIDE TRIM
main61653-42040i200511-200808
62111BCLIP(FOR COWL SIDE TRIM)
main90467-06155×2i200511-200808
62111CBOARD, COWL SIDE TRIM, RH
main62111-42040-B0i200808-201212
DK.GRAY,TRIM1#
main62111-42050-B0i200511-200812
BEIJING SPEC,DK.GRAY,TRIM1#,4#
62112BOARD, COWL SIDE TRIM, LH
main62112-42040-B0i200511-200812
DK.GRAY,TRIM1#
main62112-42050-B0i200511-200812
BEIJING SPEC,DK.GRAY,TRIM1#,4#
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-42040i200511-200812
WITHOUT(CURTAIN & SIDE AIR BAG)
main62170-42050i201008-201212
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-42030i200812-201212
WITHOUT(CURTAIN & SIDE AIR BAG)
main62180-42040i201008-201212
62211GARNISH, FRONT PILLAR, RH
main62210-42030-B0i200808-201212
GRAY,TRIM1#
main62210-42030-E0i200808-201212
SAND BEIGE,TRIM4#
main62210-42040-A0supersedes 62210-42030-A0i200511-200812
IVORY,TRIM4#
main62210-42040-B0supersedes 62210-42030-B0i200511-200812
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#
main62210-42040-E0i200812-201110
SAND BEIGE,TRIM4#
main62210-42041-B0i201111-201212
SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#
sub62210-42090
main62210-42041-E0i201111-201212
SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM4#
sub62210-42090
main62210-42060-A0i200511-200808
BEIJING SPEC&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,IVORY,TRIM4#
main62210-42060-B0i200511-200812
BEIJING SPEC&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
main62217-20010×4supersedes 90467-10161i200808-200810
SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE)
main62217-42030×4i200811-201212
SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE)
main90467-10161×4i200808-201212
62212GARNISH, FRONT PILLAR, LH
main62220-42030-B0i200808-201212
GRAY,TRIM1#
main62220-42030-E0i200808-201212
SAND BEIGE,TRIM4#
main62220-42040-A0supersedes 62220-42030-A0i200511-200812
IVORY,TRIM4#
main62220-42040-B0supersedes 62220-42030-B0i200511-200812
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#
main62220-42040-E0i200812-201110
SAND BEIGE,TRIM4#
main62220-42041-B0i201111-201212
SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#
main62220-42041-E0i201111-201212
SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM4#
main62220-42060-A0i200511-200808
BEIJING SPEC&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,IVORY,TRIM4#
main62220-42060-B0i200511-200812
BEIJING SPEC&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-42070-B0i200511-200812
DK.GRAY,TRIM1#
sub62311-42090
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-42070-B0i200808-201212
DK.GRAY,TRIM1#
sub62312-42090
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-42030-B0i200808-201212
DK.GRAY,TRIM1#
sub62331-42060
main62331-42040-B0i200511-200812
DK.GRAY,TRIM1#
sub62331-42070
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-42030-B0i200708-200808
DK.GRAY,TRIM1#
sub62332-42060
main62332-42040-B0i200812-201211
DK.GRAY,TRIM1#
sub62332-42070
62411GARNISH, CENTER PILLAR, RH
main62410-42040-A0i200511-200812
IVORY,TRIM4#
main62410-42040-B0i200511-200812
GRAY,TRIM1#
main62410-42040-E0i200808-201212
SAND BEIGE,TRIM4#
main62410-42050-A0i200511-200808
CHINA SPEC,IVORY,TRIM4#
main62410-42050-B0i200511-200812
BEIJING SPEC,GRAY,TRIM1#
62412GARNISH, CENTER PILLAR, LH
main62420-42040-A0i200511-200812
IVORY,TRIM4#
main62420-42040-B0i200808-201212
GRAY,TRIM1#
main62420-42040-E0i200808-201212
SAND BEIGE,TRIM4#
main62420-42050-A0i200511-200808
CHINA SPEC,IVORY,TRIM4#
main62420-42050-B0i200511-200812
BEIJING SPEC,GRAY,TRIM1#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-42040-B0i200511-200812
DK.GRAY,TRIM1#
main62413-42050-B0i200511-200812
BEIJING SPEC,DK.GRAY,TRIM1#,4#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-10161×4i200511-200808
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-42040-B0i200808-201212
DK.GRAY,TRIM1#
main62414-42050-B0i200511-200812
BEIJING SPEC,DK.GRAY,TRIM1#,4#
62423AHOOK, SIDE WINDOW GARNISH
main62423-42010-B1×2i200511-200812
DK.GRAY,TRIM1#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
main62470-42090-A0i200511-200808
IVORY,TRIM4#
sub62470-42091
main62470-42090-B0i200808-201212
GRAY,TRIM1#
sub62470-42091
main62470-42090-E0i200808-201212
SAND BEIGE,TRIM4#
sub62470-42091
main62470-42110-A0i200511-200812
IVORY,TRIM4#
main62470-42110-B0i200812-201212
GRAY,TRIM1#
main62470-42110-E0i200812-201212
SAND BEIGE,TRIM4#
main62470-42120-A0i200511-200808
BEIJING SPEC&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,IVORY,TRIM4#
main62470-42120-B0i200511-200812
BEIJING SPEC&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#
62471JCLIP (FOR ROOF SIDE GARNISH)
main90467-10161×14i200511-200808
62480AGARNISH ASSY, ROOF SIDE, INNER LH
main62480-42090-A0i200511-200808
IVORY,TRIM4#
sub62480-42091
main62480-42090-B0i200511-200812
GRAY,TRIM1#
sub62480-42091
main62480-42090-E0i200808-201212
SAND BEIGE,TRIM4#
sub62480-42091
main62480-42110-A0i200511-200812
IVORY,TRIM4#
main62480-42110-B0i200511-200812
GRAY,TRIM1#
main62480-42110-E0i200812-201212
SAND BEIGE,TRIM4#
main62480-42120-A0i200511-200808
BEIJING SPEC&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,IVORY,TRIM4#
main62480-42120-B0i200511-200812
BEIJING SPEC&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
main62567-21010×2i200511-200808
64714CCOVER, DECK SIDE TRIM, RH
main64714-42020-B0i200511-200812
DK.GRAY,TRIM1#
64715CCOVER, DECK SIDE TRIM, LH
main64715-42010-B0i200511-200812
DK.GRAY,TRIM1#
64730BPANEL ASSY, DECK TRIM SIDE, RH
main64730-42060-B0i200808-201111
DK.GRAY,TRIM1#
main64730-42061-B0i201112-201212
DK.GRAY,TRIM1#
main64730-42070-B0i200511-200812
DK.GRAY,TRIM1#
main64730-42080-B0i200511-200812
BEIJING SPEC,DK.GRAY,TRIM1#,4#
64730ECLIP(FOR DECK TRIM SIDE BOARD)
main90467-10161×10i200511-200812
64735COVER, DECK TRIM SIDE SERVICE HOLE
main64735-42020-B0i200808-201212
DK.GRAY,TRIM1#
main64735-42030-B0i200812-201212
DK.GRAY,TRIM1#
main64735-42040-B0i200511-200812
BEIJING SPEC,DK.GRAY,TRIM1#,4#
64740CPANEL ASSY, DECK TRIM SIDE, LH
main64740-42040-B0i200808-201111
DK.GRAY,TRIM1#
main64740-42041-B0i201112-201212
DK.GRAY,TRIM1#
main64740-42050-B0i200812-201212
DK.GRAY,TRIM1#
main64740-42060-B0i200511-200812
BEIJING SPEC,DK.GRAY,TRIM1#,4#
64766COVER SUB-ASSY, QUARTER TRIM JACK
main64766-42020-B0i200708-200808
DK.GRAY,TRIM1#
main64766-42040-B0i200812-201212
DK.GRAY,TRIM1#
main64766-42060-B0i200511-200812
BEIJING SPEC,DK.GRAY,TRIM1#,4#
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
main67911-42030-B0i200808-201212
DK.GRAY,TRIM1#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67911-42030-B0i200511-200812
DK.GRAY,TRIM1#
67913BPLATE, FRONT DOOR SCUFF, RH
main67913-42090-B0i200808-201212
DK.GRAY,TRIM1#
main67913-42100-B0i200511-200812
BEIJING SPEC,DK.GRAY,TRIM1#,4#
67914BPLATE, FRONT DOOR SCUFF, LH
main67914-42090-B0i200808-201212
DK.GRAY,TRIM1#
main67914-42100-B0i200511-200812
BEIJING SPEC,DK.GRAY,TRIM1#,4#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
main67915-42020-B0i200511-200812
DK.GRAY,TRIM1#,4#
main67915-42030-B0i200812-201212
DK.GRAY,TRIM1#
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
main67916-42020-B0i200708-200808
DK.GRAY,TRIM1#
main67916-42030-B0i200812-201212
DK.GRAY,TRIM1#
67917CPLATE, REAR DOOR SCUFF, RH
main67917-42040-B0i200708-200808
DK.GRAY,TRIM1#
main67917-42050-B0i200511-200812
DK.GRAY,TRIM1#
main67917-42060-B0i200511-200812
BEIJING SPEC,DK.GRAY,TRIM1#,4#
67918EPLATE, REAR DOOR SCUFF, LH
main67918-42040-B0i200808-201212
DK.GRAY,TRIM1#
main67918-42050-B0i200812-201212
DK.GRAY,TRIM1#
main67918-42060-B0i200511-200812
BEIJING SPEC,DK.GRAY,TRIM1#,4#
7152
6221713010COVER, RAIL ROOF SIDE, INNER CENTER
main62217-13010
9010911061
main90109-11061
9011906869
main90119-06869
9016450045
main90164-50045
9046710167
main90467-10167
9167380616
main91673-80616
9356055014
main93560-55014

48 parts on this diagram · 2 diagrams in section
