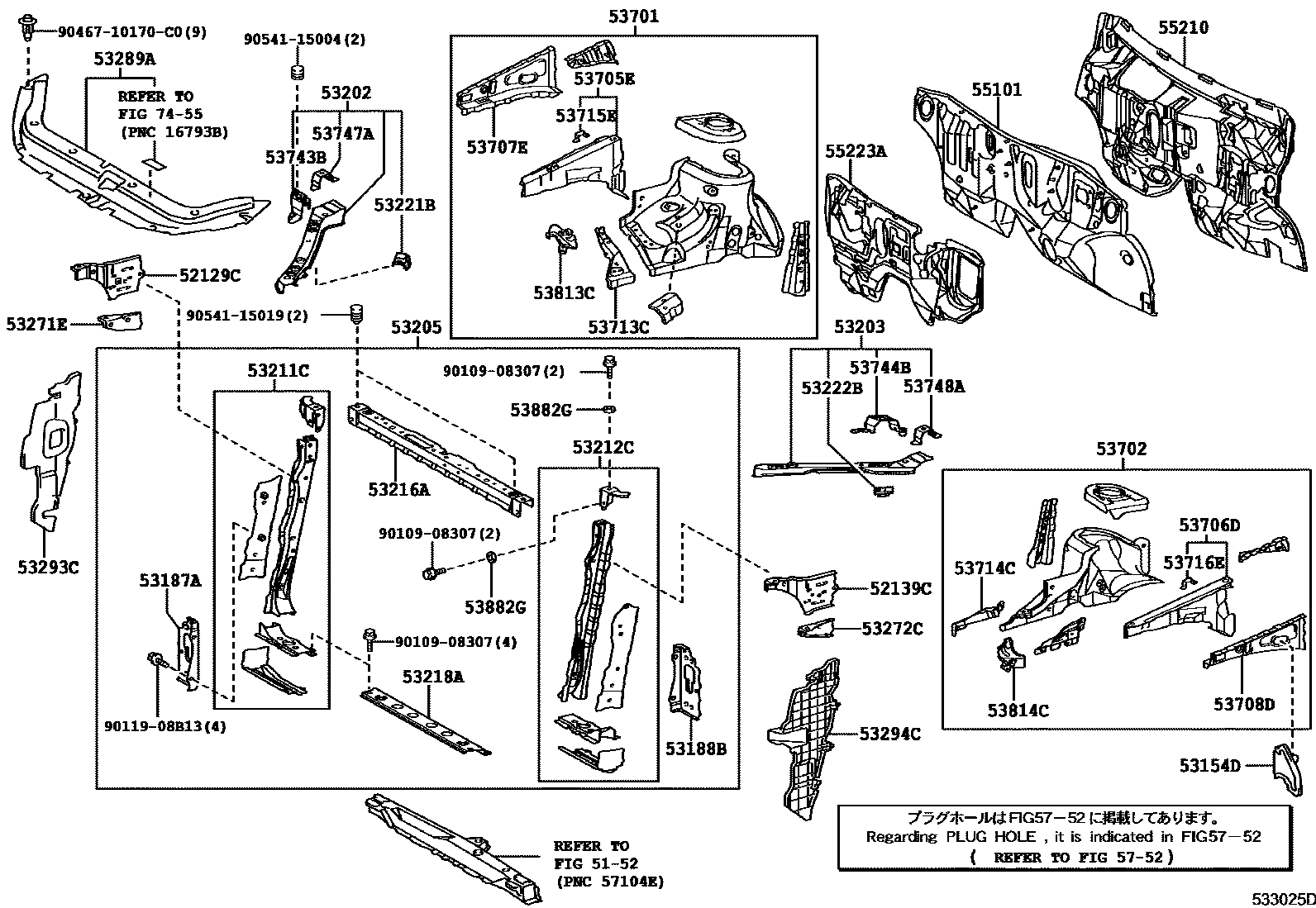

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

5152

52129CARM, FRONT BUMPER, UPPER NO.2 RH

main52129-42010iACA33..G..GCC;ACA30,31,ALA30200511-201212

52139CARM, FRONT BUMPER, UPPER NO.2 LH

main52139-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-42010iALA30..6FC200903-201212

53187ASTAY, RADIATOR SUPPORT, RH

main53187-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

53188BSTAY, RADIATOR SUPPORT, LH

main53188-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

main53202-42020iALA3#,ZSA3#..BTYPE201002-201212

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-42010iACA3#,ALA30,GSA33200511-200709

sub53203-42011

main53203-42011iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200710-201212

main53203-42021iALA3#,ZSA3#..BTYPE201002-201212

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-42070iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

53211CSUPPORT, RADIATOR, RH

main53211-42902iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

53212CSUPPORT, RADIATOR, LH

main53212-42902iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

53216ASUPPORT, RADIATOR, UPPER

main53216-42901iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

53218ASUPPORT, RADIATOR, LOWER

main53218-42020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

53221BBRACE, RADIATOR SUPPORT APRON, RH

main53221-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

53222BBRACE, RADIATOR SUPPORT APRON, LH

main53222-42010iACA33..G..GCC;ACA30,31,ALA30200511-201212

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-42010iACA3#,ALA30200511-200603

sub53272-42011

main53272-42011iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200604-201212

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-42010iACA3#,ALA30200511-201212

main53289-42020iGSA33200708-201212

main53289-42031iALA3#,ZSA3#..BTYPE201002-201212

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-42010iACA30,31,ALA30200511-200812

main53293-42050iACA38,GSA33;ACA33..LHD..X;ACA33..G..GEN200511-200812

main53293-42061iALA3#,ZSA3#..BTYPE201002-201212

main53293-42070iACA30,33,38,ALA3#,ZSA3#..(ARL,EUR)..ATYPE200808-201212

main53293-42080iGSA33;ACA33,38..GCC,GEN200808-201212

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-42010iACA33..ARL200511-200812

main53294-42030iACA33..G..GCC200511-200812

main53294-42040iACA30,33,38,ALA3#,ZSA3#..(ARL,EUR)..ATYPE200808-201212

main53294-42050iGSA33;ACA33,38..GCC,GEN200808-201212

main53294-42061iALA3#,ZSA3#..BTYPE201002-201212

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-42140iACA3#,ALA30,GSA33200511-201212

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-42150iACA3#,ALA30,GSA33200511-201212

53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-42010iACA3#,ALA30200511-200512

sub53705-42011

main53705-42011iACA33..G..GCC;ACA30,31,ALA30200601-201211

sub53705-42012

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-42010iACA3#,ALA30200511-200512

sub53706-42011

main53706-42011iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200601-201211

sub53706-42012

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-42040iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-42040iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

sub53714-42041

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-42010iACA3#,ALA30,GSA33200511-201212

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53715-42010iACA3#,ALA30,GSA33200511-201212

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-42020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

main53743-42030iALA3#,ZSA3#..BTYPE201002-201212

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

main53744-42030iALA3#,ZSA3#..BTYPE201002-201212

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

main53747-42020iALA3#,ZSA3#..BTYPE201002-201212

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

main53748-42020iALA3#,ZSA3#..BTYPE201002-201212

53813CEXTENSION, FRONT FENDER, RH

main53813-42020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

53814CEXTENSION, FRONT FENDER, LH

main53814-42020iACA33..G..GCC;ACA30,31,ALA30200511-201212

53882GSEAL, FRONT FENDER

main53882-30040iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201207

55101PANEL SUB-ASSY, DASH

main55101-42420iACA30,33,ALA30..RHD..MTM200511-201212

main55101-42430iACA30,33,38,ALA30,ZSA30..LHD..ATM200511-201212

main55101-42440iACA30,33,38,ALA3#,ZSA3#..LHD..MTM200511-201212

sub55101-42450

main55101-42450iALA30..LHD200511-201212

COLD AREA SPEC

main55101-42470iACA30,33..RHD..4FC200708-201212

main55101-42480iALA30..LHD..6FC200903-201212

COLD AREA SPEC

main55101-42901iGSA33200511-201212

55210INSULATOR ASSY, DASH PANEL

main55210-42120iACA3#,ALA30..LHD200511-200807

sub55210-42160

main55210-42130iACA30,33,ALA30,GSA33..RHD200511-200807

sub55210-42150

main55210-42150iACA30,33,38,ALA3#,GSA33,ZSA3#..RHD200808-201212

main55210-42160iACA30,33,38,ALA3#,ZSA3#..LHD200808-201212

55223AINSULATOR, DASH PANEL, OUTER

main55223-42050iACA38;ACA33..LHD..X;ACA33..G..GEN200511-201204

sub55223-42051

main55223-42051iACA3#,ALA3#,ZSA3#..LHD201205-201212

main55223-42060iACA33,GSA33..ARL200511-201204

sub55223-42061

main55223-42061iACA3#,ALA3#,GSA33,ZSA3#..RHD201205-201212

7455

9010908307

main90109-08307

9011908B13

main90119-08B13

9046710170C0

main90467-10170C0

9054115004

main90541-15004

9054115019

main90541-15019

46 parts on this diagram · 2 diagrams in section
