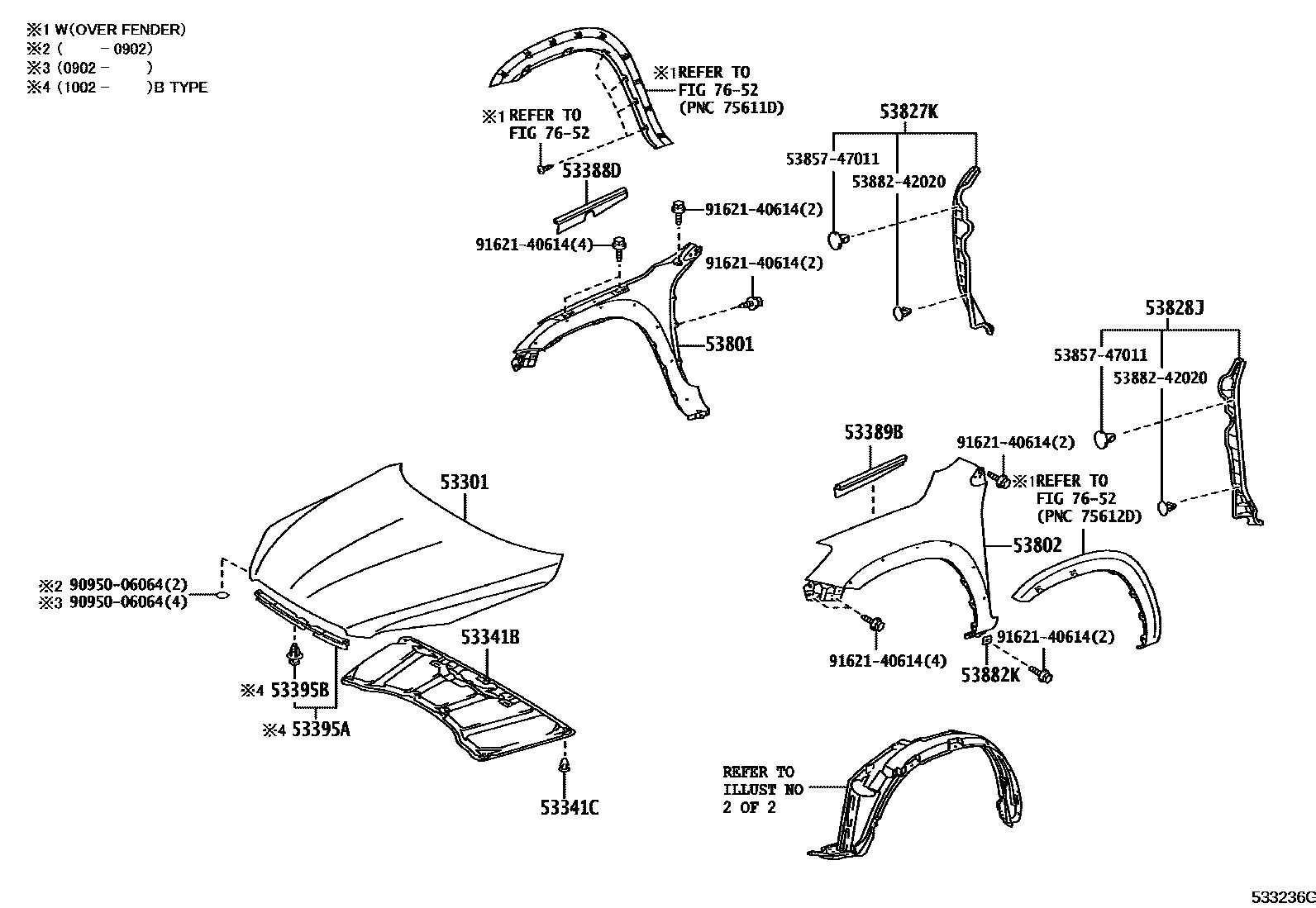

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-42070iACA3#,ALA30,GSA33200511-200812

main53301-42100iALA3#,ZSA3#..BTYPE201002-201212

53341BINSULATOR, HOOD

main53341-42070iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

main53341-42080iALA3#,ZSA3#..BTYPE201002-201212

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×7iACA30,33,38,ALA3#,GSA33,ZSA3#..ATYPE200808-201212

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-42010iACA33..G..GCC;ACA30,31,ALA30200511-200812

main53388-42020iALA3#,ZSA3#..BTYPE201002-201212

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-42030iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

main53389-42040iALA3#,ZSA3#..BTYPE201002-201212

53395ASEAL, HOOD TO FRONT END PANEL, NO.1

main53039-42010iALA3#,ZSA3#..BTYPE201002-201212

53395BCLIP(FOR HOOD TO FRONT END PANEL SEAL)

main75819-68010×5iALA3#,ZSA3#..BTYPE201002-201212

53801FENDER SUB-ASSY, FRONT RH

main53811-42210iACA33,38..X..GEN200808-201212

sub53811-42310

main53811-42220iACA33..G..GEN200511-200808

OVER FENDER-WITH

main53811-42270iALA3#,ZSA3#..BTYPE201002-201212

main53811-42290iACA33,38..G..GEN;ACA33,38,GSA33..X..(ARL,GCC);ACA30,ALA3#,ZSA3#..(DCR,DCRE,HTWC,HTWVM)..ATYPE200808-201212

main53811-42300iACA33,38,ALA30,GSA33..G..(DCRL,HTWC)..(ARL,EUR,GCC)..ATYPE200808-201212

OVER FENDER-WITH

main53811-42280iALA30..6F..DCRL201008-201212

TIRE & DISK WHEEL-235/55R18H ALM 7.5J GRAY

53802FENDER SUB-ASSY, FRONT LH

main53812-42240iACA33,38..X..GEN200808-201212

sub53812-42340

main53812-42250iACA33..G..GEN200511-200808

OVER FENDER-WITH

main53812-42280iACA33,38..G..GEN;ACA33,38,GSA33..X..(ARL,GCC);ACA30,ALA3#,ZSA3#..(DCR,DCRE,HTWC,HTWVM)..ATYPE200808-201212

main53812-42290iACA33,38,ALA30,GSA33..G..(DCRL,HTWC)..(ARL,EUR,GCC)..ATYPE200808-201212

OVER FENDER-WITH

main53812-42320iALA3#,ZSA3#..BTYPE201002-201212

main53812-42330iALA30..DCRL201112-201212

TIRE & DISK WHEEL-235/55R18H ALM 10SP DARK

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-42040iACA3#,ALA30,GSA33200511-200801

main53827-42041iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200802-200808

main53827-42042iACA3#,ALA3#,GSA33,ZSA3#201205-201212

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-42060iACA3#,ALA30,GSA33200511-200801

main53828-42061iACA33..G..GCC;ACA30,31,ALA30200802-200812

main53828-42062iACA3#,ALA3#,GSA33,ZSA3#201205-201212

53882KSEAL, FRONT FENDER

main53882-16030×2iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

7652

5385747011RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011

5388242020PACKING, FRONT FENDER MAIN

main53882-42020

9095006064

main90950-06064

9162140614

main91621-40614

17 parts on this diagram · 2 diagrams in section
