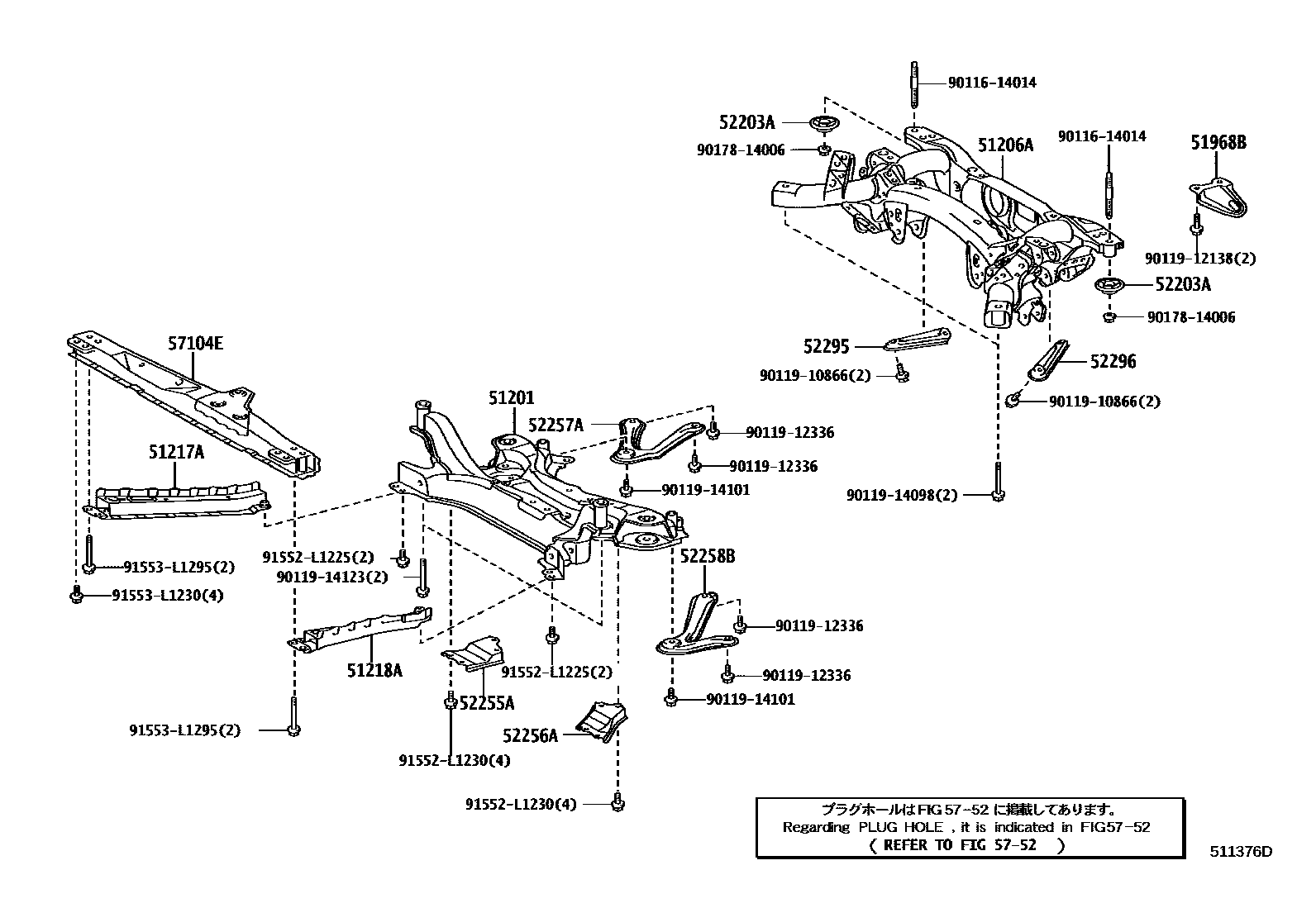

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12441iACA3#,ALA3#,GSA33,ZSA3#201202-201212

sub51201-12442

main51201-42070iACA3#,ALA30200511-200608

sub51201-42071

main51201-42071iACA30,33,38,ALA3#,GSA33,ZSA3#200609-201201

sub51201-12441

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-42050iACA3#,ALA30,GSA33200511-200901

sub51206-42051

main51206-42051iACA3#,ALA3#,GSA33,ZSA3#200901-201007

sub51206-42053

main51206-42061iACA3#,ALA3#,GSA33,ZSA3#201008-201010

sub51206-42062

main51206-42062iACA3#,ALA3#,GSA33,ZSA3#201011-201212

sub51206-42063

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-42010iACA3#,ALA30,GSA33200511-201204

main51107-42020iACA3#,ALA3#,GSA33,ZSA3#201204-201212

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201204

main51108-42020iACA3#,ALA3#,GSA33,ZSA3#201204-201212

51968BHOOK, TRANSPORT, REAR LH

main51968-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

52203ACUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER

main52203-42010iACA3#,ALA30,GSA33200511-201212

52255ABRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-12010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

52256ABRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-12010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

52257ABRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

52258BBRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-12040iACA3#,ALA30,GSA33200511-201206

main52295-42010iACA3#,ALA3#,GSA33,ZSA3#201207-201212

52296BRACE, REAR SUSPENSION MEMBER, LH

main52296-12010iACA3#,ALA30,GSA33200511-201206

main52296-42010iACA3#,ALA3#,GSA33,ZSA3#201207-201212

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-42061iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201201

main57104-42070iACA3#,ALA3#,GSA33,ZSA3#201202-201212

5752

9011614014

main90116-14014

9011910866

main90119-10866

9011912138

main90119-12138

9011912336

main90119-12336

9011914098

main90119-14098

9011914101

main90119-14101

9011914123

main90119-14123

9017814006

main90178-14006

91552L1225

main91552-L1225

91552L1230

main91552-L1230

91553L1230

main91553-L1230

91553L1295

main91553-L1295

26 parts on this diagram · 2 diagrams in section
