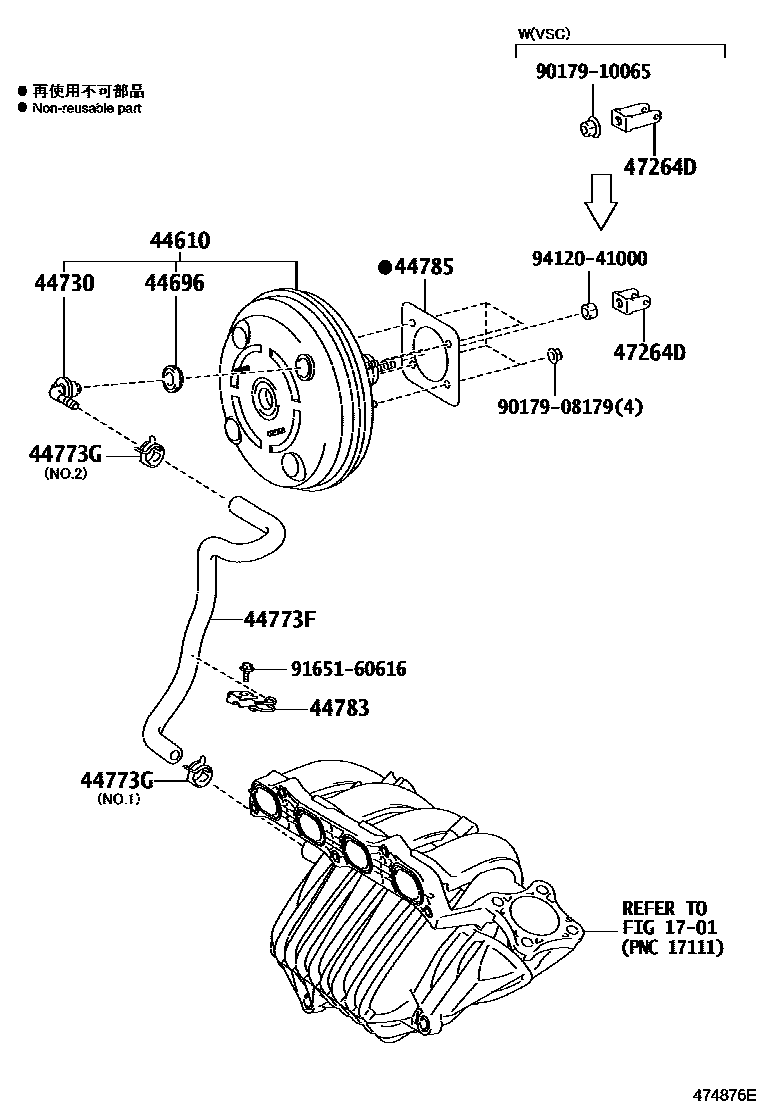

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1701

44610BOOSTER ASSY, BRAKE

main44610-42250iACA30..RHD..X200511-200606

WITHOUT(VSC)

main44610-42251iACA30..RHD..X200607-200803

WITHOUT(VSC)

main44610-42252iACA33..X..ARL200803-200808

main44610-42253iACA33,38..X..ARL201008-201212

VSC-WITHOUT

main44610-42260iACA30..LHD..X200511-200606

WITHOUT(VSC)

main44610-42261iACA30..LHD..X200607-200803

WITHOUT(VSC)

main44610-42262iACA33,38..GCC,GEN200808-201007

main44610-42263iACA30..LHD..X201008-201212

VSC-WITHOUT

main44610-42310iACA33..G..ARL;ACA30,GSA33..RHD200511-200803

main44610-42311supersedes 44610-42252iACA30..RHD200803-200812

main44610-42320iACA30,31..LHD200511-200803

WITH(VSC)

main44610-42321supersedes 44610-42262iACA30,31..LHD200803-200812

WITH(VSC)

main44610-42330iALA30..RHD200511-200803

main44610-42331iALA30..RHD200803-200812

main44610-42340iALA30..LHD200511-200803

main44610-42341iALA3#,ZSA3#..LHD200812-201212

main44610-42270iALA30..RHD..X200511-200606

WITHOUT(VSC)

main44610-42271iALA30..RHD..X200607-200803

WITHOUT(VSC)

main44610-42272iALA30..RHD..X200803-200812

WITHOUT(VSC)

main44610-42273iALA30,ZSA3#..RHD..X201008-201212

VSC-WITHOUT

main44610-42280iALA30..LHD..X200511-200606

WITHOUT(VSC)

main44610-42281iALA30..LHD..X200607-200803

WITHOUT(VSC)

main44610-42282iALA30,ZSA3#..LHD..X200812-201007

VSC-WITHOUT

main44610-42283iALA30,ZSA3#..LHD..X201008-201212

VSC-WITHOUT

main44610-42301iACA33..G..GEN200808-201212

VSC-WITH

44696GROMMET, CHECK VALVE

main90480-24439iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iACA33..G..GCC;ACA30,31,ALA30200511-200812

44773FHOSE, UNION TO CHECK VALVE

main44773-42131iALA3#..RHD200812-201212

main44773-42140iACA30..RHD200511-200812

main44773-42170iALA30..LHD200511-200812

main44773-42180iZSA3#..RHD200812-201212

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iACA30,ALA30..RHD200601-200812

NO.2

main96133-41500iACA30,ALA30..RHD200601-200812

NO.1

44783CLAMP, VACUUM HOSE

main44783-44010iACA33..X..GCC;ACA33,38..ARL,GEN200511-200808

44785GASKET, BRAKE BOOSTER

main44785-12040iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200702-200808

main44785-42010iALA30;ACA30..LHD..5F200511-200702

WITHOUT(VSC)

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060supersedes 47264-63010iGSA33;ACA33..G..ARL200511-200808

main47264-63010iACA33,38..X;ACA33,38..G..(GCC,GEN)200808-201212

9017908179

main90179-08179

9017910065

main90179-10065

9165160616

main91651-60616

9412041000

main94120-41000

13 parts on this diagram · 7 diagrams in section
