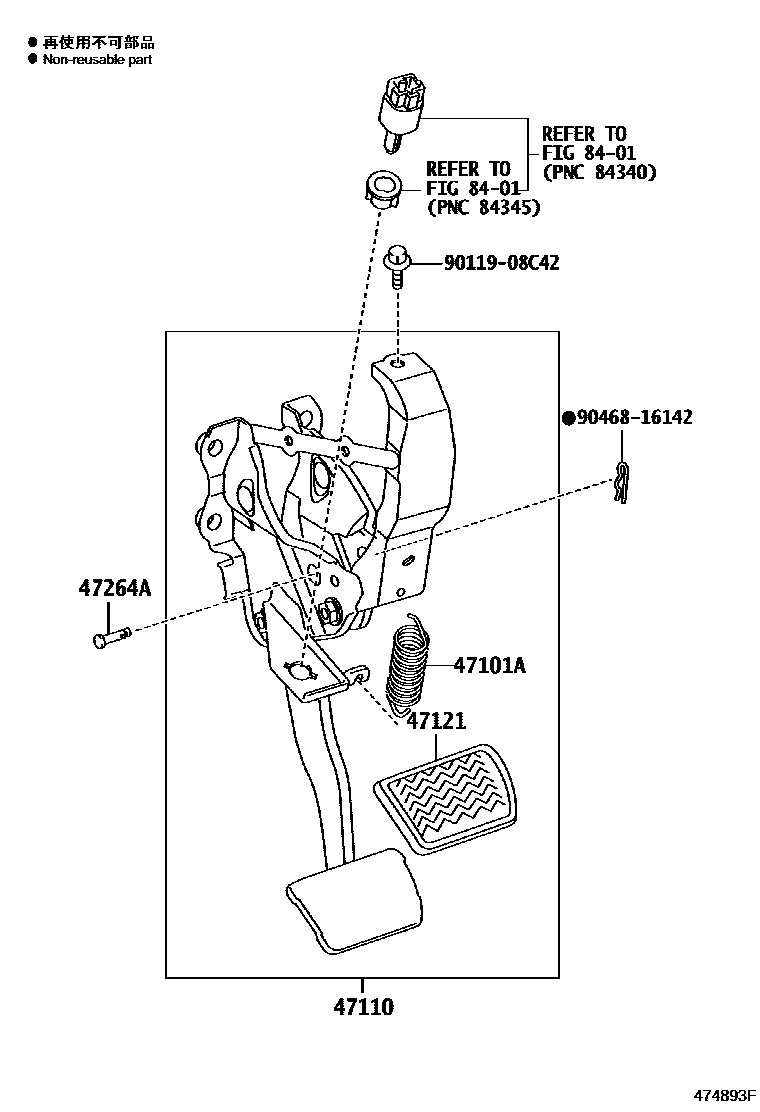

BRAKE PEDAL & BRACKET

0001 1 0002 1W(VSC) 0003 1 0004 1W(VSC)

47101ASPRING(FOR BRAKE PEDAL RETURN)

main47146-42010iACA30,ALA30..RHD200511-200812

main47146-42020iACA30,33,38,ALA3#,ZSA3#..LHD200808-201212

47110SUPPORT ASSY, BRAKE PEDAL

main47110-42140supersedes 47110-42130iACA33..5F..G200511-200808

main47110-42141supersedes 47110-42131iACA33,38..5F..G;ACA30,ALA3#,ZSA3#..RHD..MTM200912-201212

VSC-WITH

main47110-42160supersedes 47110-42150iACA33..4FC..X..ARL200808-200912

VSC-WITH

main47110-42161supersedes 47110-42151iACA33,38..4FC..X..ARL200912-201212

VSC-WITH

main47110-42170iACA33,38..LHD..5F200808-200912

main47110-42171iACA30,ALA30,ZSA3#..LHD..MTM..X200912-201108

VSC-WITHOUT

main47110-42172iACA30,ALA30,ZSA3#..LHD..MTM..X201109-201212

VSC-WITHOUT

main47110-42180iACA30,ALA3#,ZSA3#..LHD..MTM200812-200912

main47110-42181iACA30,ALA3#,ZSA3#..LHD..MTM200912-201108

main47110-42182iACA30,ALA3#,ZSA3#..LHD..MTM201109-201212

main47110-42190iACA38..4FC;ACA33..G..GEN;ACA33..LHD..4FC..X200511-200808

main47110-42191iACA30,ZSA30..LHD..ATM..X200912-201108

VSC-WITHOUT

main47110-42192iACA30,ZSA30..LHD..ATM..X201109-201212

VSC-WITHOUT

main47110-42200supersedes 47110-42190iACA30,33,ALA30,ZSA30..LHD..ATM..EUR200812-200912

main47110-42201iACA30,33,ALA30,ZSA30..LHD..ATM..EUR200912-201108

VSC-WITH

main47110-42202iACA30,33,ALA30,ZSA30..LHD..ATM..EUR201109-201212

VSC-WITH

47121PAD, BRAKE PEDAL

main31321-42010iACA33,38..5F200511-200808

main47121-42010iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-200808

47264APIN(FOR PUSH ROD)

main90249-06180supersedes 90249-08256iACA30,31,ALA30200511-200812

WITH(VSC)

main90249-08051iACA30,ALA30..X200511-200612

WITHOUT(VSC)

main90249-08256iACA38;ACA33..X;ACA33..G..GEN200701-200808

8401

9011908C42

main90119-08C42

9046816142

main90468-16142

7 parts on this diagram · 4 diagrams in section
