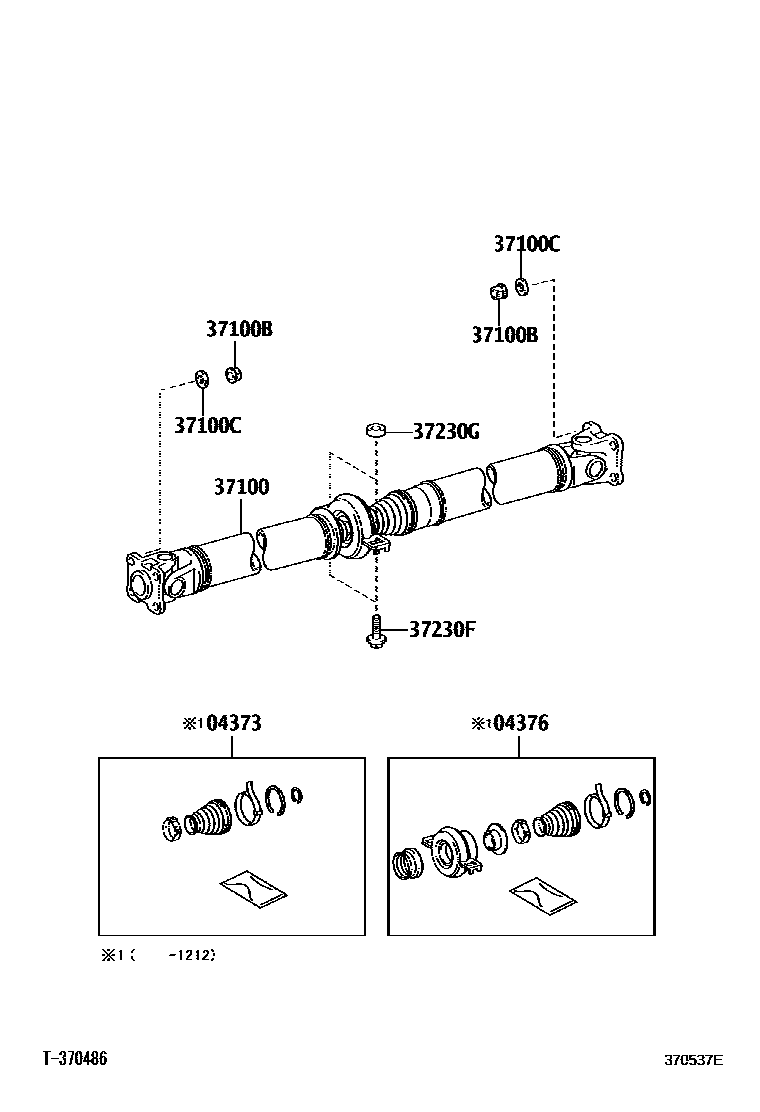

PROPELLER SHAFT & UNIVERSAL JOINT

04373BOOT KIT, UNIVERSAL

main04373-52010iACA30,33,ALA30,GSA33,ZSA30200808-201212

04376BEARING KIT, CENTER SUPPORT

main04376-52010iACA30,33,ALA30,GSA33,ZSA30200808-201212

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-42080iACA30,ALA30,ZSA30200812-201212

main37100-42090iACA33..G..GCC200511-200812

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90179-08197×8iACA33..X..GCC;ACA33,GSA33..ARL,GEN200511-200808

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90201-08097×8iACA30,33,ALA30,GSA33,ZSA30200808-201212

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10444×2iACA33..G..GCC;ACA30,31,ALA30200511-200812

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081×2iACA33..X..GCC;ACA33,GSA33..ARL,GEN200511-200808

T=4.5

main90201-10083×2iACA33..X..GCC;ACA33,GSA33..ARL,GEN200511-200808

T=6.5

main90201-10084×2iACA30,31,33,ALA30200511-200703

T=9.0

main90201-10085×2iACA30,31,33,ALA30200511-200703

T=11.0

main90201-10123iACA30,33,ALA30,GSA33,ZSA30200808-201212

T=2.0

7 parts on this diagram · 1 diagram in section
