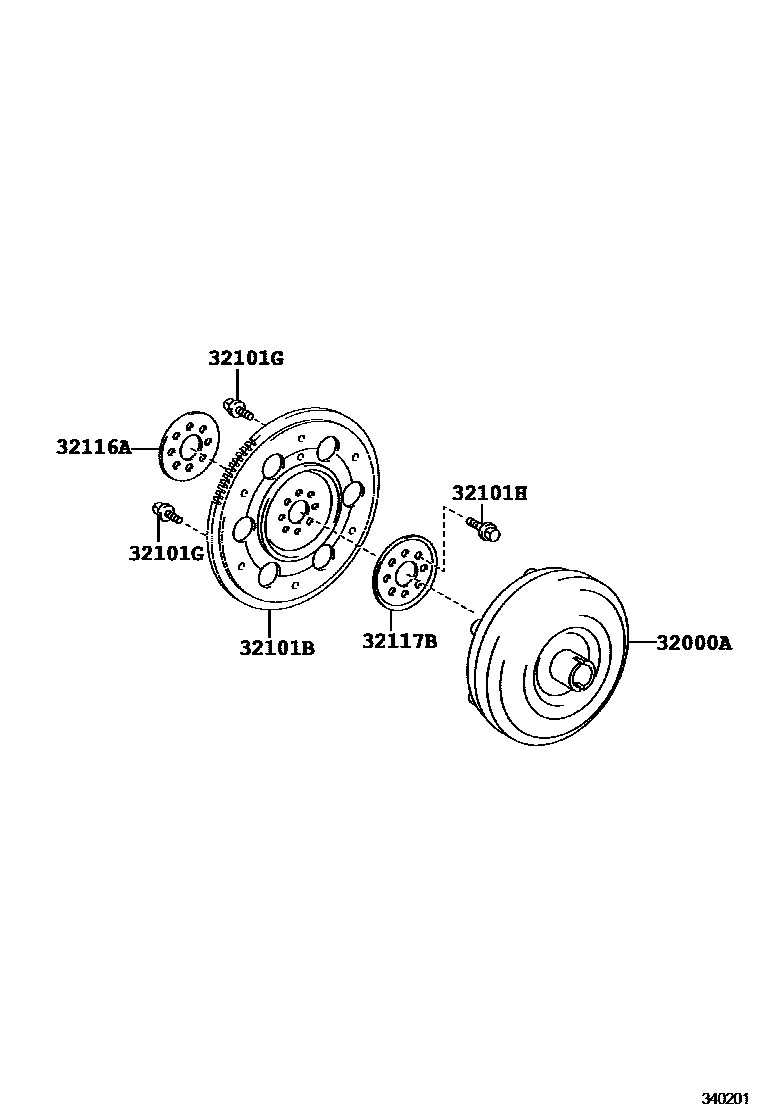

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-28180iZSA30..CVFC200812-201212

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-28050iZSA30..CVFC200812-201212

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iZSA30..CVFC200812-201212

*9-1.25PX12.4-7.3,BLACK

main90119-09025iZSA30..CVFC200812-201212

*9-1.25PX12.4-8.4,SILVER

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iZSA30..CVFC200812-201212

(J)

main90105-A0022iZSA30..CVFC200812-201003

(L)

sub90105-10048

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZSA30..CVFC200812-201212

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZSA30..CVFC200812-201212

6 parts on this diagram · 1 diagram in section
