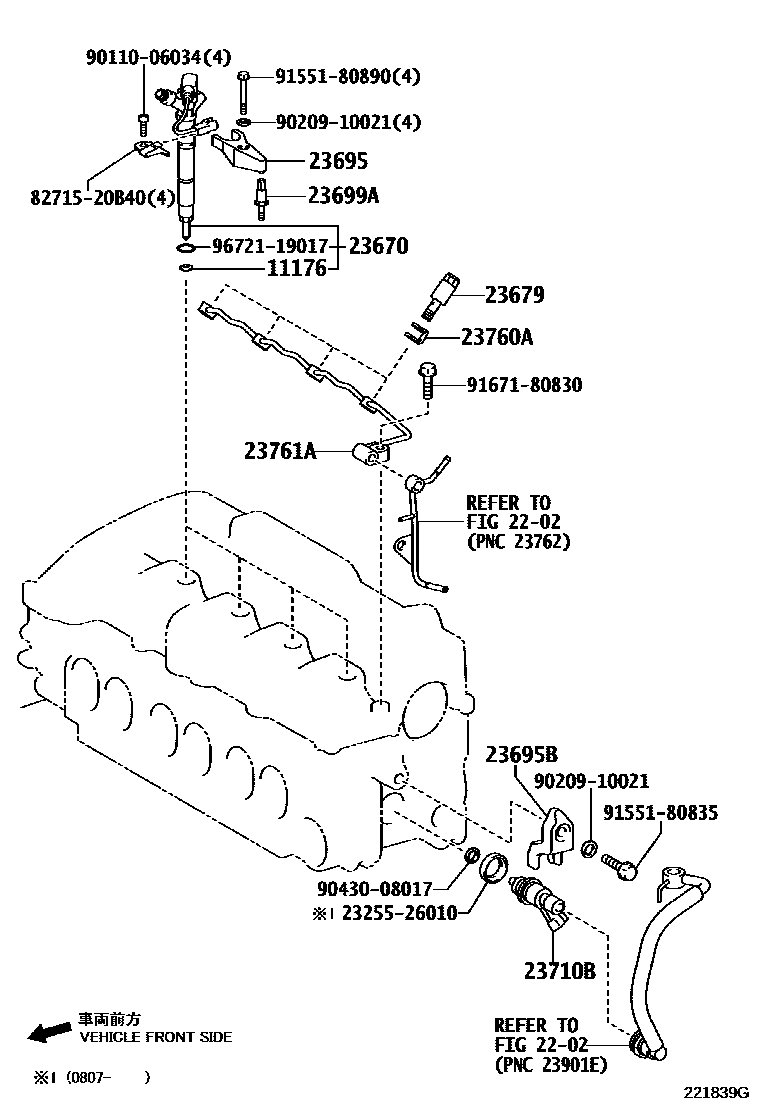

INJECTION NOZZLE

0001 1 0002 1 0003 1 0004 1

11176SEAT, INJECTION NOZZLE

main11176-26010i2AD#..ALA30200511-200811

sub11176-51010

main11176-26020i2AD#..ALA3#200812-201212

main11176-26030i2AD#..ALA30200811-200812

sub11176-51010

2202

23670INJECTOR ASSY

main23670-09140i2ADFTV..ALA30..DCR200511-200712

sub23670-09290

main23670-09190i2ADFTV..ALA30..DCRE200701-200712

sub23670-09270

main23670-09270i2ADFTV..ALA30..DCRE200712-200812

main23670-09290i2ADFTV..ALA30..DCR200712-200812

main23670-29055i2ADFHV..ALA30200511-200710

sub23670-29105

main23670-29105i2ADFHV..ALA30200710-200812

main23670-29125i2ADFTV..ALA3#;2ADFHV..ALA30..6FC200812-201212

sub23670-29126

main23670-29135i2ADFHV..ALA30..6F200812-201212

sub23670-29136

23679SCREW, INJECTOR FOLLOW

main23679-0R010i2ADFTV..ALA30200511-200812

main23679-26010i2ADFHV..ALA30200511-200812

sub23679-26020

main23679-26020i2AD#..ALA3#200812-201212

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0R010i2ADFTV..ALA30200511-200705

sub23695-0R011

main23695-0R011i2ADFTV..ALA30200705-200707

sub23695-0R012

main23695-0R012i2ADFTV..ALA30200707-200812

main23695-0R020i2ADFHV..ALA30200511-200808

sub23695-0R021

main23695-0R021i2ADFHV..ALA30200808-200812

main23695-0R021i2AD#..ALA3#200812-201212

TYPE A:REFER ILLUST.

main23695-26020i2AD#..ALA3#200812-201212

TYPE B:REFER ILLUST.

23695BCLAMP, NOZZLE HOLDER, NO.2

main23695-26011i2AD#..ALA3#..DCRE,DCRL200511-201212

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-26010i2ADFTV..ALA30200511-200812

main23699-26021i2ADFHV..ALA30200511-200812

main23699-26021i2AD#..ALA3#200812-201212

TYPE A:REFER ILLUST.

main23699-26030i2AD#..ALA3#200812-201212

TYPE B:REFER ILLUST.

23710BINJECTOR ASSY, EXHAUST FUEL ADDITION

main23710-26010i2AD#..ALA30..DCRE,DCRL200511-200704

sub23710-26011

main23710-26011i2AD#..ALA30..DCRE,DCRL200704-201002

sub23710-26012

main23710-26012i2AD#..ALA3#..DCRE,DCRL201002-201212

23760AGASKET

main90904-30008i2ADFTV..ALA30200511-201212

23761APIPE, NOZZLE LEAKAGE, NO.1

main23761-0R011i2ADFTV..ALA30200704-200812

(L)

sub23761-26010

main23761-0R011i2ADFTV..ALA30200511-200704

sub23761-26010

main23761-0R030i2ADFHV..ALA30200704-200812

(L)

main23761-0R030i2ADFHV..ALA30200511-200704

main23761-0R040i2AD#..ALA3#200812-201212

(L)

main23761-26010i2ADFTV..ALA30200704-200812

(J)

main23761-26020i2ADFHV..ALA30200704-200812

(J)

sub23761-26021

main23761-26030i2AD#..ALA3#200812-201212

(J)

2325526010VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1

main23255-26010

8271520B40BRACKET,WIRING HARNESS CLAMP

main82715-20B40

9011006034

main90110-06034

9020910021

main90209-10021

9043008017

main90430-08017

9155180835

main91551-80835

9155180890

main91551-80890

9167180830

main91671-80830

9672119017

main96721-19017

19 parts on this diagram · 4 diagrams in section
