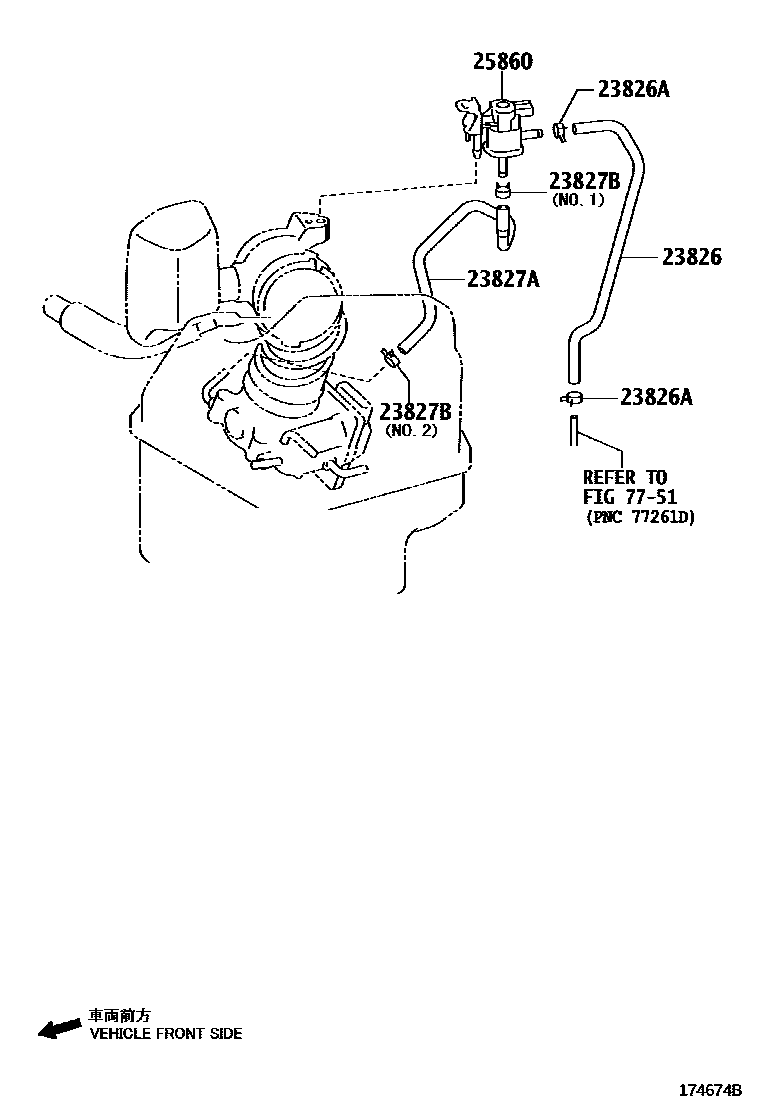

VACUUM PIPING

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-28340i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808

main23826-31091i2GRFE..GSA33200808-201212

NO.1

main23826-31110i2GRFE..GSA33200808-201212

NO.2

main23826-37050i3ZRFAE..ZSA3#200812-201212

NO.1

main23826-37100i3ZRFAE..ZSA3#200812-201212

NO.2

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003×2i2GRFE..GSA33200808-201212

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-28280i1AZFE,2AZFE..ACA30,33,38200808-201212

main23827-37030i3ZRFAE..ZSA3#200812-201212

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-11003i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808

NO.1

main96132-41000i1AZFE,2AZFE..ACA30,33,38200808-201212

NO.2

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0R010i2AD#..ALA3#200812-201209

main25860-0R011i2AD#..ALA3#201209-201212

main25860-28140i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812

main25860-31070i2GRFE..GSA33200808-201212

main90910-12281i3ZRFAE..ZSA3#200812-201212

7751

6 parts on this diagram · 9 diagrams in section
