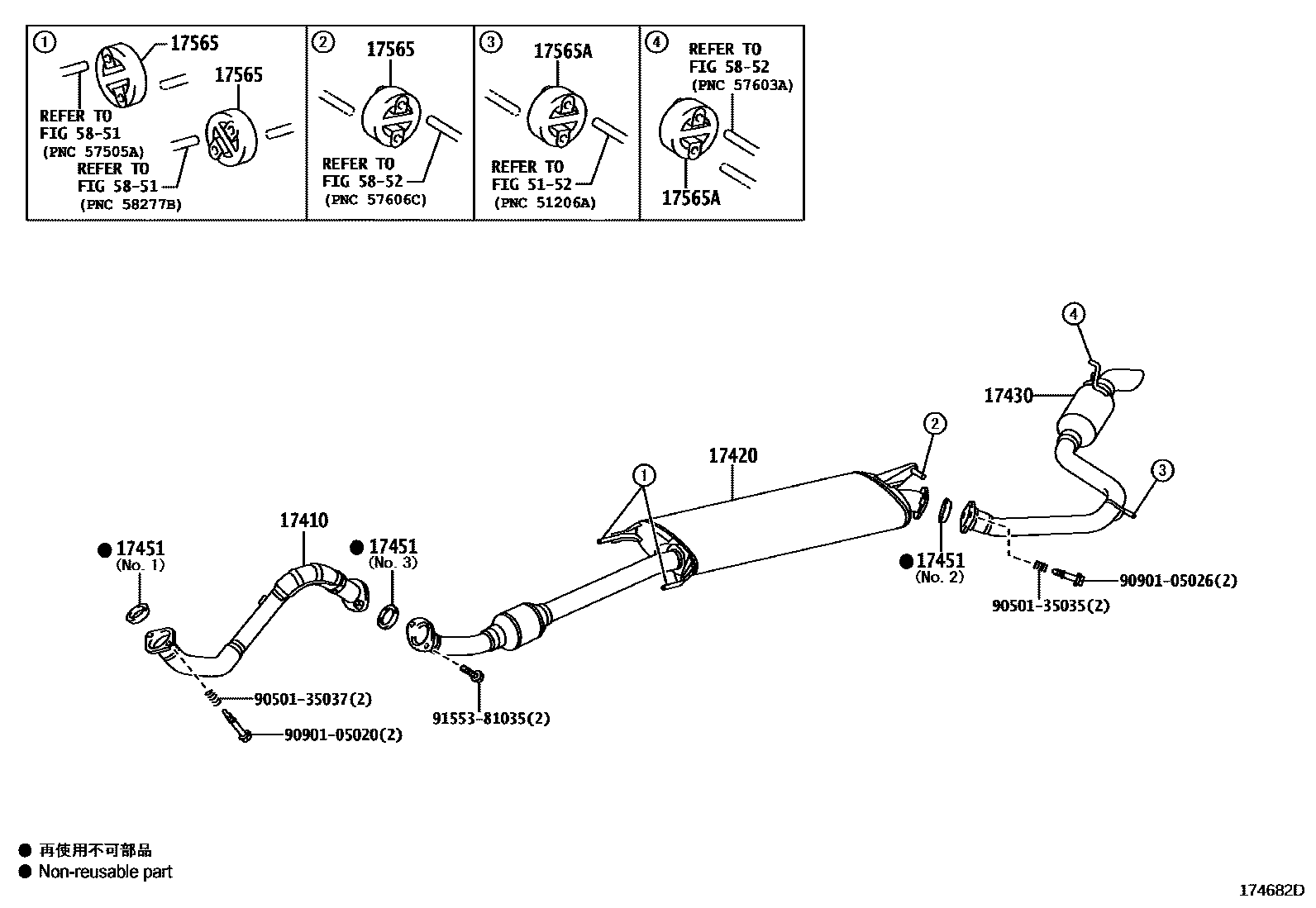

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-26400i2ADFTV..ALA30..DCR200511-200812

*114=TOYOTA/AC4/Y

sub17410-26401

main17410-26410i2ADFHV..ALA30200511-200812

*114=TOYOTA/AC2AC3/Y

sub17410-26411

main17410-26420i2ADFTV..ALA30..DCRE200701-200812

*114=TOYOTA/AC5/Y

sub17410-26421

main17410-26430i2ADFTV..ALA3#..DCR200812-201104

*114=TOYOTA/AF1/Y

sub17410-26431

main17410-26431i2ADFTV..ALA3#..DCR201105-201202

*114=TOYOTA/AF1/Y

sub17410-26432

main17410-26432i2ADFTV..ALA3#..DCR201203-201212

*114=TOYOTA/AF1/Y

main17410-26440i2ADFTV..ALA3#..DCRE200812-201104

*114=TOYOTA/AE3/Y

sub17410-26441

main17410-26441i2ADFTV..ALA3#..DCRE201105-201202

*114=TOYOTA/AE3/Y

sub17410-26442

main17410-26442i2ADFTV..ALA3#..DCRE201203-201212

*114=TOYOTA/AE3/Y

main17410-26450i2ADFHV..ALA30..6F200812-201104

*114=TOYOTA/AF2/Y

sub17410-26451

main17410-26451i2ADFHV..ALA30..6F201105-201202

*114=TOYOTA/AF2/Y

sub17410-26452

main17410-26452i2ADFHV..ALA30..6F201203-201212

*114=TOYOTA/AF2/Y

main17410-26460i2ADFHV..ALA30..6FC200903-201104

*114=TOYOTA/AF2/Y

sub17410-26461

main17410-26461i2ADFHV..ALA30..6FC201105-201202

*114=TOYOTA/AF2/Y

sub17410-26462

main17410-26462i2ADFHV..ALA30..6FC201203-201212

*114=TOYOTA/AF2/Y

main17410-28580i1AZFE,2AZFE..ACA3#200511-200601

sub17410-28581

main17410-28581i1AZFE,2AZFE..ACA30,33,38200602-200903

sub17410-28582

main17410-28582i1AZFE,2AZFE..ACA3#200904-201202

sub17410-28583

main17410-28583i1AZFE,2AZFE..ACA3#201203-201212

main17410-31610i2GRFE..GSA33200708-201202

sub17410-31611

main17410-31611i2GRFE..GSA33201203-201212

main17410-37320i3ZRFAE..ZSA3#200812-201202

*114=TOYOTA/GK8/Y

sub17410-37321

main17410-37321i3ZRFAE..ZSA3#201203-201212

*114=TOYOTA/GK8/Y

17420PIPE ASSY, EXHAUST, CENTER

main17403-31050i2GRFE..GSA33200708-201202

sub17403-31051

main17403-31051i2GRFE..GSA33201203-201212

main17420-28620i2AZFE..ACA33,38..GEN200511-200712

sub17420-28710

main17420-28710i2AZFE..ACA33..ARL;2AZFE..ACA33..X..GCC200511-201105

*114=TOYOTA/GB3/Y

sub17420-28711

main17420-28710i2AZFE..ACA33,38..GEN200511-200712

*114=TOYOTA/GB3/Y,BRAZIL SPEC

sub17420-28711

main17420-28710i2AZFE..ACA33,38..GEN200511-200712

*114=TOYOTA/GB3/Y,ARGENTINA SPEC

sub17420-28711

main17420-28711i1AZFE,2AZFE..ACA3#..ARL,EUR,GCC201106-201202

*114=TOYOTA/GB3/Y

sub17420-28712

main17420-28712i1AZFE,2AZFE..ACA3#..ARL,EUR,GCC201203-201212

*114=TOYOTA/GB3/Y

main17420-28890i2AZFE..ACA33..G..GCC200709-200812

CHINA SPEC

sub17420-28891

main17420-28890i2AZFE..ACA33,38..GEN200712-201105

sub17420-28891

main17420-28890i2AZFE..ACA33..G..GCC200709-200812

BEIJING SPEC

sub17420-28891

main17420-28891i2AZFE..ACA33,38..GEN201106-201202

sub17420-28892

main17420-28892i2AZFE..ACA33,38..GEN201203-201212

main17420-28B00i1AZFE..ACA30..RHD..4FC..G201008-201105

HONG KONG SPEC

sub17420-28B01

main17420-28B01i1AZFE..ACA30..RHD..4FC..G201106-201202

HONG KONG SPEC

sub17420-28B02

main17420-28B02i1AZFE..ACA30..RHD..4FC..G201203-201212

HONG KONG SPEC

main17420-37040i3ZRFAE..ZSA3#200812-201104

*114=TOYOTA/GM7/Y

sub17420-37041

main17420-37041i3ZRFAE..ZSA3#201105-201202

*114=TOYOTA/GM7/Y

sub17420-37042

main17420-37042i3ZRFAE..ZSA3#201203-201212

*114=TOYOTA/GM7/Y

17430PIPE ASSY, EXHAUST, TAIL

main17430-26740i2AD#..ALA30200511-200805

sub17430-26741

main17430-26741i2AD#..ALA30200806-200907

sub17430-26743

main17430-26743i2AD#..ALA3#200908-201202

sub17430-26744

main17430-26744i2AD#..ALA3#201203-201212

main17430-28760i1AZFE,2AZFE..ACA30,31200511-200804

sub17430-28761

main17430-28761i1AZFE..ACA30200805-200901

sub17430-28762

main17430-28762i1AZFE..ACA30200902-200906

sub17430-37371

main17430-28770i2AZFE..ACA33..ARL,GCC200511-200801

sub17430-28771

main17430-28771i2AZFE..ACA33..ARL,EUR,GCC200802-200907

sub17430-28773

main17430-28773i2AZFE..ACA33,38..ARL,EUR,GCC200908-201202

sub17430-28774

main17430-28774i2AZFE..ACA33,38..ARL,EUR,GCC201203-201212

sub17430-28775

main17430-28A10i2AZFE..ACA33..G..GCC200709-200801

BEIJING SPEC

sub17430-28A11

main17430-28A10i2AZFE..ACA33..G..GCC200709-200801

CHINA SPEC

sub17430-28A11

main17430-28A10i2AZFE..ACA33,38..GEN200712-200801

sub17430-28A11

main17430-28A11i2AZFE..ACA33,38..GEN200802-200907

sub17430-28A13

main17430-28A11i2AZFE..ACA33..G..GCC200802-200812

CHINA SPEC

sub17430-28A13

main17430-28A11i2AZFE..ACA33..G..GCC200802-200812

BEIJING SPEC

sub17430-28A13

main17430-28A13i2AZFE..ACA33,38..GEN200908-201212

sub17430-28A14

main17430-31510i2GRFE..GSA33200708-200801

sub17430-31511

main17430-31511i2GRFE..GSA33200802-200907

sub17430-31513

main17430-31513i2GRFE..GSA33200908-201202

sub17430-31514

main17430-31514i2GRFE..GSA33201203-201212

main17430-37370i1AZFE..ACA30200812-200907

sub17430-37371

main17430-37371i1AZFE,3ZRFAE..ACA30,ZSA3#200908-201202

sub17430-37372

main17430-37372i1AZFE,3ZRFAE..ACA30,ZSA3#201203-201212

sub17430-37373

17451GASKET, EXHAUST PIPE

main17451-28040i2AD#..ALA3#200511-201212

NO.1

sub17451-28041

main17451-28050i1AZFE,2AZFE..ACA3#200511-200709

NO.1

sub17451-28070

main17451-28070i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200710-201212

NO.1

sub17451-28040

main17451-31010i1AZFE,2AZFE,2AD#,2GRFE..ACA3#,ALA30,GSA33200511-200806

NO.2

sub17451-31011

main17451-31011i2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30200807-201102

NO.2

sub17451-31012

main17451-31012i1AZFE,2AZFE,2AD#,2GRFE,3ZRFAE..ACA3#,ALA3#,GSA33,ZSA3#201103-201212

NO.2

main90917-06078i2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN200511-201212

NO.3

main90917-06089i2GRFE..GSA33200708-201212

NO.1

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040i2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN200511-201212

main17565-22040i2ADFTV..ALA35200908-201212

NO.1

main17565-28010i2ADFTV..ALA35200908-201212

NO.2

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22030i2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN200511-201212

main17565-22030i2ADFTV..ALA35200908-201212

NO.1

main17565-31040i2ADFTV..ALA35200908-201212

NO.2

5152

5851

5852

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9155381035

main91553-81035

14 parts on this diagram · 5 diagrams in section
