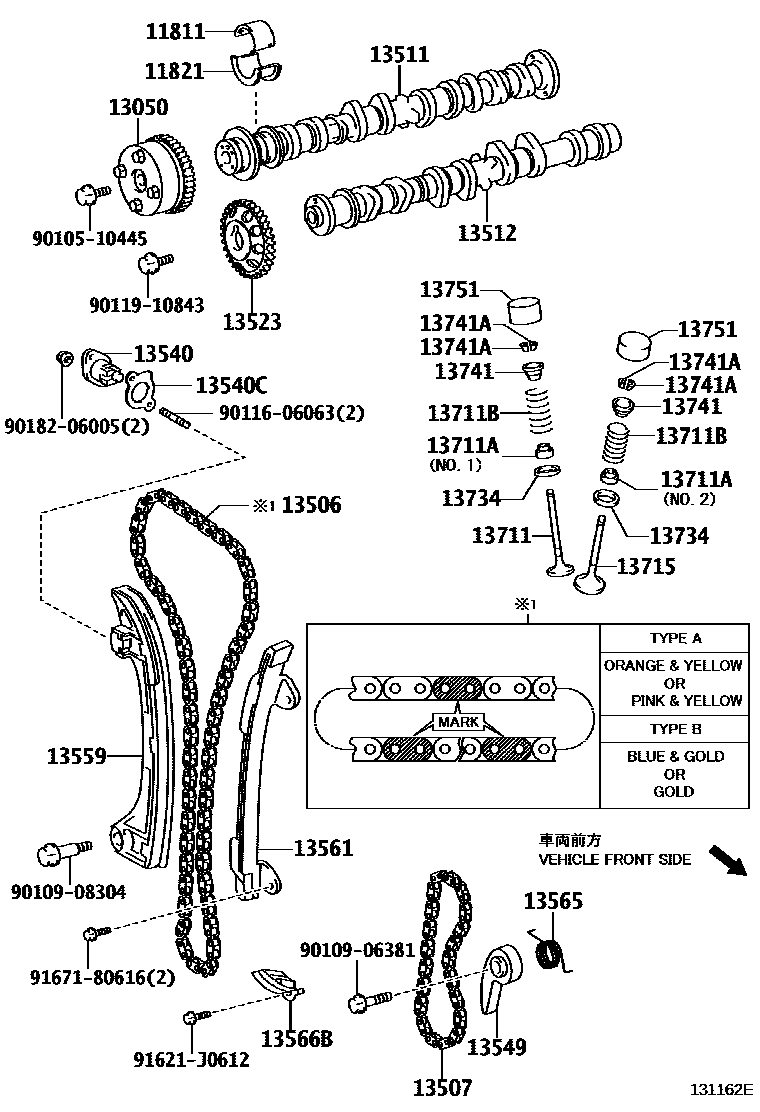

11811BEARING, CAMSHAFT, NO.1
main11811-28010-01i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212 MARK 1
main11811-28010-02i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 MARK 2
main11811-28010-03i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 MARK 3
11821BEARING, CAMSHAFT, NO.2
main11821-28010-01i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 MARK 1
main11821-28010-03i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212 MARK 3
13050GEAR ASSY, CAMSHAFT TIMING
13506CHAIN SUB-ASSY
main13506-28011i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200601-201212 TYPE A:REFER ILLUST.
main13506-28020i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201112 TYPE B:REFER ILLUST.
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
main13501-0H040i2AZFE..ACA31,33..G..(EUR,GCC)200511-201212 (L)
main13501-28060i2AZFE..ACA31,33..G..(EUR,GCC)200511-201212 (J)
13512CAMSHAFT, NO.2
main13502-0H030i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 (L)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
main13552-28010i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 13549PLATE, CHAIN TENSIONER
main13549-28012i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 13559SLIPPER, CHAIN TENSIONER
main13559-28010i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212 13561DAMPER, CHAIN VIBRATION, NO.1
main13561-28010i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212 13565SPRING, CHAIN DAMPER
main13565-28012i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212 13566BGUIDE, TIMING CHAIN
main13566-28010i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
main13751-46040i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212 T=5.08
main13751-46050i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212 T=5.10
main13751-46070i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 T=5.14
main13751-46080i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 T=5.16
main13751-46090i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212 T=5.18
main13751-46100i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212 T=5.20
main13751-46120i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 T=5.24
main13751-46130i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212 T=5.26
main13751-46150i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 T=5.30
main13751-46170i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212 T=5.34
main13751-46180i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212 T=5.36
main13751-46190i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 T=5.38
main13751-46210i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 T=5.42
main13751-46220i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 T=5.44
main13751-46230i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 T=5.46
main13751-46250i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 T=5.50
main13751-46260i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 T=5.52
main13751-46270i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 T=5.54
main13751-46280i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 T=5.56
main13751-46290i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212 T=5.58
main13751-46300i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212 T=5.60
main13751-46310i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212 T=5.62
main13751-46320i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212 T=5.64
main13751-46330i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212 T=5.66
main13751-46360i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 T=5.72
main13751-46370i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212 T=5.74
