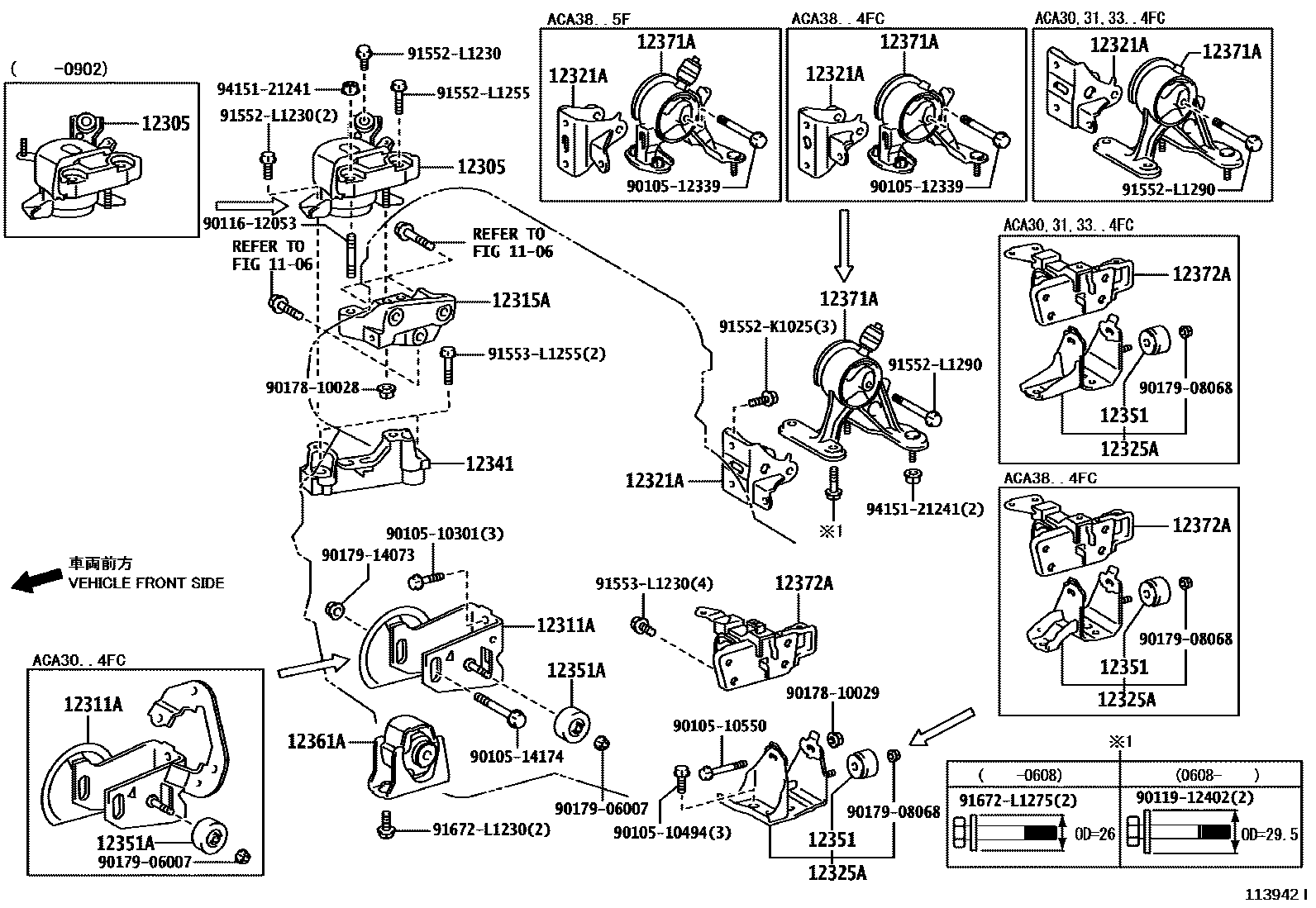

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1106

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-26070i2AD#..ALA30200511-200604

sub12305-26071

main12305-26071i2AD#..ALA30200605-200906

sub12305-26072

main12305-26072i2AD#..ALA3#..6F200907-201212

main12305-26100i2ADFHV..ALA30..6FC200903-200906

sub12305-26101

main12305-26101i2ADFHV..ALA30..6FC200907-201212

main12305-28230i2AZFE..ACA38;2AZFE..ACA33..5F200511-200901

sub12305-28231

main12305-28240i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31..4FC200511-201212

main12305-28300i2AZFE..ACA38;1AZFE,2AZFE..ACA30,33..5F200902-201212

sub12305-28301

main12305-31020i2GRFE..GSA33200708-201212

main12305-37170i3ZRFAE..ZSA3#200812-201212

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-26080i2AD#..ALA30200511-200907

sub12311-26081

main12311-26081i2AD#..ALA3#..6F200908-201212

main12311-26120i2ADFHV..ALA30..6FC200903-201212

main12311-28220i2AZFE..ACA38;1AZFE,2AZFE..ACA30,33..5F200511-201004

sub12311-28310

main12311-28230i2AZFE..ACA33..4FC200511-201003

sub12311-28320

main12311-28270i1AZFE..ACA30..4FC200511-201212

main12311-28310i2AZFE..ACA38;1AZFE,2AZFE..ACA30,33..5F201004-201212

main12311-28320i2AZFE..ACA33..4FC201004-201212

main12311-31070i2GRFE..GSA33200708-201212

main12311-37100i3ZRFAE..ZSA3#..6F200812-201212

main12311-37110i3ZRFAE..ZSA30..CVFC200812-201212

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31110i2GRFE..GSA33200708-201212

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-26020i2AD#..ALA30200511-201212

main12315-28090i1AZFE,2AZFE..ACA30,33,38200511-201212

main12315-37030i3ZRFAE..ZSA3#200812-201212

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-26020i2AD#..ALA30200511-200812

main12321-26050i2ADFHV..ALA30..6FC200903-201212

main12321-26060i2AD#..ALA30..6F200812-201212

main12321-26070i2ADFTV..ALA35200908-201212

main12321-28180i2AZFE..ACA38..5F200511-201212

main12321-28190i2AZFE..ACA38..4FC200511-201212

main12321-28200i1AZFE,2AZFE..ACA30,33..5F200511-201212

main12321-28210i1AZFE,2AZFE..ACA30,33..4FC200511-201212

main12321-31060i2GRFE..GSA33200708-201212

main12321-37070i3ZRFAE..ZSA35200812-201212

main12321-37080i3ZRFAE..ZSA30..6F200812-201212

main12321-37090i3ZRFAE..ZSA30..CVFC200812-201212

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12304-28140i2AZFE..ACA33,38..5F200511-201212

main12304-28150i2AZFE..ACA38..4FC200511-201212

main12304-28160i2AZFE..ACA33..4FC..X;2AZFE..ACA33..4FC..G..(ARL,GEN)200511-201212

main12304-31010i2GRFE..GSA33200708-201212

main12304-37070i3ZRFAE..ZSA3#..6F200812-201212

main12304-37080i3ZRFAE..ZSA30..CVFC200812-201212

main12325-26030i2AD#..ALA3#..6F200511-201212

main12325-26040i2ADFHV..ALA30..6FC200903-201212

12341SPACER, ENGINE MOUNTING

main12341-26010i2GRFE..GSA33200511-200801

sub12341-26011

main12341-26011i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200802-201212

12351DAMPER, ENGINE MOUNTING

main12351-11072i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31..4FC200511-201212

main12351-22090i2AD#..ALA30200511-201212

main12351-22100i2AZFE..ACA38..4FC200511-201212

main12351-23010i2GRFE..GSA33200708-201212

main12351-28100i1AZFE,2AZFE,2ADFHV..ACA30,33,38,ALA30..5F,6FC200511-201212

main12351-28110i3ZRFAE..ZSA30..CVFC200812-201212

main12351-37080i3ZRFAE..ZSA3#..6F200812-201212

12351ADAMPER, ENGINE MOUNTING(FOR INSULATOR)

main12351-28110i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-0R040i2ADFTV..ALA35200908-201212

main12361-26080i2AD#..ALA30200511-200812

main12361-26120i2AD#..ALA30200812-201212

main12361-28230i3ZRFAE..ZSA3#..6F200511-201212

main12361-28240i3ZRFAE..ZSA30..CVFC200812-201212

main12361-28250i1AZFE,2AZFE..ACA30,33,38..4FC200511-201212

main12361-31160i2GRFE..GSA33200708-201212

sub12361-31210

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0R060i2ADFTV..ALA35200908-201212

main12371-26010i2AD#..ALA30200511-200812

main12371-26040i2ADFHV..ALA30..6FC200903-201212

main12371-26050i2AD#..ALA30..6F200812-201212

main12371-28170i2AZFE..ACA38..5F200511-201212

main12371-28190i2AZFE..ACA38..4FC200511-201212

main12371-28200i2AZFE..ACA33..5F200511-201212

main12371-28210i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31..4FC200511-201212

main12371-28220i3ZRFAE..ZSA30..CVFC200812-201212

main12371-31110i2GRFE..GSA33200708-200903

sub12371-31111

main12371-31111i2GRFE..GSA33200904-201212

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-26010i2AD#..ALA30200511-201212

main12372-26040i2ADFHV..ALA30..6FC200903-201212

main12372-28210i2AZFE..ACA33,38..5F200511-201212

main12372-28220i2AZFE..ACA38..4FC;2AZFE..ACA33..4FC..X;2AZFE..ACA33..4FC..G..(ARL,GEN)200511-201212

main12372-31020i2GRFE..GSA33200708-200810

sub12372-31021

main12372-31021i2GRFE..GSA33200811-201212

main12372-37120i3ZRFAE..ZSA3#..6F200812-201212

main12372-37131i3ZRFAE..ZSA30..CVFC200812-201212

9010510301

main90105-10301

9010510494

main90105-10494

9010510550

main90105-10550

9010512339

main90105-12339

9010514174

main90105-14174

9011612053

main90116-12053

9011912402

main90119-12402

9017810028

main90178-10028

9017810029

main90178-10029

9017906007

main90179-06007

9017908068

main90179-08068

9017914073

main90179-14073

91552K1025

main91552-K1025

91552L1230

main91552-L1230

91552L1255

main91552-L1255

91552L1290

main91552-L1290

91553L1230

main91553-L1230

91553L1255

main91553-L1255

91672L1230

main91672-L1230

91672L1275

main91672-L1275

9415121241

main94151-21241

34 parts on this diagram · 7 diagrams in section
