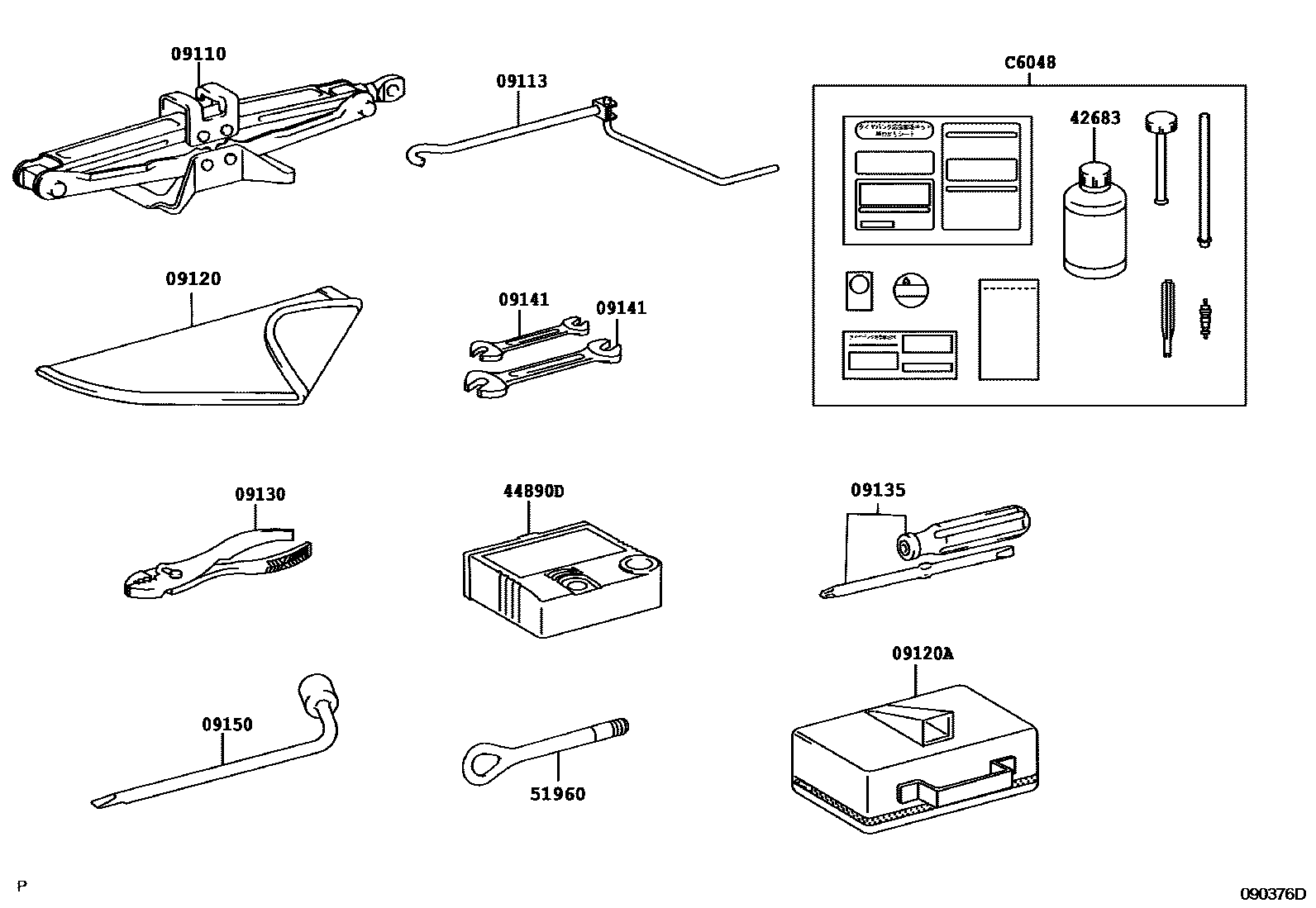

STANDARD TOOL
09113HANDLE, JACK
09120BAG, TOOL
TYPE B
TYPE A
GERMANY SPEC,TYPE A
09120ACASE, TOOL
WITHOUT(CURTAIN & SIDE AIR BAG)&SPARE TIRE-GROUND TIRE(SAME SIZE)
SPARE TIRE-GROUND TIRE(SAME SIZE)
09130PLIERS
09135DRIVER, SCREW
GERMANY SPEC
09141SPANNER
8 X 10
8 X 10,GERMANY SPEC
12 X 14
09150WRENCH, HUB NUT BOX
42683SEAL, TIRE REPAIR
SPARE TIRE-GROUND TIRE(SAME SIZE)
sub42683-42021
sub42683-42021
SPARE TIRE-REPAIR KIT(W/O SPARE TIRE)
sub42683-42022
44890DCOMPRESSOR ASSY, AIR
SPARE TIRE-GROUND TIRE(SAME SIZE)
sub44890-42011
WITHOUT(CURTAIN & SIDE AIR BAG)&SPARE TIRE-GROUND TIRE(SAME SIZE)
sub44890-42011
51960HOOK ASSY, FRONT
C6048REPAIR SET, TIRE
SPARE TIRE-GROUND TIRE(SAME SIZE)
subC6048-42031
WITHOUT(CURTAIN & SIDE AIR BAG)&SPARE TIRE-GROUND TIRE(SAME SIZE)
subC6048-42031
SPARE TIRE-REPAIR KIT(W/O SPARE TIRE)
subC6048-42032
WITHOUT(CURTAIN & SIDE AIR BAG)&SPARE TIRE-GROUND TIRE(SAME SIZE)
subC6048-42032
12 parts on this diagram · 2 diagrams in section
