EPC Data

SPOILER & SIDE MUDGUARD

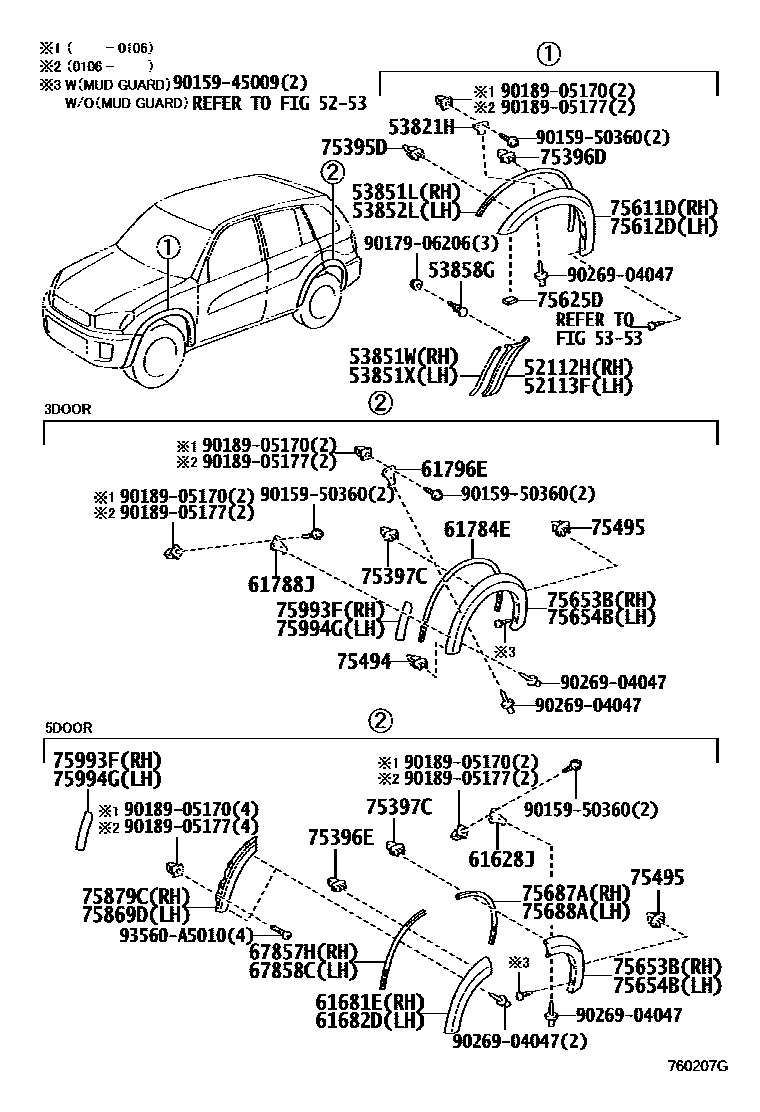

Parts diagram
52112HEXTENSION, FRONT BUMPER, RH
main52112-42040i¥3,140200005-200307
UNPAINTED
main52112-42050-A1i200307-200511
*104,WHITE PEARL CS.,064
sub52112-42040¥3,140
main52112-42050-B0i200307-200511
SILVER ME.,040 ,1D4 ,4R4
sub52112-42040¥3,140
main52112-42050-B0i200005-200307
*104,SILVER ME.,056 ,1D4
sub52112-42040¥3,140
main52112-42050-B1i200307-200511
GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6
sub52112-42040¥3,140
main52112-42050-B1i200008-200307
*104,GRAY MM,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub52112-42040¥3,140
main52112-42050-B1i200005-200008
*104,GRAY MM,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub52112-42040¥3,140
main52112-42050-B2i200408-200511
DK.GRAY MC.,1E0
sub52112-42040¥3,140
main52112-42050-C0i200005-200511
*104,BLACK,202
sub52112-42040¥3,140
main52112-42050-G0i200005-200307
*104,DK.GREEN M.M.,6S3
sub52112-42040¥3,140
main52112-42050-G1i200307-200511
*104,DARK GREEN MC.,6R4
sub52112-42040¥3,140
main52112-42050-G2i200307-200511
LT.GREEN ME.,6T6
sub52112-42040¥3,140
main52112-42050-J0i200005-200511
*104,BLUE MC.,8M6
sub52112-42040¥3,140
52113FEXTENSION, FRONT BUMPER, LH
main52113-42040i¥3,140200005-200307
UNPAINTED
main52113-42050-A1i200307-200511
*104,WHITE PEARL CS.,064
sub52113-42040¥3,140
main52113-42050-B0i200307-200511
SILVER ME.,040 ,1D4 ,4R4
sub52113-42040¥3,140
main52113-42050-B0i200005-200307
*104,SILVER ME.,056 ,1D4
sub52113-42040¥3,140
main52113-42050-B1i200307-200511
GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6
sub52113-42040¥3,140
main52113-42050-B1i200005-200008
*104,GRAY MM,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub52113-42040¥3,140
main52113-42050-B1i200008-200307
*104,GRAY MM,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub52113-42040¥3,140
main52113-42050-B2i200408-200511
DK.GRAY MC.,1E0
sub52113-42040¥3,140
main52113-42050-C0i200005-200511
*104,BLACK,202
sub52113-42040¥3,140
main52113-42050-G0i200005-200307
*104,DK.GREEN M.M.,6S3
sub52113-42040¥3,140
main52113-42050-G1i200307-200511
*104,DARK GREEN MC.,6R4
sub52113-42040¥3,140
main52113-42050-G2i200307-200511
LT.GREEN ME.,6T6
sub52113-42040¥3,140
main52113-42050-J0i200005-200511
*104,BLUE MC.,8M6
sub52113-42040¥3,140
5253
5353
53821HBRACKET, FRONT FENDER, REAR
main53821-42010i¥350200005-200107
sub53821-42011¥370
sub90189-05177¥100
main53821-42011i¥370200107-200511
53851LPAD, FRONT WHEEL OPENING EXTENSION, RH
main53851-42140-B0i200005-200307
*104,GRAY,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1,RH
sub53851-42190¥900
main53851-42140-B0i200307-200511
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6
sub53851-42190¥900
main53851-42140-B0i200307-200511
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6
sub53851-42190¥900
main53851-42140-C0i200307-200511
BLACK,202 ,3Q3 ,6R4 ,8M6
sub53851-42190¥900
main53851-42140-C0i200005-200307
*104,BLACK,202 ,6S3 ,8M6,RH
sub53851-42190¥900
main53851-42140-C0i200307-200511
BLACK,1E0 ,202 ,3Q3 ,6R4 ,8M6
sub53851-42190¥900
main53851-42190i¥900200307-200511
sub53851-42140¥930
main53851-42190-A0i200208-200511
WHITE,064
sub53851-42140¥930
main53851-42190-A0i200005-200208
WHITE,064,COLOR NO.A050 ONLY
sub53851-42140¥930
53851WPAD, FRONT WHEEL OPENING EXTENSION, NO.1
main53851-42100-B0i200307-200511
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6
sub53851-42180¥370
main53851-42100-B0i200005-200307
*104,GRAY,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub53851-42180¥370
main53851-42100-B0i200307-200511
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6
sub53851-42180¥370
main53851-42100-C0i200307-200511
BLACK,1E0 ,202 ,3Q3 ,6R4 ,8M6
sub53851-42180¥370
main53851-42100-C0i200005-200307
*104,BLACK,202 ,6S3 ,8M6
sub53851-42180¥370
main53851-42100-C0i200307-200511
BLACK,202 ,3Q3 ,6R4 ,8M6
sub53851-42180¥370
main53851-42180i¥370200307-200511
main53851-42180-A0i200005-200511
WHITE,064
53851XPAD, FRONT WHEEL OPENING EXTENSION, NO.1
main53851-42100-B0i200307-200511
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6
sub53851-42180¥370
main53851-42100-B0i200005-200307
*104,GRAY,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub53851-42180¥370
main53851-42100-B0i200307-200511
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6
sub53851-42180¥370
main53851-42100-C0i200307-200511
BLACK,1E0 ,202 ,3Q3 ,6R4 ,8M6
sub53851-42180¥370
main53851-42100-C0i200005-200307
*104,BLACK,202 ,6S3 ,8M6
sub53851-42180¥370
main53851-42100-C0i200307-200511
BLACK,202 ,3Q3 ,6R4 ,8M6
sub53851-42180¥370
main53851-42180i¥370200307-200511
main53851-42180-A0i200005-200511
WHITE,064
53852LPAD, FRONT WHEEL OPENING EXTENSION, LH
main53851-42160-B0i200005-200307
*104,GRAY,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1,LH
sub53851-42200¥900
main53851-42160-B0i200307-200511
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6
sub53851-42200¥900
main53851-42160-B0i200307-200511
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6
sub53851-42200¥900
main53851-42160-C0i200307-200511
BLACK,1E0 ,202 ,3Q3 ,6R4 ,8M6
sub53851-42200¥900
main53851-42160-C0i200005-200307
*104,BLACK,202 ,6S3 ,8M6,LH
sub53851-42200¥900
main53851-42160-C0i200307-200511
BLACK,202 ,3Q3 ,6R4 ,8M6
sub53851-42200¥900
main53851-42200i¥900200307-200511
main53851-42200-A0i200005-200511
WHITE,064
53858GBOLT, WHEEL OPENING SET
main53858-60050i¥200200005-200511
61628JEXTENSION, QUARTER OUTER PANEL, FRONT
main61628-42040i¥350200005-200107
sub61628-42041¥370
sub90189-05177¥100
main61628-42041i¥370200107-200511
61681EEXTENSION, REAR WHEEL OPENING, NO.1 RH
main61681-42030i¥5,100200005-200307
UNPAINTED
main61681-42040-A1i200307-200511
*104,WHITE PEARL CS.,064
sub61681-42030¥5,100
main61681-42040-B0i200307-200511
SILVER ME.,040 ,1D4 ,4R4
sub61681-42030¥5,100
main61681-42040-B0i200005-200307
*104,SILVER ME.,056 ,1D4
sub61681-42030¥5,100
main61681-42040-B1i200005-200008
*104,GRAY MM,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub61681-42030¥5,100
main61681-42040-B1i200008-200307
*104,GRAY MM,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub61681-42030¥5,100
main61681-42040-B1i200307-200511
GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6
sub61681-42030¥5,100
main61681-42040-B2i200408-200511
DK.GRAY MC.,1E0
sub61681-42030¥5,100
main61681-42040-C0i200005-200511
*104,BLACK,202
sub61681-42030¥5,100
main61681-42040-G0i200005-200307
*104,DK.GREEN M.M.,6S3
sub61681-42030¥5,100
main61681-42040-G1i200307-200511
*104,DARK GREEN MC.,6R4
sub61681-42030¥5,100
main61681-42040-G2i200307-200511
LT.GREEN ME.,6T6
sub61681-42030¥5,100
main61681-42040-J0i200005-200511
*104,BLUE MC.,8M6
sub61681-42030¥5,100
61682DEXTENSION, REAR WHEEL OPENING, NO.1 LH
main61682-42030i¥5,100200005-200307
UNPAINTED
main61682-42040-A1i200307-200511
WHITE PEARL CS.,064
sub61682-42030¥5,100
main61682-42040-B0i200005-200307
*104,SILVER ME.,056 ,1D4
sub61682-42030¥5,100
main61682-42040-B0i200307-200511
SILVER ME.,040 ,1D4 ,4R4
sub61682-42030¥5,100
main61682-42040-B1i200008-200307
*104,GRAY MM,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub61682-42030¥5,100
main61682-42040-B1i200005-200008
*104,GRAY MM,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub61682-42030¥5,100
main61682-42040-B1i200307-200511
GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6
sub61682-42030¥5,100
main61682-42040-B2i200408-200511
DK.GRAY MC.,1E0
sub61682-42030¥5,100
main61682-42040-C0i200005-200511
*104,BLACK,202
sub61682-42030¥5,100
main61682-42040-G0i200005-200307
*104,DK.GREEN M.M.,6S3
sub61682-42030¥5,100
main61682-42040-G1i200307-200511
*104,DARK GREEN MC.,6R4
sub61682-42030¥5,100
main61682-42040-G2i200307-200511
LT.GREEN ME.,6T6
sub61682-42030¥5,100
main61682-42040-J0i200005-200511
*104,BLUE MC.,8M6
sub61682-42030¥5,100
61784EPAD, REAR WHEEL OPENING EXTENSION, NO.2
main61784-42010-B0i200307-200511
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,RH
sub61784-42020¥610
sub61784-42011¥620
main61784-42010-B0i200005-200307
*104,GRAY,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1,RH
sub61784-42020¥610
sub61784-42011¥620
main61784-42010-C0i200009-200307
*104,BLACK,202 ,6S3 ,8M6,RH
sub61784-42020¥610
sub61784-42011¥620
main61784-42010-C0i200307-200511
BLACK,202 ,8M6,RH
sub61784-42020¥610
sub61784-42011¥620
main61784-42010-C0i200307-200507
*104,BLACK,1E0 ,202 ,6R4 ,8M6,RH
sub61784-42020¥610
sub61784-42011¥620
main61784-42010-C0i200307-200507
*104,BLACK,202 ,6R4 ,8M6,RH
sub61784-42020¥610
sub61784-42011¥620
main61784-42011-B0i200508-200511
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,RH
main61784-42011-C0i200508-200511
BLACK,202 ,6R4 ,8M6,RH
main61784-42011-C0i200508-200511
BLACK,1E0 ,202 ,6R4 ,8M6,RH
main61784-42020-A0i200307-200511
*104,WHITE,064,RH
main61785-42030-B0i200005-200307
*104,GRAY,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1,LH
sub61785-42040¥380
sub61785-42031¥620
main61785-42030-B0i200307-200511
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,LH
sub61785-42040¥380
sub61785-42031¥620
main61785-42030-C0i200307-200511
BLACK,202 ,8M6,LH
sub61785-42040¥380
sub61785-42031¥620
main61785-42030-C0i200307-200507
*104,BLACK,1E0 ,202 ,6R4 ,8M6,LH
sub61785-42040¥380
sub61785-42031¥620
main61785-42030-C0i200307-200507
*104,BLACK,202 ,6R4 ,8M6,LH
sub61785-42040¥380
sub61785-42031¥620
main61785-42030-C0i200005-200307
*104,BLACK,202 ,6S3 ,8M6,LH
sub61785-42040¥380
sub61785-42031¥620
main61785-42031-B0i200508-200511
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,LH
main61785-42031-C0i200508-200511
BLACK,1E0 ,202 ,6R4 ,8M6,LH
main61785-42031-C0i200508-200511
BLACK,202 ,6R4 ,8M6,LH
main61785-42040-A0i200307-200511
*104,WHITE,064,LH
61788JBRACKET, REAR WHEEL OPENING, NO.5
main61788-42020i¥350200005-200107
sub61788-42021¥370
sub90189-05177¥100
main61788-42021i¥370200107-200511
61796EBRACKET, REAR WHEEL OPENING, NO.7
main61796-42010i¥350200005-200107
sub61796-42011¥370
sub90189-05177¥100
main61796-42011i¥370200107-200511
67857HPROTECTOR, REAR DOOR PANEL, RH
main67857-42010-B0i200307-200511
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6
sub67857-42020¥710
main67857-42010-B0i200005-200307
*104,GRAY,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub67857-42020¥710
main67857-42010-B0i200307-200511
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6
sub67857-42020¥710
main67857-42010-C0i200307-200511
BLACK,202 ,3Q3 ,6R4 ,8M6
sub67857-42020¥710
main67857-42010-C0i200005-200307
*104,BLACK,202 ,6S3 ,8M6
sub67857-42020¥710
main67857-42010-C0i200307-200511
BLACK,1E0 ,202 ,3Q3 ,6R4 ,8M6
sub67857-42020¥710
main67857-42020-A0i200307-200511
WHITE,064
67858CPROTECTOR, REAR DOOR PANEL, LH
main67857-42010-B0i200307-200511
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6
sub67857-42020¥710
main67857-42010-B0i200005-200307
*104,GRAY,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub67857-42020¥710
main67857-42010-B0i200307-200511
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6
sub67857-42020¥710
main67857-42010-C0i200307-200511
BLACK,1E0 ,202 ,3Q3 ,6R4 ,8M6
sub67857-42020¥710
main67857-42010-C0i200005-200307
*104,BLACK,202 ,6S3 ,8M6
sub67857-42020¥710
main67857-42010-C0i200307-200511
BLACK,202 ,3Q3 ,6R4 ,8M6
sub67857-42020¥710
main67857-42020-A0i200307-200511
WHITE,064
75395DCLIP, OUTSIDE MOULDING, NO.1
main75395-42020i¥550200005-200511
sub75494-42010¥160
75396DCLIP, OUTSIDE MOULDING, NO.2
main75396-42020i¥130200005-200511
sub75397-42010¥130
75396ECLIP, OUTSIDE MOULDING, NO.2
main75396-42020i¥130200005-200511
sub75397-42010¥130
75397CCLIP, OUTSIDE MOULDING, NO.3
main75397-42010i¥130200005-200511
75494CLIP, OUTSIDE MOULDING, NO.3
main75494-42010i¥160200005-200511
75495CLIP, OUTSIDE MOULDING, NO.4
main75495-42010i¥220200005-200511
75611DMOULDING, FRONT FENDER, OUTSIDE FRONT RH
main75611-42070i¥7,400200005-200307
UNPAINTED
main75611-42080-A1i200307-200511
WHITE PEARL CS.,064
sub75611-42070¥7,400
main75611-42080-B0i200307-200511
SILVER ME.,040 ,1D4 ,4R4
sub75611-42070¥7,400
main75611-42080-B0i200005-200307
*104,SILVER ME.,056 ,1D4
sub75611-42070¥7,400
main75611-42080-B1i200307-200511
GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6
sub75611-42070¥7,400
main75611-42080-B1i200008-200307
*104,GRAY MM,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub75611-42070¥7,400
main75611-42080-B1i200005-200008
*104,GRAY MM,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub75611-42070¥7,400
main75611-42080-B2i200408-200511
DK.GRAY MC.,1E0
sub75611-42070¥7,400
main75611-42080-C0i200005-200511
*104,BLACK,202
sub75611-42070¥7,400
main75611-42080-G0i200005-200307
*104,DK.GREEN M.M.,6S3
sub75611-42070¥7,400
main75611-42080-G1i200307-200511
*104,DARK GREEN MC.,6R4
sub75611-42070¥7,400
main75611-42080-G2i200307-200511
LT.GREEN ME.,6T6
sub75611-42070¥7,400
main75611-42080-J0i200005-200511
*104,BLUE MC.,8M6
sub75611-42070¥7,400
75612DMOULDING, FRONT FENDER, OUTSIDE FRONT LH
main75612-42070i¥7,400200005-200307
UNPAINTED
main75612-42080-A1i200307-200511
WHITE PEARL CS.,064
sub75612-42070¥7,400
main75612-42080-B0i200307-200511
SILVER ME.,040 ,1D4 ,4R4
sub75612-42070¥7,400
main75612-42080-B0i200005-200307
*104,SILVER ME.,056 ,1D4
sub75612-42070¥7,400
main75612-42080-B1i200008-200307
*104,GRAY MM,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub75612-42070¥7,400
main75612-42080-B1i200307-200511
GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6
sub75612-42070¥7,400
main75612-42080-B1i200005-200008
*104,GRAY MM,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub75612-42070¥7,400
main75612-42080-B2i200408-200511
DK.GRAY MC.,1E0
sub75612-42070¥7,400
main75612-42080-C0i200005-200511
*104,BLACK,202
sub75612-42070¥7,400
main75612-42080-G0i200005-200307
*104,DK.GREEN M.M.,6S3
sub75612-42070¥7,400
main75612-42080-G1i200307-200511
*104,DARK GREEN MC.,6R4
sub75612-42070¥7,400
main75612-42080-G2i200307-200511
LT.GREEN ME.,6T6
sub75612-42070¥7,400
main75612-42080-J0i200005-200511
*104,BLUE MC.,8M6
sub75612-42070¥7,400
75625DPAD, FRONT FENDER OUTSIDE MOULDING, UPPRER
main75625-42010i¥170200005-200511
75653BMOULDING, QUARTER OUTSIDE, RH NO.3
main75653-42040i¥10,600200005-200307
UNPAINTED
main75653-42050-A0i200307-200511
*104,WHITE PEARL CS.,064
sub75653-42040¥10,600
main75653-42050-B0i200005-200307
*104,SILVER ME.,056 ,1D4
sub75653-42040¥10,600
main75653-42050-B0i200307-200511
SILVER ME.,040 ,1D4 ,4R4
sub75653-42040¥10,600
main75653-42050-B0i200307-200511
*104,SILVER ME.,040 ,1D4 ,4R4
sub75653-42040¥10,600
main75653-42050-B1i200005-200307
*104,GRAY MM,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub75653-42040¥10,600
main75653-42050-B1i200307-200511
GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6
sub75653-42040¥10,600
main75653-42050-B2i200408-200511
DK.GRAY MC.,1E0
sub75653-42040¥10,600
main75653-42050-C0i200005-200511
*104,BLACK,202
sub75653-42040¥10,600
main75653-42050-G0i200005-200307
*104,DK.GREEN M.M.,6S3
sub75653-42040¥10,600
main75653-42050-G1i200307-200511
*104,DARK GREEN MC.,6R4
sub75653-42040¥10,600
main75653-42050-G2i200307-200511
LT.GREEN ME.,6T6
sub75653-42040¥10,600
main75653-42050-J0i200005-200511
*104,BLUE MC.,8M6
sub75653-42040¥10,600
main75653-42060i¥6,500200005-200307
UNPAINTED
main75653-42070-A1i200307-200511
WHITE PEARL CS.,064
sub75653-42060¥6,500
main75653-42070-B0i200307-200511
SILVER ME.,040 ,1D4 ,4R4
sub75653-42060¥6,500
main75653-42070-B0i200005-200307
*104,SILVER ME.,056 ,1D4
sub75653-42060¥6,500
main75653-42070-B1i200008-200307
*104,GRAY MM,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub75653-42060¥6,500
main75653-42070-B1i200005-200008
*104,GRAY MM,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub75653-42060¥6,500
main75653-42070-B1i200307-200511
GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6
sub75653-42060¥6,500
main75653-42070-B2i200408-200511
*104,DK.GRAY MC.,1E0
sub75653-42060¥6,500
main75653-42070-C0i200005-200511
*104,BLACK,202
sub75653-42060¥6,500
main75653-42070-G0i200005-200307
*104,DK.GREEN M.M.,6S3
sub75653-42060¥6,500
main75653-42070-G1i200307-200511
*104,DARK GREEN MC.,6R4
sub75653-42060¥6,500
main75653-42070-G2i200307-200511
LT.GREEN ME.,6T6
sub75653-42060¥6,500
main75653-42070-J0i200005-200511
*104,BLUE MC.,8M6
sub75653-42060¥6,500
75654BMOULDING, QUARTER, OUTSIDE NO.4
main75654-42040i¥10,600200005-200307
UNPAINTED
main75654-42050-A0i200307-200511
WHITE PEARL CS.,064
sub75654-42040¥10,600
main75654-42050-B0i200005-200307
*104,SILVER ME.,056 ,1D4
sub75654-42040¥10,600
main75654-42050-B0i200307-200511
SILVER ME.,040 ,1D4 ,4R4
sub75654-42040¥10,600
main75654-42050-B1i200307-200511
GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6
sub75654-42040¥10,600
main75654-42050-B1i200005-200307
*104,GRAY MM,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub75654-42040¥10,600
main75654-42050-B2i200408-200511
DK.GRAY MC.,1E0
sub75654-42040¥10,600
main75654-42050-C0i200005-200511
*104,BLACK,202
sub75654-42040¥10,600
main75654-42050-G0i200005-200307
*104,DK.GREEN M.M.,6S3
sub75654-42040¥10,600
main75654-42050-G1i200307-200511
*104,DARK GREEN MC.,6R4
sub75654-42040¥10,600
main75654-42050-G2i200307-200511
LT.GREEN ME.,6T6
sub75654-42040¥10,600
main75654-42050-J0i200005-200511
*104,BLUE MC.,8M6
sub75654-42040¥10,600
main75654-42060i¥6,500200005-200307
UNPAINTED
main75654-42070-A1i200307-200511
WHITE PEARL CS.,064
sub75654-42060¥6,500
main75654-42070-B0i200005-200307
*104,SILVER ME.,056 ,1D4
sub75654-42060¥6,500
main75654-42070-B0i200307-200511
SILVER ME.,040 ,1D4 ,4R4
sub75654-42060¥6,500
main75654-42070-B1i200008-200307
*104,GRAY MM,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub75654-42060¥6,500
main75654-42070-B1i200005-200008
*104,GRAY MM,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub75654-42060¥6,500
main75654-42070-B1i200307-200511
*104,GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6
sub75654-42060¥6,500
main75654-42070-B2i200408-200511
*104,DK.GRAY MC.,1E0
sub75654-42060¥6,500
main75654-42070-C0i200005-200511
*104,BLACK,202
sub75654-42060¥6,500
main75654-42070-G0i200005-200307
*104,DK.GREEN M.M.,6S3
sub75654-42060¥6,500
main75654-42070-G1i200307-200511
*104,DARK GREEN MC.,6R4
sub75654-42060¥6,500
main75654-42070-G2i200307-200511
LT.GREEN ME.,6T6
sub75654-42060¥6,500
main75654-42070-J0i200005-200511
*104,BLUE MC.,8M6
sub75654-42060¥6,500
75687APROTECTOR, QUARTER MOULDING, LOWER REAR RH
main75687-42010-B0i200307-200507
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
sub75687-42020¥900
sub75687-42011¥1,450
main75687-42010-B0i200005-200307
*104,GRAY,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub75687-42020¥900
sub75687-42011¥1,450
main75687-42010-B0i200307-200507
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
sub75687-42020¥900
sub75687-42011¥1,450
main75687-42010-C0i200307-200507
BLACK,1E0 ,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050
sub75687-42020¥900
sub75687-42011¥1,450
main75687-42010-C0i200005-200307
*104,BLACK,202 ,6S3 ,8M6
sub75687-42020¥900
sub75687-42011¥1,450
main75687-42010-C0i200307-200507
BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050
sub75687-42020¥900
sub75687-42011¥1,450
main75687-42011-B0i200508-200511
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
main75687-42011-C0i200508-200511
BLACK,202 ,6R4 ,8M6,EXCEPT COLOR NO.A050
main75687-42011-C0i200508-200511
BLACK,1E0 ,202 ,6R4 ,8M6,EXCEPT COLOR NO.A050
main75687-42020-A0i200307-200511
WHITE,064,WHITE
75688APROTECTOR, QUARTER MOULDING, LOWER REAR LH
main75688-42020-B0i200005-200307
*104,GRAY,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
sub75688-42030¥900
sub75688-42021¥1,450
main75688-42020-B0i200307-200507
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,BLACK
sub75688-42030¥900
sub75688-42021¥1,450
main75688-42020-C0i200307-200507
BLACK,1E0 ,202 ,3Q3 ,6R4 ,8M6,BLACK
sub75688-42030¥900
sub75688-42021¥1,450
main75688-42020-C0i200005-200307
*104,BLACK,202 ,6S3 ,8M6
sub75688-42030¥900
sub75688-42021¥1,450
main75688-42020-C0i200307-200507
BLACK,202 ,3Q3 ,6R4 ,8M6,BLACK
sub75688-42030¥900
sub75688-42021¥1,450
main75688-42021-B0i200508-200511
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,BLACK
main75688-42021-C0i200508-200511
BLACK,1E0 ,202 ,6R4 ,8M6,BLACK
main75688-42021-C0i200508-200511
BLACK,202 ,6R4 ,8M6,BLACK
main75688-42030-A0i200307-200511
WHITE,064,WHITE
75869DRETAINER, QUARTER OPENING, LH
main75869-42020i¥2,300200005-200107
sub75869-42021¥2,300
sub90189-05177¥100
main75869-42021i¥2,300200107-200511
75879CRETAINER, QUARTER OPENING, RH
main75879-42020i¥2,300200005-200107
sub75879-42021¥2,300
sub90189-05177¥100
main75879-42021i¥2,300200107-200511
75993FSTRIPE, QUARTER, FRONT RH
main75991-42040i¥1,450200005-200511
main75993-42030i¥1,780200005-200511
75994GSTRIPE, QUARTER, FRONT LH
main75992-42030i¥1,450200005-200511
main75994-42030i¥1,780200005-200511
9015945009
main90159-45009¥120
9015950360
main90159-50360¥60
9017906206
main90179-06206¥70
9018905170
main90189-05170¥120
9018905177
main90189-05177¥100
9026904047
main90269-04047¥70
93560A5010
main93560-A5010¥70

42 parts on this diagram · 2 diagrams in section

SPOILER & SIDE MUDGUARD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
