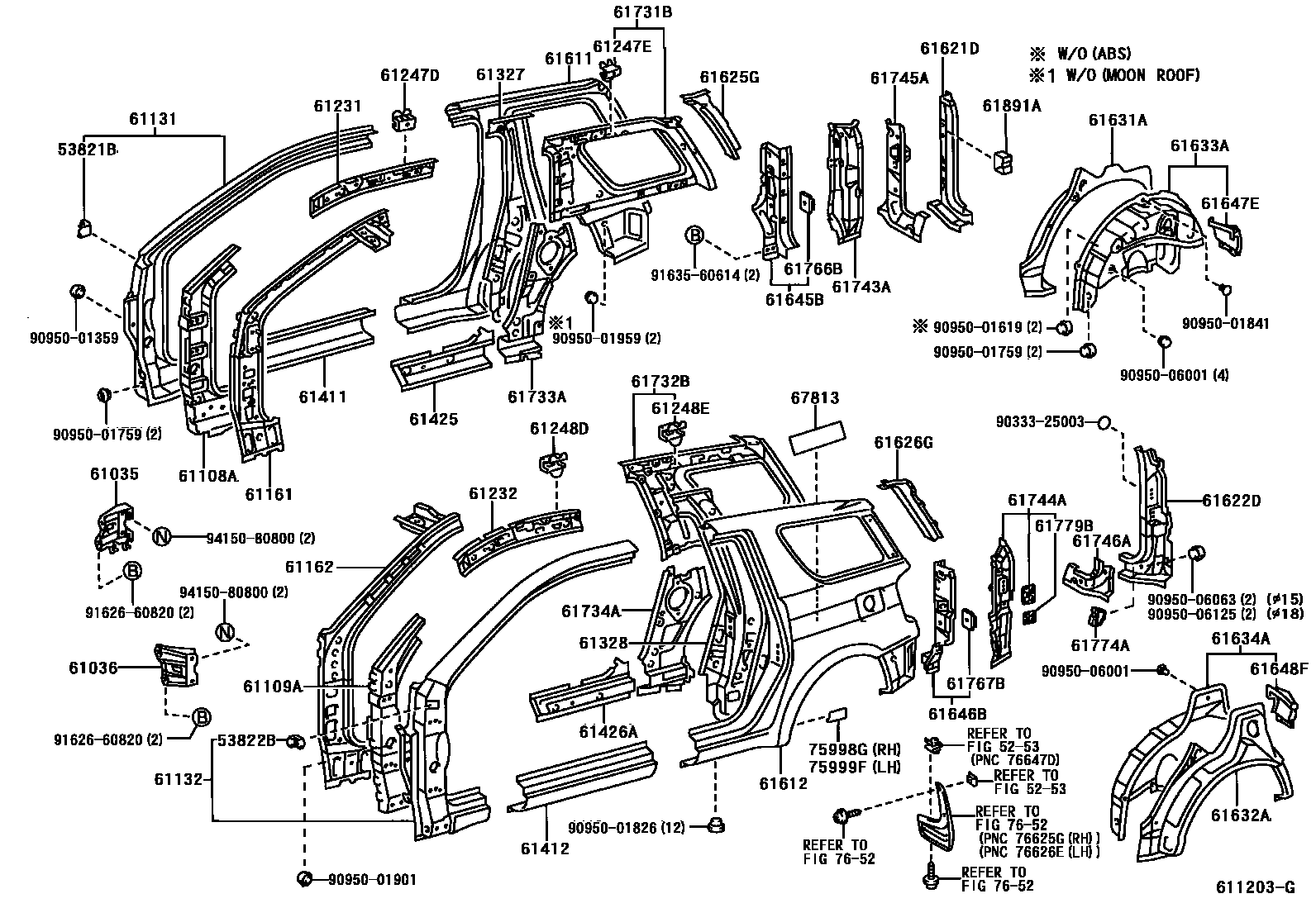

SIDE MEMBER
5253
53821BBRACKET, FRONT FENDER, REAR RH
53822BBRACKET, FRONT FENDER, REAR LH
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
W(FRONT PILLAR ANTENNA)
W(FRONT PILLAR ANTENNA)
61132PILLAR, FRONT BODY, UPPER OUTER LH
W(FRONT PILLAR ANTENNA)
W(FRONT PILLAR ANTENNA)
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61247DBRACKET, ASSIST GRIP, RH
61247EBRACKET, ASSIST GRIP, NO.4 RH
61248DBRACKET, ASSIST GRIP, LH
61248EBRACKET, ASSIST GRIP, NO.4 RH
61327REINFORCEMENT, CENTER BODY PILLAR, OUTER RH
61328REINFORCEMENT, CENTER BODY PILLAR, OUTER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61425REINFORCEMENT, ROCKER PANEL, NO.4 RH
61426AREINFORCEMENT, ROCKER PANEL, NO.4 LH
61611PANEL, QUARTER, RH
W(QUARTER OUTSIDE MOULDING)
W(QUARTER OUTSIDE MOULDING)
61612PANEL, QUARTER, LH
W(QUARTER OUTSIDE MOULDING)
W(QUARTER OUTSIDE MOULDING)
61621DTROUGH, BACK DOOR OPENING, RH
61622DTROUGH, BACK DOOR OPENING, LH
61625GEXTENSION, QUARTER PANEL, REAR RH
61626GEXTENSION, QUARTER PANEL, REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61647EREINFORCEMENT, QUARTER PANEL, LOWER RH
61648FREINFORCEMENT, QUARTER PANEL, LOWER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61733APANEL, ROOF SIDE, INNER FRONT RH
61734APANEL, ROOF SIDE, INNER FRONT LH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61774APATCH, BACK DOOR OPENING, LOWER LH
61779BPLATE, BACK DOOR OPENING, LOWER LH
61891ARETAINER, BACK DOOR UPPER HINGE, RH
67813PAD, QUARTER PANEL SILENCER
75998GSTRIPE, QUARTER, LOWER RH
W(OVER FENDER)
75999FSTRIPE, QUARTER, LOWER LH
W(OVER FENDER)
7652
9033325003
main90333-25003
9095001359
main90950-01359
9095001619
main90950-01619
9095001759
main90950-01759
9095001826
main90950-01826
9095001841
main90950-01841
9095001901
main90950-01901
9095001959
main90950-01959
9095006001
main90950-06001
9095006063
main90950-06063
9095006125
main90950-06125
9162660820
main91626-60820
9163560614
main91635-60614
9415080800
main94150-80800
68 parts on this diagram · 4 diagrams in section
