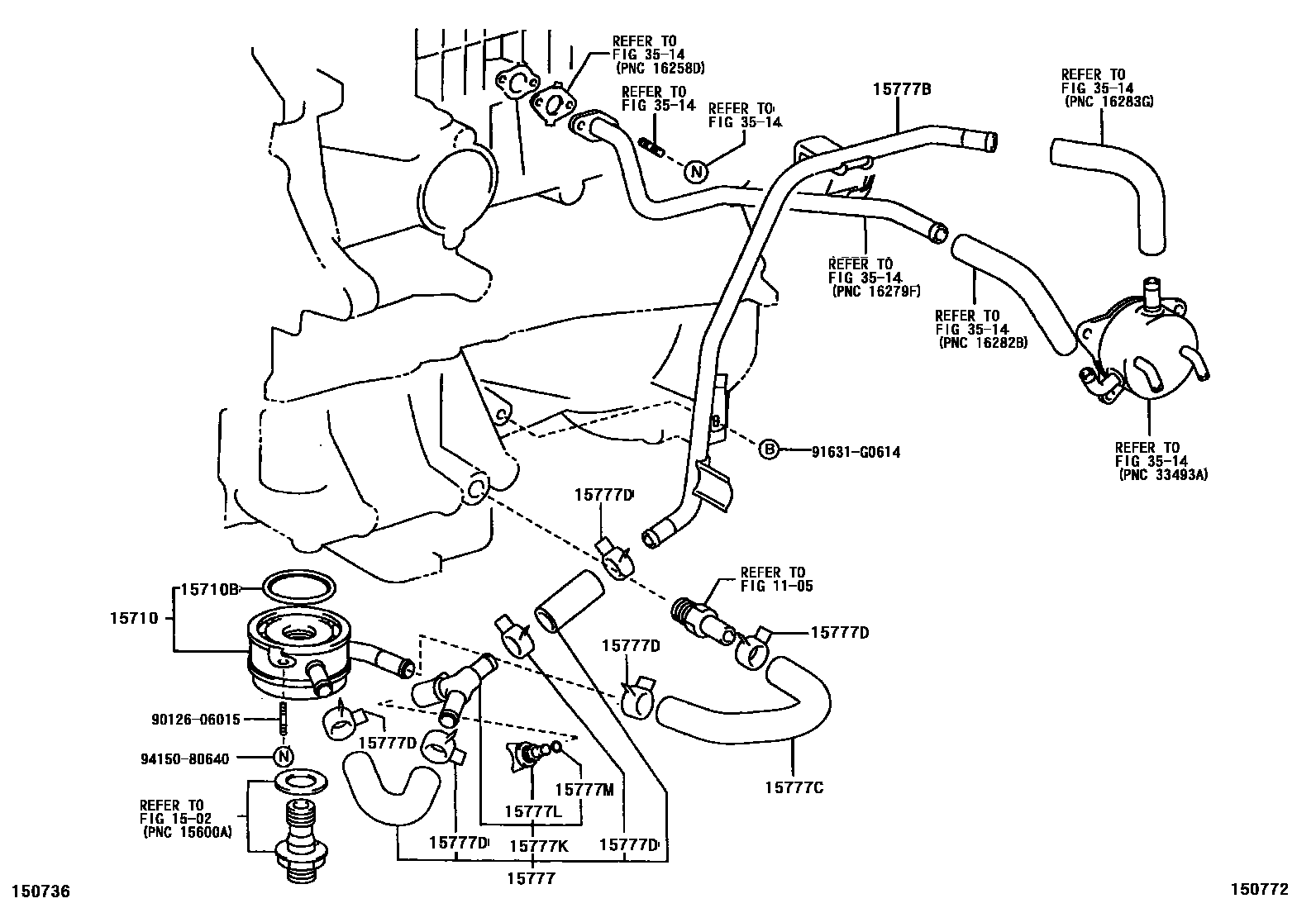

ENGINE OIL COOLER

0001 1 0002 1 0003 1

1105

1502

15710COOLER ASSY, OIL

main15710-27030i1CDFTV..CLA2#200105-200307

main15710-28020i2AZFE..ACA22,23¥39,500200307

15710BRING, O(FOR OIL COOLER)

main90301-52006i2AZFE..ACA22,23¥0200307

15777HOSE, OIL COOLER

main15777-27020i1CDFTV..CLA2#¥1,260200105-200307

main16267-28020i2AZFE..ACA22,23¥1,280200307

sub16267-28080¥720

15777BPIPE, OIL COOLER

main15768-27020i1CDFTV..CLA2#¥3,170200105-200307

main16279-28010i2AZFE..ACA22,23..MTM¥3,290200307

main16288-28020i2AZFE..ACA22,23..ATM¥4,730200307

15777CHOSE, OIL COOLER

main15778-27030i1CDFTV..CLA2#¥2,330200105-200307

main16281-28010i2AZFE..ACA22,23¥490200307

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main96134-41900i2AZFE..ACA22,23¥90200307

15777KCOCK ASSY, DRAIN(FOR OIL COOLER HOSE)

main90910-09119i2AZFE..ACA22,23200307

15777LPLUG,AIR(FOR OIL COOLER DRAIN COCK)

main23322-54010i2AZFE..ACA22,23¥380200307

15777MRING, O(FOR OIL COOLER DRAIN COCK)

main16492-21050i2AZFE..ACA22,23¥210200307

3514

9012606015

main90126-06015¥110

91631G0614

main91631-G0614¥60

9415080640

main94150-80640¥220

15 parts on this diagram · 3 diagrams in section
