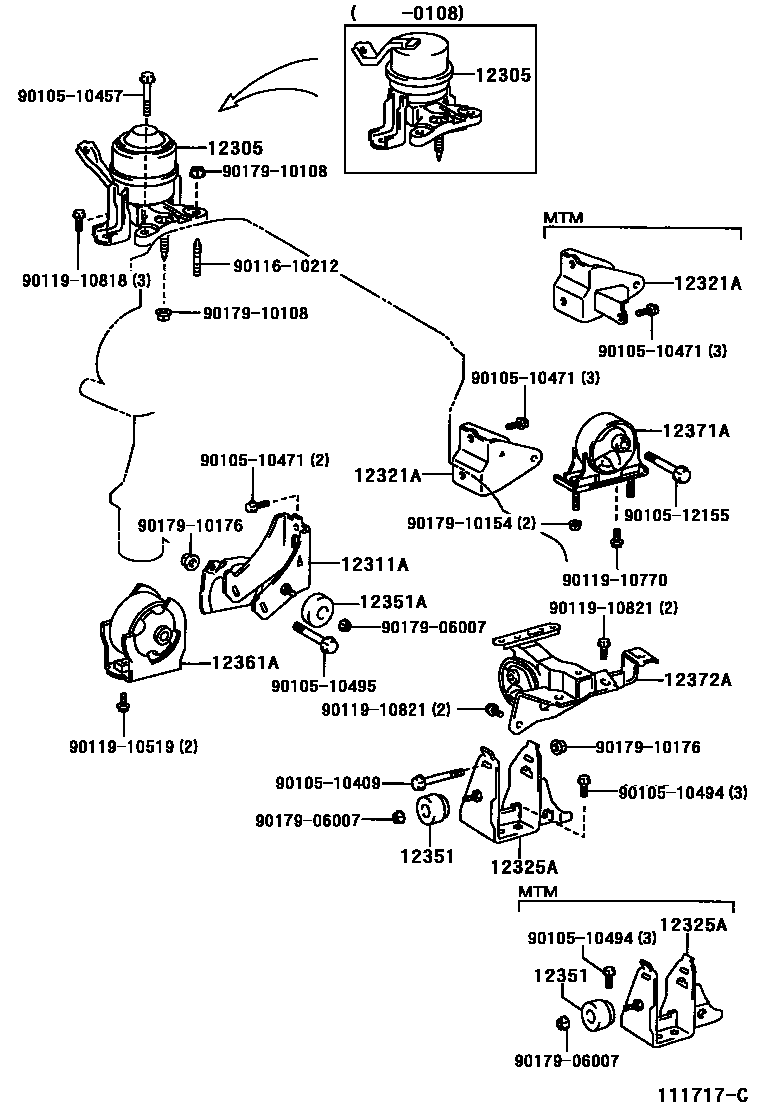

MOUNTING

0001 1 0002 1 0003 1 0004 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-22100i1ZZFE..ZCA2#200005-200307

main12305-27040i1CDFTV..CLA2#200105-200307

main12305-28060i1AZFE..ACA2#200005-200108

main12305-28150i1AZFE..ACA2#200108-200307

sub12305-28151

main12305-28151i1AZFE,2AZFE..ACA2#200307

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-22060i1ZZFE..ZCA2#200005-200307

main12311-27050i1CDFTV..CLA2#200105-200307

main12311-28040i1AZFE..ACA2#200005-200307

main12311-28190i1AZFE,2AZFE..ACA2#..ATM200307

main12311-28200i1AZFE,2AZFE..ACA2#..MTM200307

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-22080i1ZZFE..ZCA2#200005-200008

sub12321-22081

main12321-22081i1ZZFE..ZCA2#200008-200307

main12321-27050i1CDFTV..CLA2#200105-200307

main12321-28050i1AZFE,2AZFE..ACA2#..MTM200005-200307

main12321-28060i1AZFE,2AZFE..ACA2#..ATM200005-200307

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-22070i1ZZFE..ZCA2#200005-200307

main12325-27050i1CDFTV..CLA2#200105-200307

main12325-28040i1AZFE..ACA2#..MTM200005-200307

main12325-28050i1AZFE,2AZFE..ACA2#..ATM200005-200307

12351DAMPER, ENGINE MOUNTING

main12351-16070i1CDFTV..CLA2#200105-200307

NO.1

main12351-64060i1ZZFE..ZCA2#200005-200307

NO.1

main12351-74010i1CDFTV..CLA2#200105-200307

NO.2

main12351-74140i1ZZFE..ZCA2#200005-200307

NO.2

12351ADAMPER, ENGINE MOUNTING(FOR INSULATOR)

main12351-22020i1AZFE..ACA2#200005-200307

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-21010i1AZFE..ACA2#200005-200307

main12361-22080i1CDFTV..CLA2#200105-200307

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-22121i1ZZFE..ZCA2#200005-200008

sub12371-22201

main12371-22200i1ZZFE..ZCA2#200008-200307

sub12371-22201

main12371-22201i1ZZFE..ZCA2#200307

main12371-28020i1CDFTV..CLA2#200105-200307

sub12371-28021

main12371-28021i1CDFTV..CLA2#200307

main12371-28030i1AZFE..ACA2#200005-200307

sub12371-28031

main12371-28031i1AZFE,2AZFE..ACA2#200307

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-22050i1ZZFE..ZCA2#200005-200307

sub12372-22051

main12372-22051i1ZZFE..ZCA2#200307

main12372-27050i1CDFTV..CLA2#200105-200307

main12372-28030i1AZFE..ACA2#..MTM200005-200307

sub12372-28031

main12372-28031i1AZFE,2AZFE..ACA2#..MTM200307

main12372-28040i1AZFE..ACA2#..ATM200005-200307

sub12372-28041

main12372-28041i1AZFE,2AZFE..ACA2#..ATM200307

9010510409

main90105-10409

9010510457

main90105-10457

9010510471

main90105-10471

9010510494

main90105-10494

9010510495

main90105-10495

9010512155

main90105-12155

9011610212

main90116-10212

9011910519

main90119-10519

9011910770

main90119-10770

9011910818

main90119-10818

9011910821

main90119-10821

9017906007

main90179-06007

9017910108

main90179-10108

9017910154

main90179-10154

9017910176

main90179-10176

24 parts on this diagram · 4 diagrams in section
