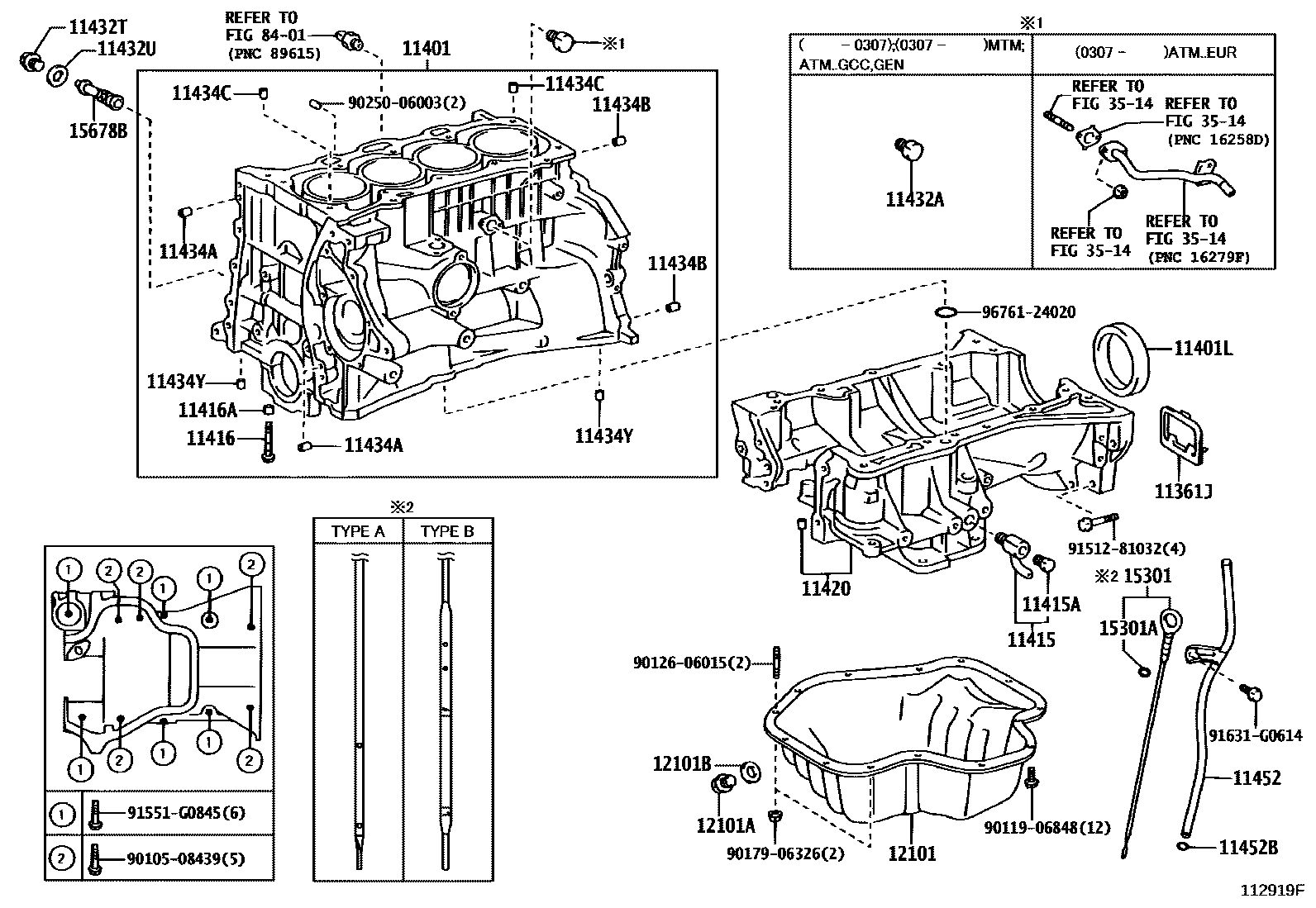

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-22021i1ZZFE..ZCA2#200307

main11361-28010i1AZFE..ACA2#200005-200307

11401BLOCK SUB-ASSY, CYLINDER

main11401-29705i1CDFTV..CLA2#200105-200307

main11401-29745i1CDFTV..CLA2#200307

main11410-29086i1ZZFE..ZCA2#200005-200212

main11410-29105i2AZFE..ACA22,23200307-200404

main11410-29115i1AZFE..ACA20,21200307-200404

main11410-29135i1ZZFE..ZCA2#200212-200307

sub11410-29136

sub16258-28030

sub16268-22021

sub16268-22042

sub16268-22061

sub16268-22071

sub16268-22101

sub16268-22111

sub16268-22161

main11410-29165i1ZZFE..ZCA2#200307

sub11410-29166

sub16258-28030

sub16268-22021

sub16268-22101

sub16268-22111

sub16268-22161

sub16268-22171

main11410-29185i2AZFE..ACA22,23200404-200510

main11410-29195i1AZFE..ACA20,21200404-200510

main11410-29315i1AZFE..ACA20,21200510-200511

sub11410-29316

main11410-29325i2AZFE..ACA22,23200510-200511

sub11410-29326

11401LSEAL, ENGINE REAR OIL

main90311-76001i1ZZFE..ZCA2#200307

sub90311-76003

main90311-89003i1AZFE..ACA2#200005-200307

sub90311-89007

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09075i1CDFTV..CLA2#200105-200307

sub90910-09129

main90910-09107i1ZZFE..ZCA2#200307

main90910-09120i1AZFE..ACA2#200005-200307

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1AZFE..ACA2#200005-200307

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-08363×10i1ZZFE..ZCA2#200005-200307

main90910-02124×10i1AZFE,2AZFE..ACA2#200307

sub90910-02206

main90910-02135×10i1CDFTV..CLA2#200307

main91511-K0840×10i1ZZFE..ZCA2#200307

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017×10i1AZFE..ACA2#200005-200307

11420CRANKCASE ASSY, STIFFENING

main11420-28011i2AZFE..ACA22,23200307-200505

sub11420-0H020

main11420-28031i2AZFE..ACA22,23200508-200511

sub11420-28032

main11420-28040i2AZFE..ACA22,23200505-200508

main11421-28020i1AZFE..ACA2#200112-200301

main11421-28900i1AZFE..ACA2#200005-200112

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-52001i1AZFE..ACA2#200005-200307

11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)

main90341-14013i1AZFE..ACA2#200005-200307

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-14009i1AZFE..ACA2#200005-200304

main90430-14011i1AZFE..ACA2#200304-200307

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08074×2i1AZFE..ACA2#200005-200302

L=15,OD=8

main90250-08120×2i1AZFE..ACA2#200302-200307

L=18,OD=8

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i1AZFE..ACA2#200005-200307

L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-14003×2i1AZFE..ACA2#200005-200307

L=12,OD=14

main90253-14004×2i1CDFTV..CLA2#200105-200307

L=20,OD=14

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08074×2i1AZFE..ACA2#200005-200307

11452GUIDE, OIL LEVEL GAGE

main11452-22030i1ZZFE..ZCA2#200307

sub11452-22031

sub11459-22010

main11452-27050i1CDFTV..CLA2#200307

main11452-28010i1AZFE..ACA2#200005-200301

REFER TO PNC 15301

main11452-28011i1AZFE..ACA2#200301-200307

REFER TO PNC 15301

main11452-28040i1AZFE,2AZFE..ACA2#200510

REFER TO PNC 15301

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1AZFE..ACA2#200005-200307

12101PAN SUB-ASSY, OIL

main12101-22024i1ZZFE..ZCA2#200005-200307

main12101-27010i1CDFTV..CLA2#200105-200108

main12101-27011i1CDFTV..CLA2#200108-200307

main12101-28030i2AZFE..ACA22,23200307

main12101-28050i1AZFE..ACA2#200005-200307

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1AZFE..ACA2#200210-200307

main90341-12026i1AZFE..ACA2#200005-200210

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1AZFE..ACA2#200005-200307

15301GAGE SUB-ASSY, OIL LEVEL

main15301-22030i1ZZFE..ZCA2#200005-200307

main15301-22050i1ZZFE..ZCA2#200507

main15301-27050i1CDFTV..CLA2#200105-200307

main15301-28020i1AZFE..ACA2#200005-200301

TYPE B:REFER ILLUST.

main15301-28050i1AZFE..ACA2#200301-200304

TYPE A:REFER ILLUST.

main15301-28051i1AZFE..ACA2#200304-200307

TYPE A:REFER ILLUST.

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i1ZZFE..ZCA2#200307

15678BFILTER, OIL CONTROL VALVE

main15678-28010i1AZFE,2AZFE..ACA2#..ARL,EUR,GCC200307

3514

8401

9010508439

main90105-08439

9011906848

main90119-06848

9012606015

main90126-06015

9017906326

main90179-06326

9025006003

main90250-06003

9151281032

main91512-81032

91551G0845

main91551-G0845

91631G0614

main91631-G0614

9676124020

main96761-24020

34 parts on this diagram · 4 diagrams in section
