E
EPC Data

MOULDING

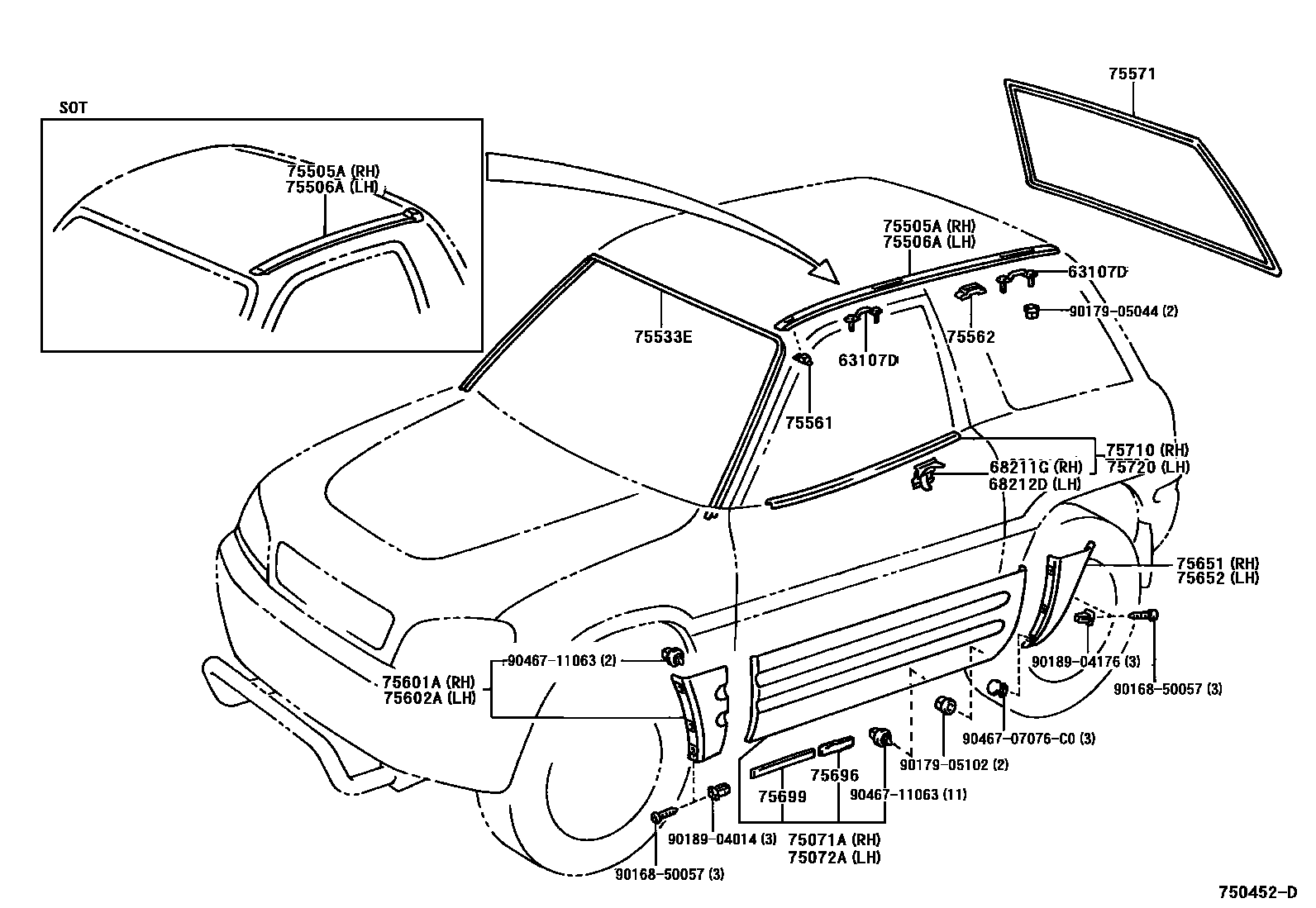

Parts diagram
63107DBRACKET SUB-ASSY, ROOF MOULDING
main63107-42010i199404-199602
sub63107-42011
main63107-42011i199602
68211GCLIP(DOOR BELT MOULDING RH)
main68212-16010i199404
68212DCLIP(DOOR BELT MOULDING LH)
main68212-16010i199404
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
main75071-42010i199404-199509
sub75071-42011
main75071-42011i199509-200008
sub75071-42902
main75071-42020i199504-199509
sub75071-42021
main75071-42021i199509-200008
sub75071-42903
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
main75072-42010i199404-199509
sub75072-42011
main75072-42011i199509
sub75072-42902
main75072-42020i199504-199509
sub75072-42021
main75072-42021i199509
sub75072-42903
75505AMOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, RH
main75505-42010i199404
main75505-42020i199504
main75505-42030i199712
75506AMOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, LH
main75506-42010i199404
main75506-42020i199504
main75506-42030i199712
75533EMOULDING, WINDSHIELD, OUTSIDE
main75533-42010i199404-199702
main75533-42030i199702
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
main75561-42020i199404-199412
75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
main75562-42020i199404
75571MOULDING, BACK WINDOW, OUTSIDE UPPER
main75573-42010i199404
75601AMOULDING SUB-ASSY, FRONT FENDER, RH
main75601-42010i199404-199509
sub75601-42011
main75601-42011i199509
sub75601-42901
main75601-42900i199608
W(BUMPER EXTENTION)
main75601-42900i199712
W(235/60R16 TIRE)
main75601-42900i199808
W(OVER FENDER)
75602AMOULDING SUB-ASSY, FRONT FENDER, LH
main75602-42010i199404-199509
sub75602-42011
main75602-42011i199509
sub75602-42901
main75602-42900i199608
W(BUMPER EXTENTION)
main75602-42900i199712
W(235/60R16 TIRE)
main75602-42900i199808
W(OVER FENDER)
75651MOULDING, QUARTER, OUTSIDE RH
main75605-42900i199808
W(OVER FENDER)
main75605-42900i199608
W(BUMPER EXTENTION)
main75605-42900i199712
W(235/60R16 TIRE)
main75605-42901i199808
W(OVER FENDER)
sub75605-42903
main75605-42901i199608
W(BUMPER EXTENTION)
sub75605-42903
main75651-42010i199404-199509
sub75651-42011
main75651-42011i199509
sub75651-42900
main75651-42020i199504
sub75651-42901
75652MOULDING, QUARTER, OUTSIDE LH
main75606-42900i199808
W(OVER FENDER)
sub75606-42902
main75606-42900i199608
W(BUMPER EXTENTION)
sub75606-42902
main75606-42900i199712
W(235/60R16 TIRE)
sub75606-42902
main75606-42901i199808
W(OVER FENDER)
main75606-42901i199608
W(BUMPER EXTENTION)
main75652-42010i199404-199509
sub75652-42011
main75652-42011i199509
sub75652-42900
main75652-42020i199504
sub75652-42901
75696PAD, BODY OUTSIDE MOULDING, NO.1
main75696-42010i199709-199903
T=1.5
main75696-42010i199709-199806
main75696-42030i199709
T=5.0
main75697-42030i199709
W(235/60R16 TIRE)
main75697-42030i199608-199709
75699PAD, BODY OUTSIDE MOULDING, NO.4
main75699-42010i199709-199906
T=1.2
main75699-42020i199709-199808
W(235/60R16 TIRE),T=1.2
sub75691-35010
main75699-42030i199906
sub75897-60010
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-42010i199404
main75710-42020i199504
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-42010i199404
main75720-42020i199504
9016850057
main90168-50057
9017905044
main90179-05044
9017905102
main90179-05102
9018904014
main90189-04014
9018904176
main90189-04176
9046707076C0
main90467-07076C0
9046711063
main90467-11063

26 parts on this diagram · 4 diagrams in section
