LOCK CYLINDER SET

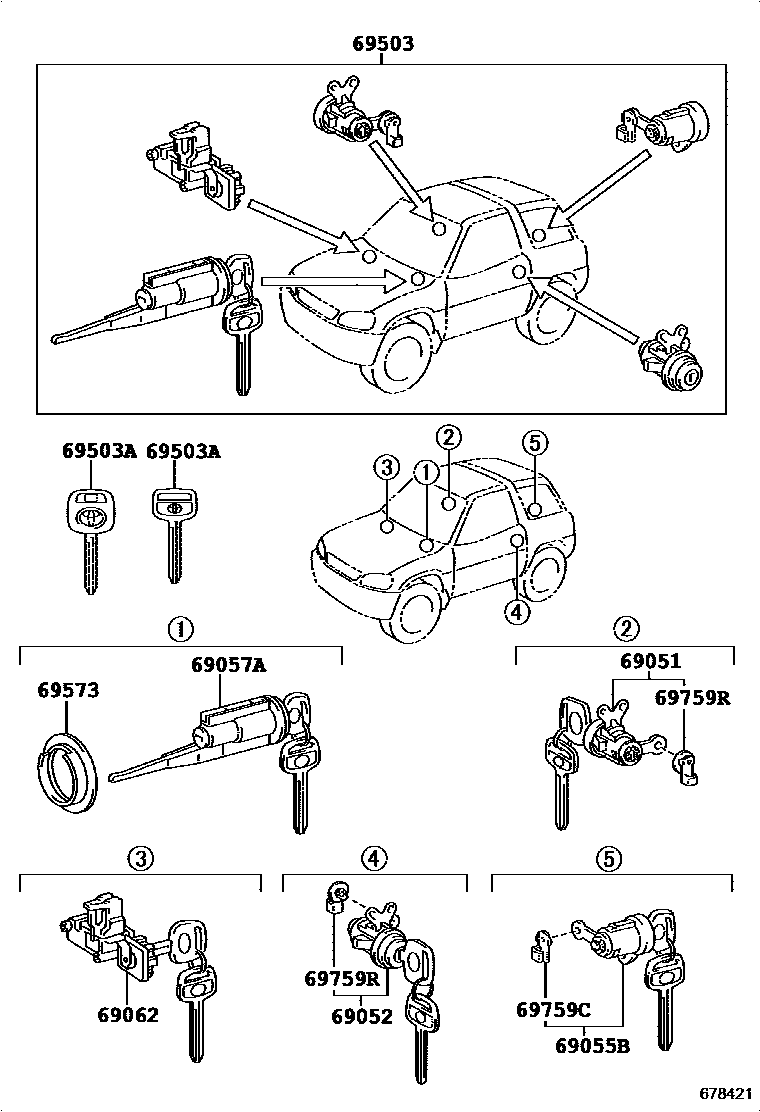

Parts diagram

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-42020i199709

main69051-42030i199404-199709

main69051-42050i199505

SOUTH AFRICA SPEC

main69051-42060i199709

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-42020i199709

main69052-42030i199404-199709

main69052-42050i199709

main69052-42060i199504-199709

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-42020i199709

main69055-42030i199709

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-42020i199505

SOUTH AFRICA SPEC & W(KEY ILLLUMINATION)

main69057-42030i199404-199709

W(KEY ILLUMINATION)

main69057-42040i199709

main69057-42070i199505

SOUTH AFRICA SPEC

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-42020i199505

SOUTH AFRICA SPEC

main69056-42030i199709

69503CYLINDER SET, LOCK

main69005-42020i199505

SOUTH AFRICA SPEC & W(POWER WINDOW)

main69005-42030i199404-199709

W(POWER WINDOW)

main69005-42040i199404-199709

main69005-42060i199504

main69005-42070i199709

W(POWER WINDOW)

main69005-42080i199504-199709

main69005-42130i199505

SOUTH AFRICA SPEC

main69005-42140i199505

SOUTH AFRICA SPEC

69503AKEY, BLANK

main90999-00185×2i199709

MASTER KEY,W(*68)

main90999-00187i199404-199709

SUB KEY,W(*68)

main90999-00199×2i199505

MASTER KEY,W(*68),SOUTH AFRICA SPEC

main90999-00200i199404

SUB KEY,W(*68)

69573PAD, IGNITION SWITCH LOCK CYLINDER

main69573-12030i199404-199503

main69573-42020i199503

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-24080i199404

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-22080i199404

RH-ORANGE

main69759-22090i199404

LH-PINK

10 parts on this diagram · 1 diagram in section
