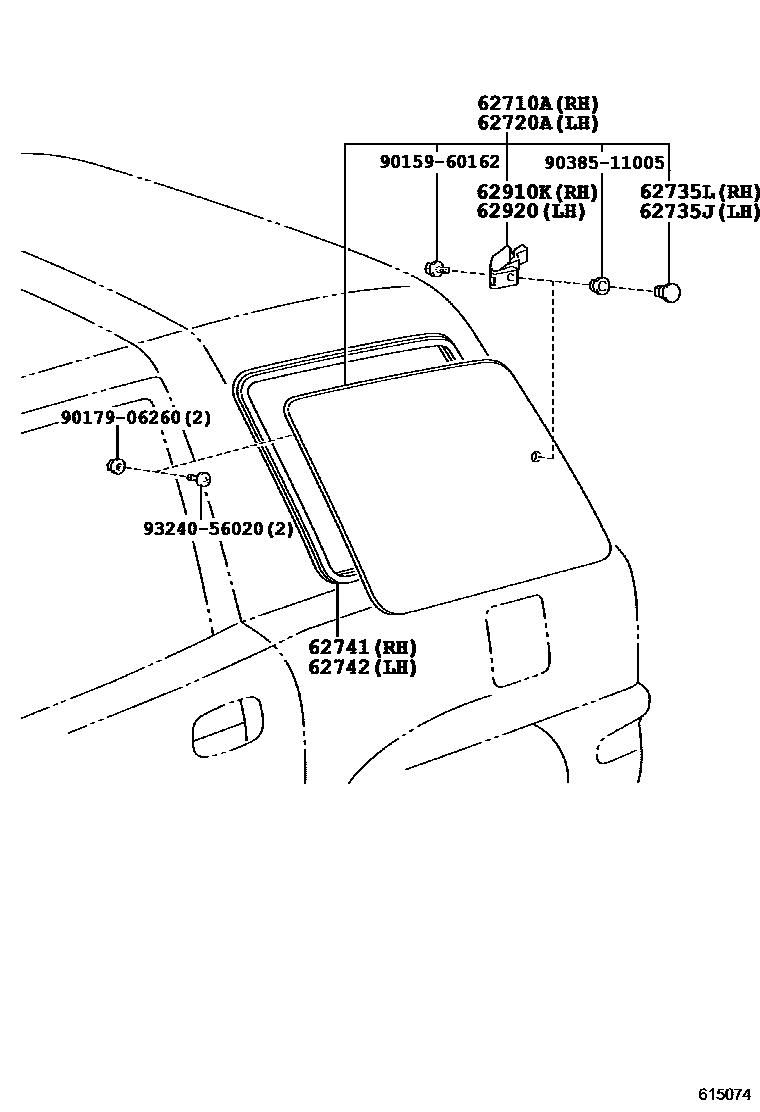

SIDE WINDOW
62710AWINDOW ASSY, QUARTER, RH
*TT,T=3.1,BLUE
*TT,T=3.1,GREEN
*TT,T=3.1,GREEN
62720AWINDOW ASSY, QUARTER, LH
*TT,T=3.1,GREEN
*TT,T=3.1,GREEN,HONG KONG SPEC,BLUISH GRAY,TRIM1#
sub62720-42070
*TT,T=3.1,GREEN,MIDDLE SOUTH AMERICA SPEC,BLUISH GRAY,TRIM1#
sub62720-42070
*TT,T=3.1,GREEN,MIDDLE SOUTH AMERICA SPEC,SHADOW GRAY,TRIM10,11,19
sub62720-42070
*TT,T=3.1,GREEN,HONG KONG SPEC,SHADOW GRAY,TRIM10,11,19
sub62720-42070
*TT,T=3.1,GREEN
62735JRETAINER, QUARTER WINDOW HINGE, LH
MIDDLE SOUTH AMERICA SPEC
HONG KONG SPEC
62735LRETAINER, QUARTER WINDOW HINGE, RH
62741WEATHERSTRIP, QUARTER WINDOW, RH
62742WEATHERSTRIP, QUARTER WINDOW, LH
HONG KONG SPEC
MIDDLE SOUTH AMERICA SPEC
62910KLOCK ASSY, QUARTER WINDOW, RH
sub62920-42010
62920LOCK ASSY, QUARTER WINDOW, LH
HONG KONG SPEC
MIDDLE SOUTH AMERICA SPEC
MIDDLE SOUTH AMERICA SPEC,BLUISH GRAY,TRIM1#
sub62920-42010
MIDDLE SOUTH AMERICA SPEC,SHADOW GRAY,TRIM10,11,19
sub62920-42010
9015960162
main90159-60162
9017906260
main90179-06260
9038511005
main90385-11005
9324056020
main93240-56020
12 parts on this diagram · 2 diagrams in section
