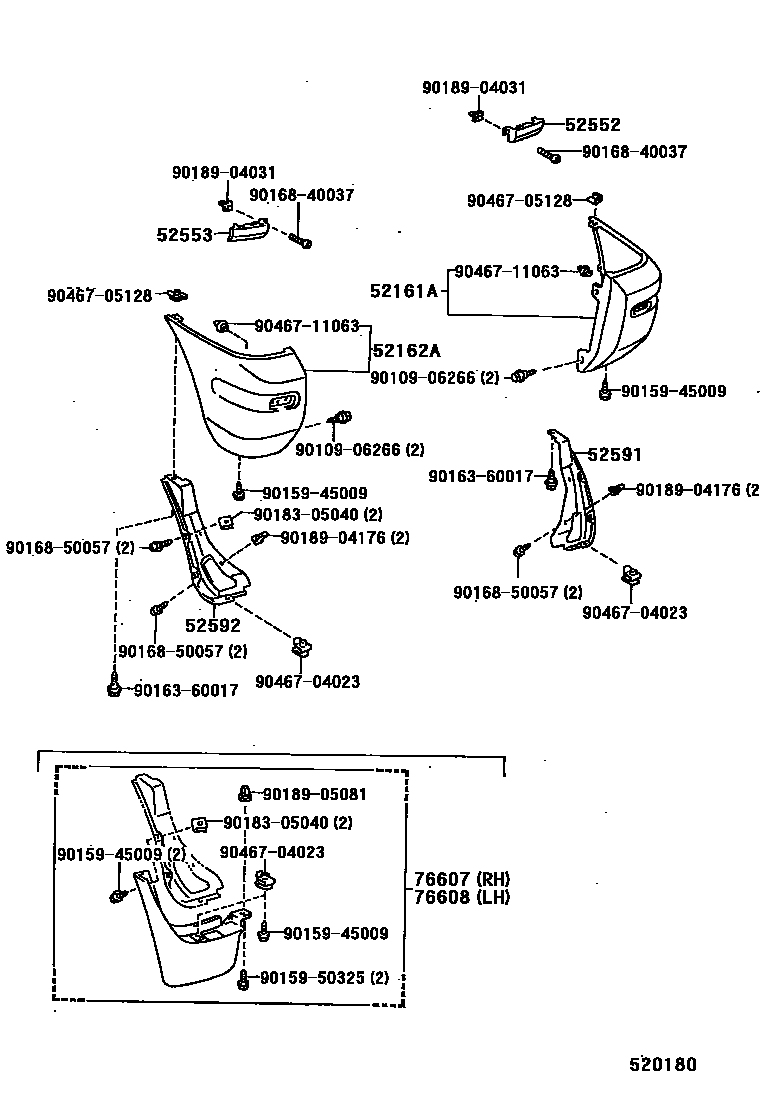

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52161APIECE, REAR BUMPER, RH

main52161-42010iSXA10199404

UNPAINTED

sub52161-42930

main52161-42020iSXA11199504

UNPAINTED

sub52161-42926

main52161-42030-B0iSXA10199709-199808

MIEDIUM GRAY M.,K59 ,K61 ,K62 ,K65 ,K67 ,K69 ,K71

sub52161-42930

sub75996-42050

main52161-42030-B4iSXA10199808

SILVER ME.,KA1 ,KA2 ,K98

sub52161-42930

sub75996-42050

main52161-42030-E0iSXA10199709-199808

WARM GRAY ME.,K66 ,K68

sub52161-42930

sub75996-42050

main52161-42070iSXA10..EUR199608-199808

UNPAINTED & W(OVER FENDER)

sub52161-42932

main52161-42090iSXA11..EUR199608-199808

UNPAINTED & W(OVER FENDER)

sub52161-42928

52162APIECE, REAR BUMPER, LH

main52162-42010iSXA10199404

UNPAINTED

sub52162-42930

main52162-42020iSXA11199504

UNPAINTED

sub52162-42929

main52162-42030-B0iSXA10199808

MIEDIUM GRAY M.,K59 ,K62 ,K65 ,K67 ,K69 ,K71

sub52162-42930

sub75997-42050

main52162-42030-B4iSXA10199808

SILVER ME.,KA1 ,KA2 ,K98

sub52162-42930

sub75997-42050

main52162-42030-E0iSXA10199709-199808

WARM GRAY ME.,K66 ,K68

sub52162-42930

sub75997-42050

main52162-42070iSXA10..EUR199608-199808

UNPAINTED & W(OVER FENDER)

sub52162-42932

main52162-42090iSXA11..EUR199608-199808

UNPAINTED & W(OVER FENDER)

sub52162-42927

52552FILLER, REAR BUMPER, RH

main52506-42010iSXA1#199404

52553FILLER, REAR BUMPER, LH

main52507-42010iSXA1#199404

52591SEAL, REAR BUMPER SIDE, RH

main52591-42010iSXA1#199404-199602

main52591-42011iSXA1#199602

52592SEAL, REAR BUMPER SIDE, LH

main52592-42010iSXA1#199404-199602

main52592-42011iSXA1#199602

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-49015iSXA10..LHD..EUR199404-199603

FINLAND SPEC

main76625-49025iSXA10..RHD..EUR..HT199608

HONG KONG SPEC

main76625-49035iSXA11..ARL199504

main76625-49045iSXA11..LHD..EUR199504-199603

SWITZERLAND SPEC

main76625-49065iSXA10..RHD..EUR199702

W(235/60R16 TIRE)

main76625-49075iSXA11..LHD..EUR199608-199705

THE UNITED KINGDOM SPEC

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-49015iSXA10..LHD..EUR199404-199603

FINLAND SPEC

main76626-49025iSXA10..RHD..EUR..HT199608

HONG KONG SPEC

main76626-49035iSXA11..ARL199504

main76626-49045iSXA11..RHD..EUR199608-199702

W(HOOD SWITCH)

main76626-49065iSXA10..RHD..EUR199702

W(235/60R16 TIRE)

main76626-49075iSXA11..RHD..EUR199702

9010906266

main90109-06266

9015945009

main90159-45009

9015950325

main90159-50325

9016360017

main90163-60017

9016840037

main90168-40037

9016850057

main90168-50057

9018305040

main90183-05040

9018904031

main90189-04031

9018904176

main90189-04176

9018905081

main90189-05081

9046704023

main90467-04023

9046705128

main90467-05128

9046711063

main90467-11063

21 parts on this diagram · 2 diagrams in section
