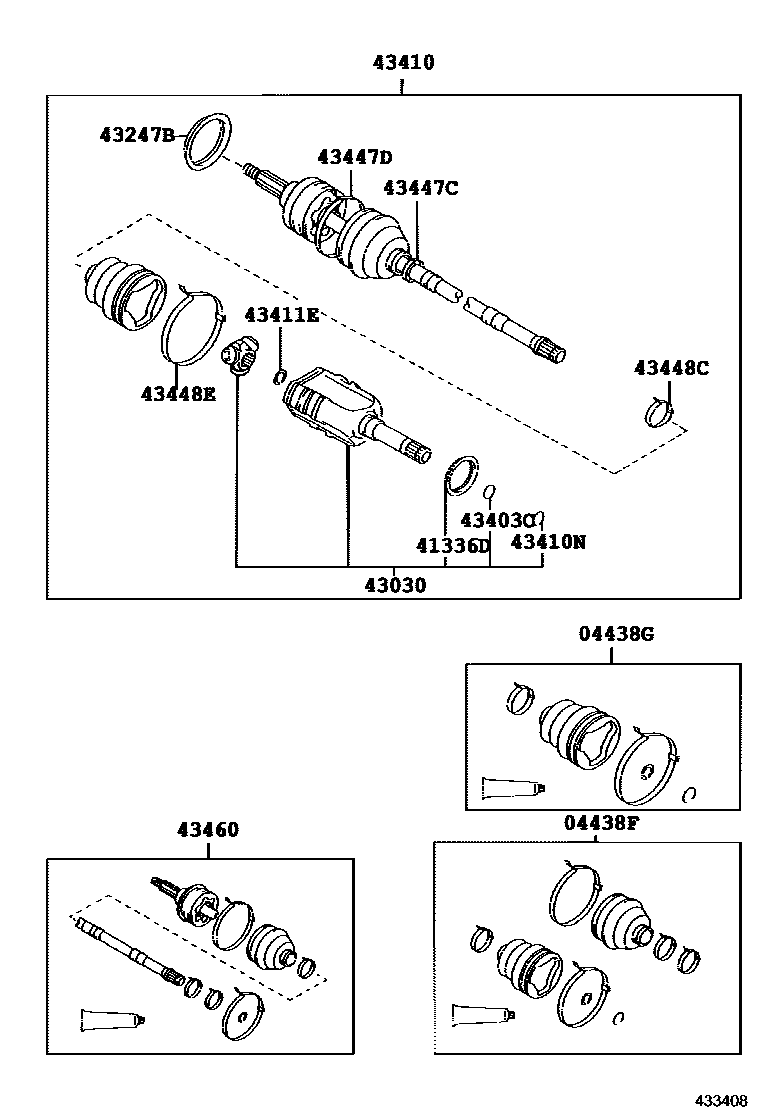

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
sub04438-12301
sub04438-12303
sub04438-12304
sub04438-12300
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2
W(ABS)
43403CRING, O (FOR FRONT DRIVE INBOARD JOINT)
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
ID=35.45
ID=31.1
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
ID=91.9
ID=90.6
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
14 parts on this diagram · 3 diagrams in section
