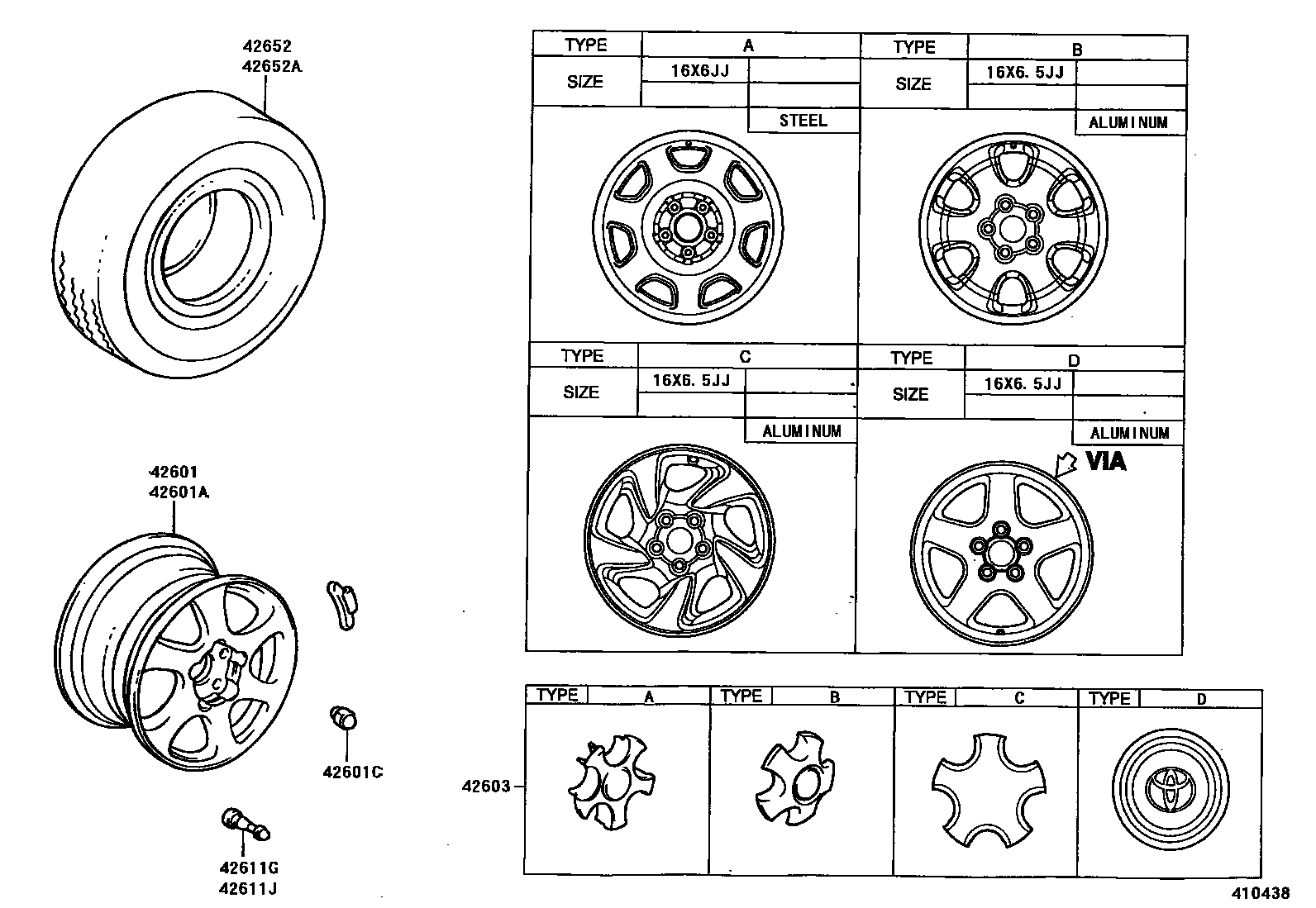

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-0W080×4iSXA1#199709

16X6.5JJ,TYPE E:REFER TO ILLUSTRATION

main42611-42010×4iSXA10199404-199501

16X6JJ,TYPE A:REFER TO ILLUSTRATION

main42611-42011×4iSXA1#199501-199709

16X6JJ,TYPE A:REFER TO ILLUSTRATION

main42611-42020×4iSXA1#199404-199709

16X6.5JJ,TYPE B:REFER TO ILLUSTRATION

main42611-42050×4iSXA1#199709

16X6.5JJ,TYPE F:REFER TO ILLUSTRATION

main42611-42060×4iSXA1#..LHD..EUR;SXA1#..RHD..(EUR,GEN)199808

16X6.5JJ,TYPE C:REFER TO ILLUSTRATION

main42611-42070×4iSXA1#..ARL..HT199901-199902

16X6.5JJ,MAX CAMPAIGN(AUSTRALIA),TYPE D:REFER TO ILLUSTRATION

main42611-42080×4iSXA1#199709

16X6J,TYPE G:REFER TO ILLUSTRATION

main42611-42090×4iSXA1#199709

16X6J,TYPE H:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-0W080iSXA1#199709

16X6.5JJ,TYPE E:REFER TO ILLUSTRATION

main42611-42010iSXA10199404-199501

16X6JJ,TYPE A:REFER TO ILLUSTRATION

main42611-42011iSXA1#199501-199709

16X6JJ,TYPE A:REFER TO ILLUSTRATION

main42611-42020iSXA1#199404-199709

16X6.5JJ,TYPE B:REFER TO ILLUSTRATION

main42611-42050iSXA11..ARL199804-199805

16X6.5JJ,TYPE F:REFER TO ILLUSTRATION;WORLD CUP CELEBRATION MODEL

main42611-42060iSXA1#..LHD..EUR;SXA1#..RHD..(EUR,GEN)199808

16X6.5JJ,TYPE C:REFER TO ILLUSTRATION

main42611-42070iSXA1#..ARL..HT199901-199902

16X6.5JJ,MAX CAMPAIGN(AUSTRALIA),TYPE D:REFER TO ILLUSTRATION

main42611-42080iSXA1#199709

16X6J,TYPE G:REFER TO ILLUSTRATION

main42611-42090iSXA1#199709

16X6J,TYPE H:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01021×23iSXA1#199606

main90942-01058×23iSXA1#199404

W(ALUMINIUM WHEEL)

main90942-01082×20iSXA1#199404-199606

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-42010×4iSXA1#199404-199709

*ALU,TYPE A:REFER TO ILLUSTRATION

main42603-42020×4iSXA1#199404-199709

*STE,TYPE B:REFER TO ILLUSTRATION

main42603-42030×4iSXA1#..EUR199608-199808

*ALU,TYPE C:REFER TO ILLUSTRATION

main42603-42040×4iSXA1#..ARL..HT199901-199902

*ALU,MAX CAMPAIGN(AUSTRALIA),TYPE D:REFER TO ILLUSTRATION

main42603-42050×4iSXA1#199709

*STE,TYPE E:REFER TO ILLUSTRATION

main42638-42010×4iSXA1#199709

*ALU,TYPE F:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iSXA1#199404

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iSXA1#199404

42652TIRE

main42605-42010×4iSXA10..GEN;SXA10..LHD..EUR199404-199504

215/70R16

main42652-42010×4iSXA10..RHD199404-199504

215/70R16 *B/S

main42652-42011×4iSXA10..RHD..CVT;SXA11..ATM..GEN199709

215/70R16 *B/S

main42652-42020×4iSXA10..LHD199404-199504

215/70R16 *B/S

main42652-42021×4iSXA1#..LHD..EUR199609

215/70R16 *B/S

main42652-42041×4iSXA1#..LHD..(EUR,GEN)199711

215/70R16 TUBELESS,(J)

main42652-42070×4iSXA1#..LHD..EUR199608-199808

P215/70R16,*B/S

main42652-42080×4iSXA1#..LHD..EUR199608-199709

P215/70R16,*D/L,W(ALUMINUM WHEEL)

main42652-42081×4iSXA1#..LHD..EUR199709-199808

215/70R16 TUBELESS,(L)

main42652-42110×4iSXA1#..GCC199608

215/70R16

main42652-42120×4iSXA1#..RHD..GEN;SXA10..RHD..EUR..CVT199808

235/60R16

main42652-42130×4iSXA1#..LHD..EUR..HT199608

235/60R16,W(ALUMINUM WHEEL)

42652ATIRE (FOR SPARE)

main42605-42010iSXA1#..GEN;SXA1#..LHD..EUR199709

215/70R16

main42652-42010iSXA10..RHD199404-199504

215/70R16 *B/S

main42652-42011iSXA10..RHD..HT;SXA11..RHD..MTM..GEN;SXA11..RHD..(ARL,EUR)199608

215/70R16 *B/S,W(ALUMINUM WHEEL)

main42652-42020iSXA10..LHD199404-199504

215/70R16 *B/S

main42652-42021iSXA1#..LHD..(EUR,GEN)199609

215/70R16 *B/S

main42652-42041iSXA1#..LHD..(EUR,GEN)199711

215/70R16 TUBELESS,(J)

main42652-42070iSXA1#..LHD..EUR199608-199808

P215/70R16,*B/S

main42652-42080iSXA1#..LHD..EUR199608-199709

P215/70R16,*D/L,W(ALUMINUM WHEEL)

main42652-42081iSXA1#..LHD..EUR199709-199808

215/70R16 TUBELESS,(L)

main42652-42110iSXA1#..GCC199608

215/70R16

main42652-42120iSXA1#..RHD..GEN;SXA10..RHD..EUR..CVT199808

235/60R16

main42652-42130iSXA10..LHD..CVT199712

235/60R16

8 parts on this diagram · 3 diagrams in section
