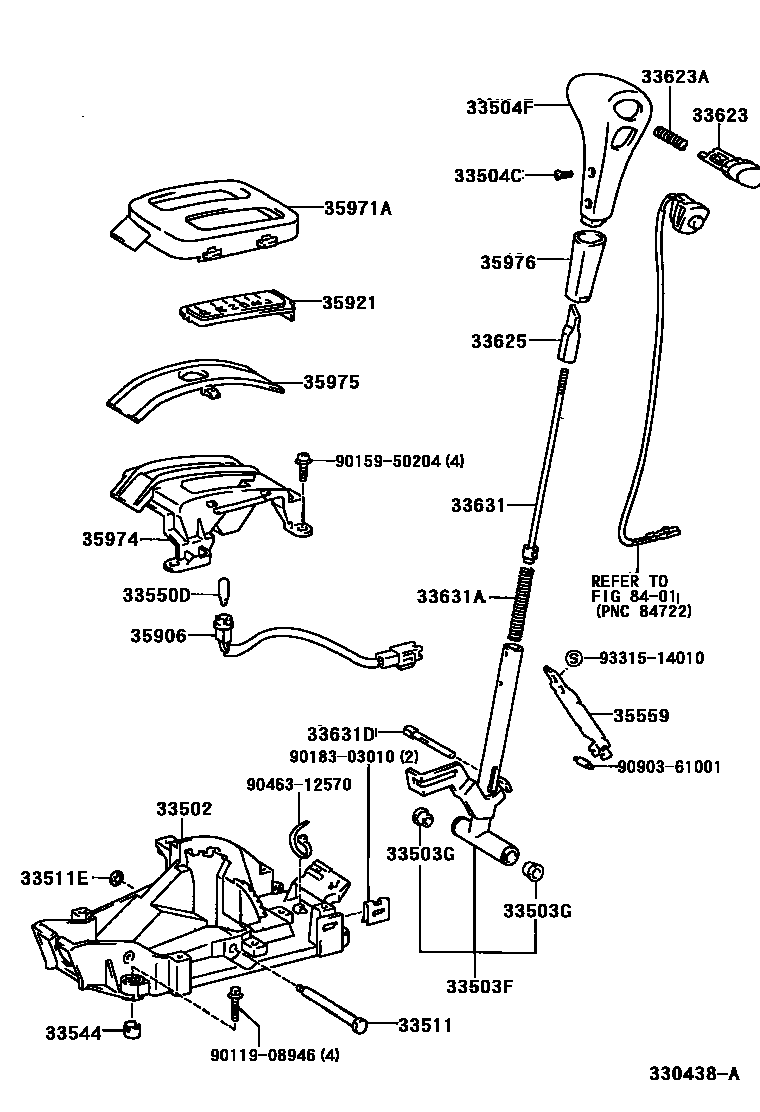

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33502PLATE SUB-ASSY, SHIFT LEVER

main33521-12221iSXA1#..RHD..ATM199404-199709

main33521-12240iSXA1#..LHD..ATM199404-199709

main33521-12250iSXA1#..RHD..ATM199709

main33521-42010iSXA1#..LHD..ATM199709

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-42030iSXA1#..RHD..ATM199709

main33503-42010iSXA1#..RHD..ATM199404-199709

main33503-42020iSXA1#..LHD..ATM199404-199709

main33503-42030iSXA1#..LHD..ATM199709

33503GBUSH(FOR SHIFT LEVER)

main90386-08062×2iSXA1#..LHD..ATM199709

main90386-09024×2iSXA1#..ATM199404-199709

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40238×2iSXA1#..ATM199709

main90159-40244×2iSXA1#..ATM199404-199709

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-C0iSXA1#..MTM199404-200008

BLACK,TRIM1#

main33542-12181-C0iSXA1#..RHD..ATM199404-199709

BLACK,TRIM1#

main33542-12201-C0iSXA1#..LHD..ATM199404-199709

BLACK,TRIM1#

main33542-12210-C0iSXA1#..RHD..ATM199709-200008

BLACK,TRIM1#

sub33542-12211

main33542-12230-C0iSXA1#..LHD..ATM199709-200008

BLACK,TRIM1#

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33511-12100iSXA1#..ATM199404-199709

sub33511-32070

main33511-12110iSXA1#..RHD..ATM199709

main33511-42010iSXA1#..LHD..ATM199709

33511ERING, SNAP (FOR FLOOR SHIFT CONTROL SHAFT)

main90520-08001iSXA1#..ATM199404-199709

33544INSERT, SHIFT LEVER, NO.1

main33544-33010×4iSXA1#..ATM199404

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iSXA1#..LHD..ATM199709

12V 1.2W W/O SOCKET

main90981-11036iSXA1#..ATM199404-199709

12V 1.7W

33623BUTTON, SHIFT LEVER KNOB

main33623-12100-C0iSXA1#..RHD..ATM199404-199709

BLACK,TRIM1#

main33623-12120-C0iSXA1#..LHD..ATM199404-199709

BLACK,TRIM1#

main33623-12130-C0iSXA1#..RHD..ATM199709-200008

BLACK,TRIM1#

main33623-42010-C0iSXA1#..LHD..ATM199709-200008

BLACK,TRIM1#

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-07037iSXA1#..ATM199404-199709

main90501-07110iSXA1#..RHD..ATM199709

33625SLEEVE, SHIFT LEVER KNOB

main33625-12020iSXA1#..ATM199404-199709

main33625-12030iSXA1#..ATM199709

33631ROD, DETENT

main33631-12120iSXA1#..ATM199404-199709

main33631-33020iSXA1#..ATM199709

33631ASPRING, COMPRESSION (FOR DETENT ROD)

main90501-06103iSXA1#..LHD..ATM199709

main90501-07074iSXA1#..ATM199404-199709

main90501-07117iSXA1#..RHD..ATM199709

33631DPIN, GROOVED (FOR DETENT ROD)

main90245-04009iSXA1#..RHD..ATM199709

main90256-04008iSXA1#..ATM199404-199709

35559SPRING, MANUAL DETENT

main35559-12040iSXA1#..ATM199709

main35559-33010iSXA1#..ATM199404-199709

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-12140iSXA1#..RHD..ATM199709

main35906-12160iSXA1#..LHD..ATM199709

sub35906-42040

main35906-42010iSXA1#..RHD..ATM199404-199709

main35906-42020iSXA1#..LHD..ATM199404-199709

35921PLATE, CONTROL POSITION INDICATOR

main35921-12330iSXA1#..RHD..ATM199404-199709

main35921-12380iSXA1#..LHD..ATM199404-199709

main35921-12390iSXA1#..RHD..ATM199709

main35921-12420iSXA1#..LHD..ATM199709

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-12270-C0iSXA1#..RHD..ATM199404-199709

BLACK,TRIM1#

main35971-12320-C0iSXA1#..LHD..ATM199404-199709

BLACK,TRIM1#

main35971-12340-C0iSXA1#..RHD..ATM199709-200008

BLACK,TRIM1#

main35971-12360-C0iSXA1#..LHD..ATM199709-200008

BLACK,TRIM1#

35974HOUSING, POSITION INDICATOR, LOWER

main35974-12130iSXA1#..RHD..ATM199404-199709

main35974-12161iSXA1#..LHD..ATM199404-199709

main35974-42010iSXA1#..LHD..ATM199709

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-12200-C0iSXA1#..ATM199404-199709

BLACK,TRIM1#

main35975-12220-C0iSXA1#..ATM199709-200008

BLACK,TRIM1#

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-12080-C0iSXA1#..ATM199404-200008

BLACK,TRIM1#

8401

9011908946

main90119-08946

9015950204

main90159-50204

9018303010

main90183-03010

9046312570

main90463-12570

9090361001

main90903-61001

9331514010

main93315-14010

29 parts on this diagram · 5 diagrams in section
