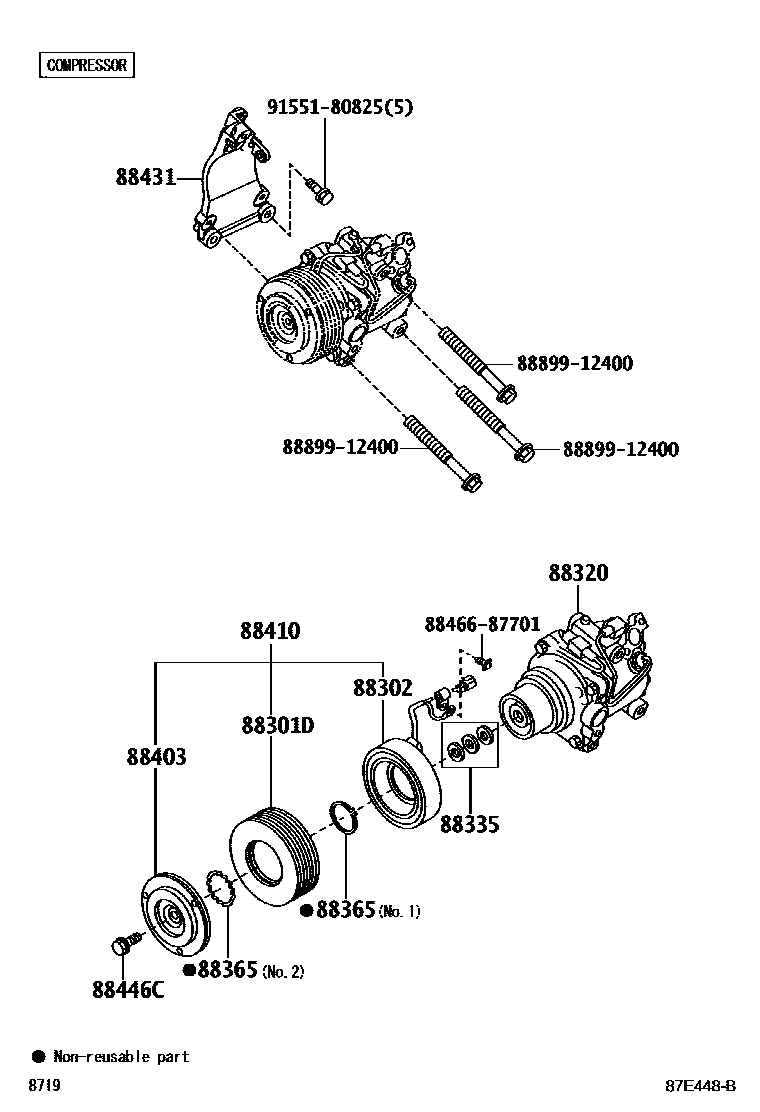

HEATING & AIR CONDITIONING - COMPRESSOR

88301DROTOR, MAGNET CLUTCH, NO. 2

main88412-B4040iJ200200811-200911

main88412-B4050iJ200,210201605

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-97401iJ200200811-200911

88320COMPRESSOR ASSY, COOLER

main88320-B4010iJ200200812-200911

main88320-BZ180iJ200200811-200812

sub88320-B4010

88335GASKET KIT, OVERHAUL

main88335-14020iJ200200811-200911

88365RING, SNAP

main88365-87201iJ200200811-200911

NO.1

main90099-07125iJ200200811-200911

NO.2

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-B4010iJ200200811-200911

88410CLUTCH ASSY, MAGNET

main88410-B4040iJ200200811-200911

main88410-B4060iJ200,210201605

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-B4020iJ200200811-200911

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iJ200200811-200911

8846687701

main88466-87701

8889912400COVER, EVAPORATOR

main88899-12400

9155180825

main91551-80825

12 parts on this diagram · 1 diagram in section
