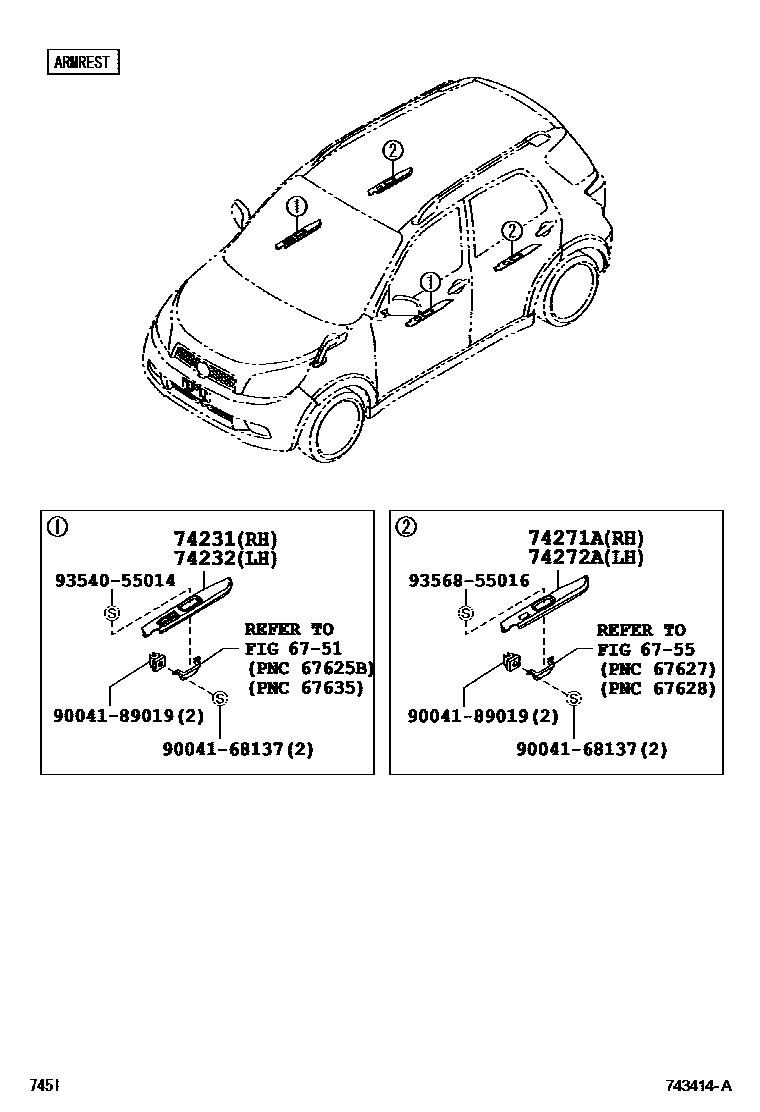

ARMREST & VISOR

0001 1ARMREST 0003 1VISOR&ASSISTGRIP

6751

6755

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-B4020-B0iJ200,210200811

DK.GRAY,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-B4020-B0iJ200,210200811

DK.GRAY,TRIM1#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-B4010-B0iJ200,210200811

DK.GRAY,TRIM1#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-B4010-B0iJ200,210200811

DK.GRAY,TRIM1#

9004168137

main90041-68137¥110

9004189019

main90041-89019¥80

9354055014

main93540-55014¥60

9356855016

main93568-55016¥70

10 parts on this diagram · 2 diagrams in section
