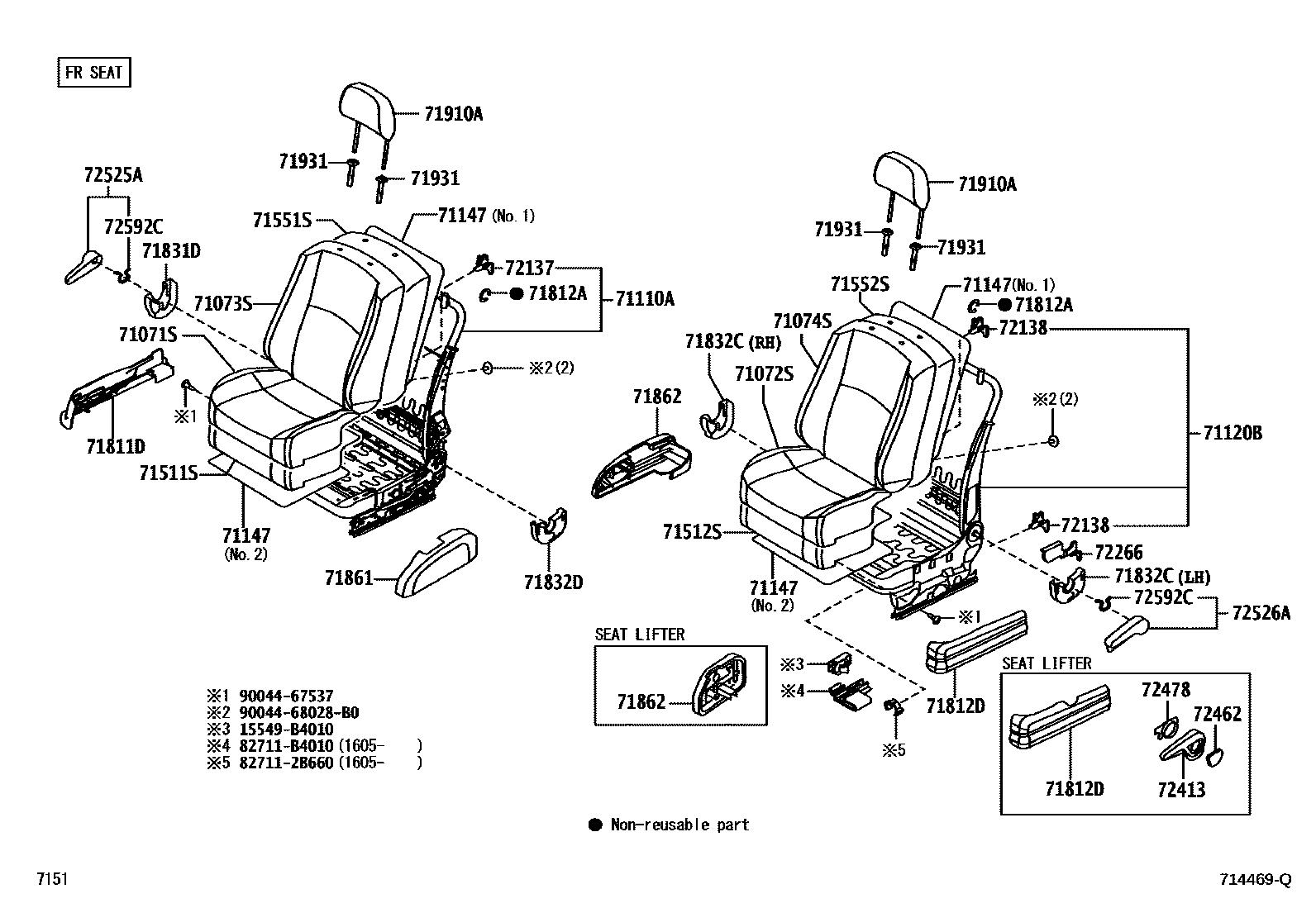

SEAT & SEAT TRACK

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-B4310-C1i200811-200911

BLACK,TRIM1#

sub71071-B4311

main71071-B4360-C0i201605

BLACK,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-B4300-C1i200811-200911

BLACK,TRIM1#

sub71072-B4301

main71072-B4330-C0i201605

HI-G PACKAGE,BLACK,TRIM1#

main71072-B4370-C0i201605

BLACK,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-B4780-C1i200811-200911

BLACK,TRIM1#

sub71073-B4781

main71073-B4A20-C0i201605

BLACK,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-B4461-C0i201605

BLACK,TRIM1#

main71074-B4550-C1i200811-200911

BLACK,TRIM1#

sub71074-B4551

main71074-B4620-C0i201605

HI-G PACKAGE,BLACK,TRIM1#

71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH

main71110-B4051i200811

71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH

main71120-B4011i200811-200911

main71120-B4011i201605

HI-G PACKAGE

main71120-B4041i201605

71147SILENCER, SEAT SPRING

main71147-B1010i200811

NO.1

main71147-B1020i200811

NO.2

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-B4010i200811

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-B4010i201605

main71502-B4020i200811-200911

main71502-B4020i201605

HI-G PACKAGE

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-B4010i200811

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71506-B4010i200811

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-B1010-B0i200811

DK.GRAY,TRIM1#

sub71811-B1010

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main71812-87201i200811

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-B1030-B0i201605

DK.GRAY,TRIM1#

sub71812-B1030

main71812-B1050-B0i200811-200911

DK.GRAY,TRIM1#

main71812-B1050-B0i201605

HI-G PACKAGE,DK.GRAY,TRIM1#

71831DCOVER, FRONT SEAT HINGE, RH

main71831-B2010-B1i201605

DK.GRAY,TRIM1#

sub71831-B2010

71832CCOVER, FRONT LH SEAT HINGE

main71831-B2020-B0i201605

DK.GRAY,TRIM1#,RH

sub71831-B2020

main71832-B2010-B1i201605

DK.GRAY,TRIM1#,LH

sub71832-B2010

71832DCOVER, FRONT SEAT HINGE, LH

main71832-B2040-B0i201605

DK.GRAY,TRIM1#

sub71832-B2040

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-B2020-B1i200811

DK.GRAY,TRIM1#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-B2020-B1i201605

DK.GRAY,TRIM1#

main71862-B2050-B1i200811-200911

DK.GRAY,TRIM1#

main71862-B2050-B1i201605

HI-G PACKAGE,DK.GRAY,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-B4010-B2i200811-200911

DK.GRAY,TRIM1#

main71910-B4112-C0i201605

BLACK,TRIM1#,TYPE B

71931SUPPORT, FRONT SEAT HEADREST

main71930-97202-C0i200811-201707

W(LOCK),BLACK,TRIM1#

sub71930-97202

main71930-97202-C1i201707

W(LOCK),BLACK,TRIM1#

sub71930-97202

main71931-97202-C0i200811-201707

W/O(LOCK),BLACK,TRIM1#

sub71931-97202

main71931-97202-C1i201707

W/O(LOCK),BLACK,TRIM1#

sub71931-97202

72137COVER, SEAT TRACK, OUTER RH

main72137-97205i200811-200901

72138COVER, SEAT TRACK, OUTER LH

main72137-97205i200811

72266COVER, SEAT TRACK UPPER RAIL, LH

main72266-B2020-B0i200811-200911

DK.GRAY,TRIM1#

main72266-B2020-B0i201605

HI-G PACKAGE,DK.GRAY,TRIM1#

72413LEVER, VERTICAL ADJUSTER LOCK

main72413-B1020-B0i200811-200911

DK.GRAY,TRIM1#

main72413-B1020-B0i201605

HI-G PACKAGE,DK.GRAY,TRIM1#

72462COVER, VERTICAL ADJUSTER RH

main72462-B1020-B0i200811-200911

DK.GRAY,TRIM1#

main72462-B1020-B0i201605

HI-G PACKAGE,DK.GRAY,TRIM1#

72478BUSH, VERTICAL ADJUSTER

main72478-60010i200811-200911

main72478-60010i201605

HI-G PACKAGE

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-B1010-B0i200811-201806

DK.GRAY,TRIM1#

sub72525-B1010

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-B1010-B0i200811

DK.GRAY,TRIM1#

sub72526-B1010

72592CRING, SHAFT SNAP

main90520-01002i200811

sub90520-01274

15549B4010

main15549-B4010

827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B660

82711B4010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-B4010

9004467537

main90044-67537

9004468028B0

main90044-68028B0

35 parts on this diagram · 3 diagrams in section
