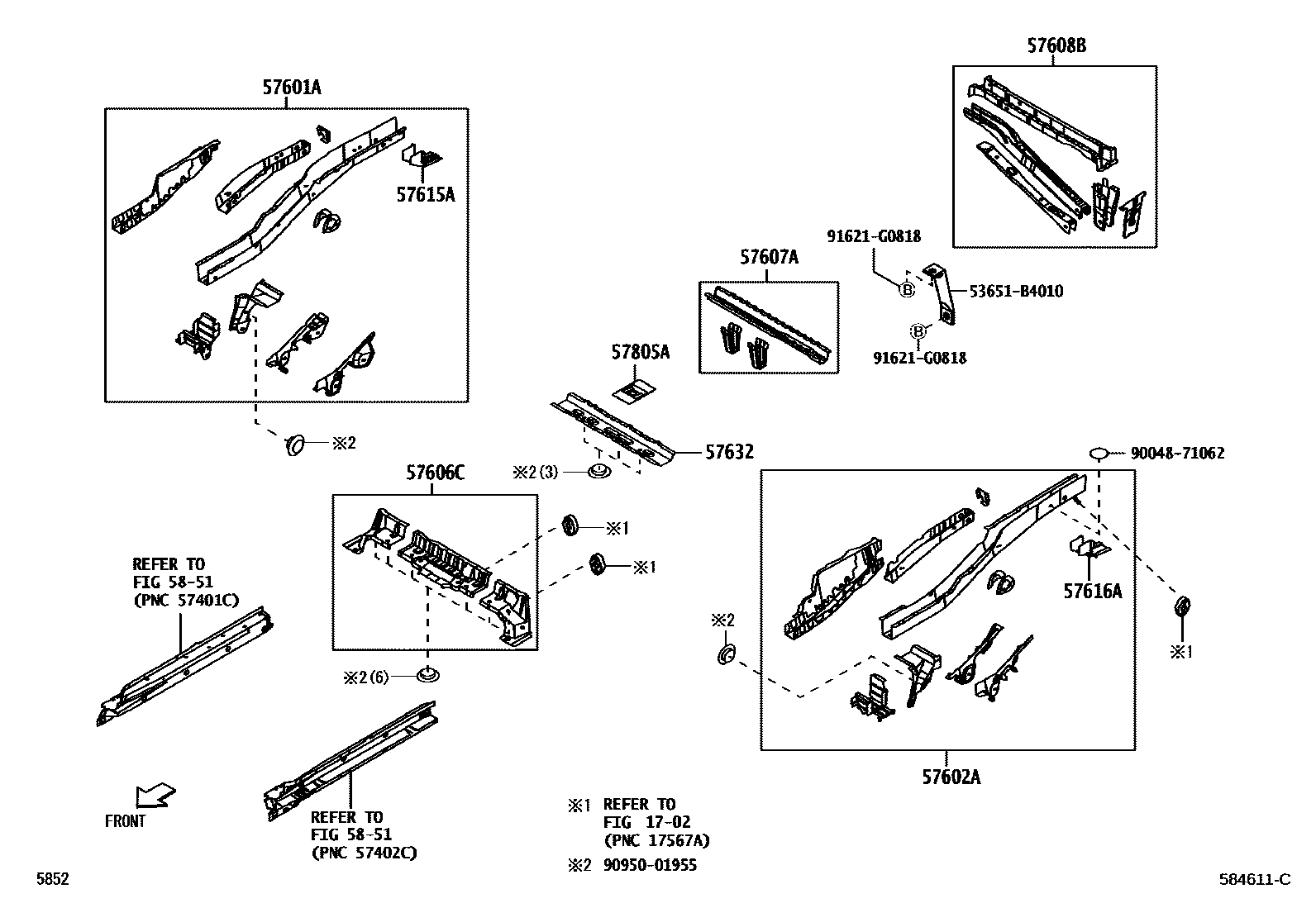

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0003 1

1702

57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-B4020iJ200,210200811-201806

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-B4010iJ200,210200811-201806

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-B4010iJ200,210200811-201806

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-B4010iJ200,210200811

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-B4010iJ200,210200811

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-B4010iJ200,210200811

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-B4010iJ200,210200811

57632MEMBER, REAR FLOOR, CENTER NO.1

main57632-B4010iJ200,210200811

57805AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1

main57805-B4010×4iJ200,210200811

5851

53651B4010BRACE, REAR FLOOR SIDE MEMBER

main53651-B4010

9004871062

main90048-71062

9095001955

main90950-01955

91621G0818

main91621-G0818

15 parts on this diagram · 2 diagrams in section
