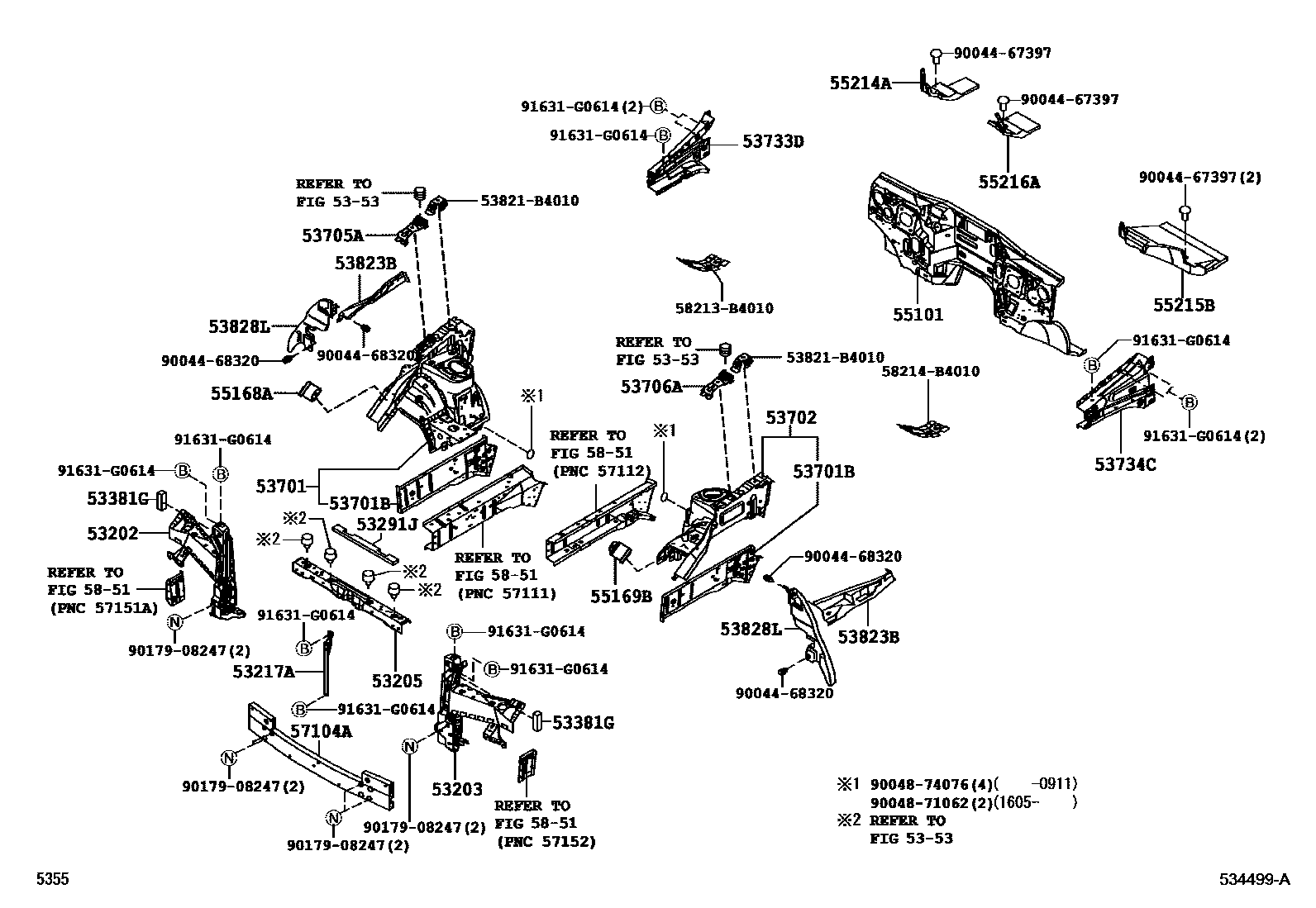

FRONT FENDER APRON & DASH PANEL
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53217ABRACE, HOOD LOCK SUPPORT
53381GSEAL, HOOD TO RADIATOR SUPPORT, NO.1
5353
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53705ABRACE SUB-ASSY, FENDER APRON, RH
53706ABRACE SUB-ASSY, FENDER APRON, LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53823BPROTECTOR, FRONT SIDE PANEL, NO.2
RH
LH
53828LPROTECTOR, FRONT FENDER SIDE PANEL
RH
LH
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55214APAD, DASH PANEL INSULATOR, NO.2
55215BPAD, DASH PANEL INSULATOR, NO.3
55216APAD, DASH PANEL INSULATOR, NO.4
57104AMEMBER SUB-ASSY, FRONT CROSS
5851
53821B4010PLATE, FRONT FENDER SPLASH UPPER SEAL, RH
main53821-B4010
58213B4010REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH
main58213-B4010
58214B4010BRACKET, CLUTCH PEDAL STOPPER
main58214-B4010
9004467397
main90044-67397
9004468320
main90044-68320
9004871062
main90048-71062
9004874076
main90048-74076
9017908247
main90179-08247
91631G0614
main91631-G0614
33 parts on this diagram · 2 diagrams in section
