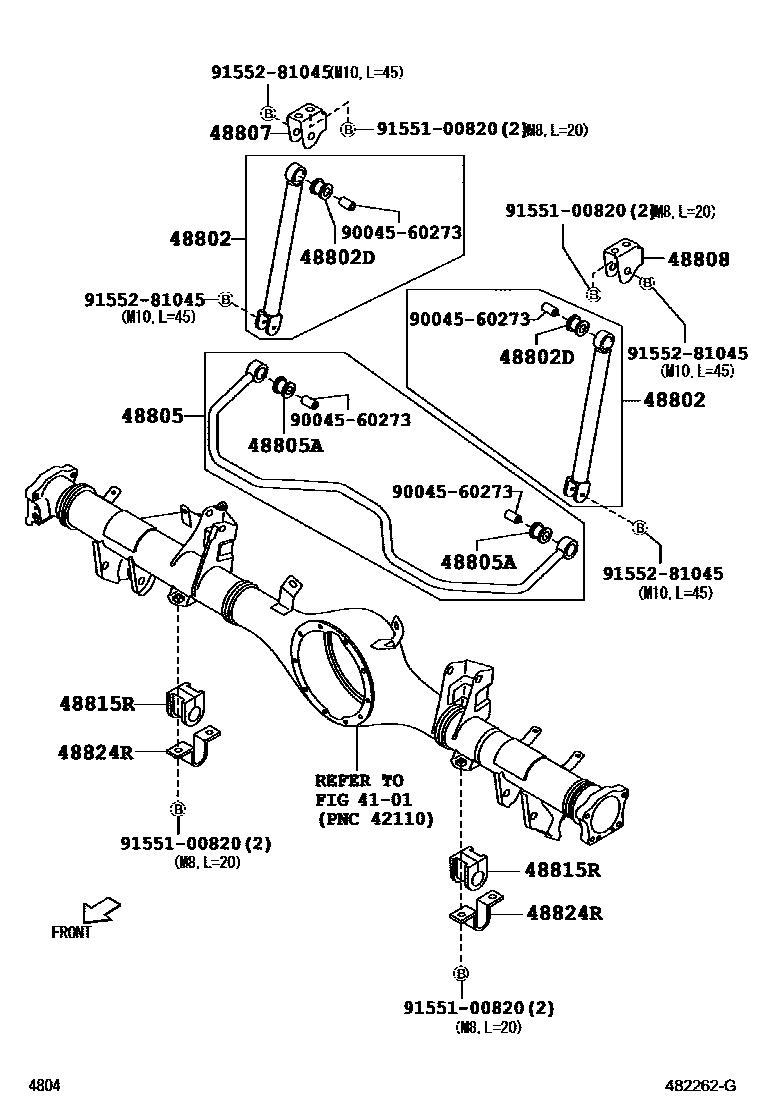

REAR SPRING & SHOCK ABSORBER

0001 1 0003 1

4101

48802LINK SUB-ASSY, STABILIZER

main48802-B4010×2iJ200200811-200911

48802DBUSH, STABILIZER LINK

main90043-89156×2iJ200200811-200911

48805BAR SUB-ASSY, REAR STABILIZER

main48805-B4010iJ200200811-200911

48805ABUSH(FOR REAR STABILIZER BAR)

main48849-B4010×2iJ200200811-200911

48807BRACKET, REAR STABILIZER BAR, RH

main48809-B4010iJ200200811-200911

48808BRACKET, REAR STABILIZER BAR, LH

main48809-B4010iJ200200811-200911

48815RBUSH, STABILIZER(FOR REAR)

main48815-B4040×2iJ200200811-200911

48824RBRACKET, STABILIZER(FOR REAR)

main48824-B4030×2iJ200,210200811

9004560273

main90045-60273

9155100820

main91551-00820

9155281045

main91552-81045

12 parts on this diagram · 2 diagrams in section
