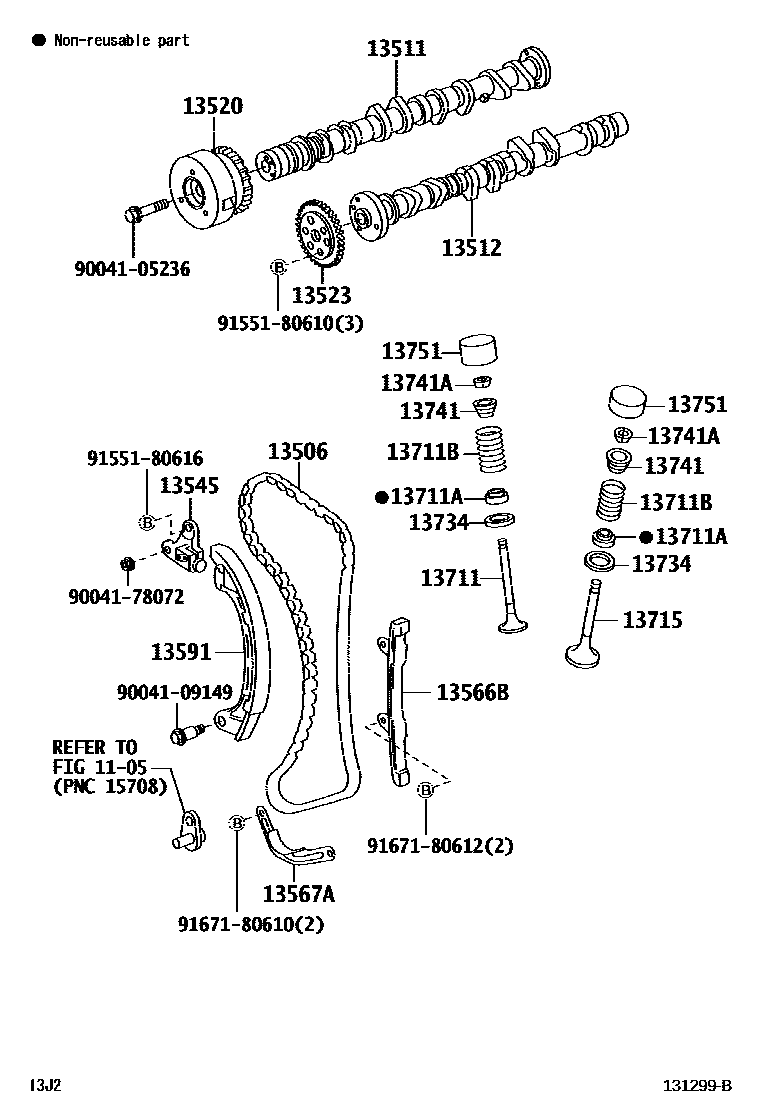

CAMSHAFT & VALVE
1105
13506CHAIN SUB-ASSY
13511CAMSHAFT
13512CAMSHAFT, NO.2
13520SPROCKET ASSY, CAMSHAFT TIMING
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13566BGUIDE, TIMING CHAIN
13567AGUIDE, TIMING CHAIN, NO.2
13591ARM, TIMING CHAIN TENSION
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
sub90913-02125
13711BSPRING, COMPRESSION(FOR INNER)
CHUO HATSUJO
SUNCALL
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
MARK12
MARK14
MARK16
MARK18
MARK20
MARK22
MARK24
MARK26
MARK28
MARK30
MARK32
MARK34
MARK36
MARK38
MARK40
MARK42
MARK44
MARK46
MARK48
MARK50
MARK52
MARK54
MARK56
MARK58
MARK60
MARK62
MARK64
MARK66
MARK68
T=5.12
T=5.14
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.30
T=5.32
T=5.34
T=5.36
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64
T=5.66
T=5.68
9004105236
main90041-05236
9004109149
main90041-09149
9004178072
main90041-78072
9155180610
main91551-80610
9155180616
main91551-80616
9167180610
main91671-80610
9167180612
main91671-80612
25 parts on this diagram · 1 diagram in section
