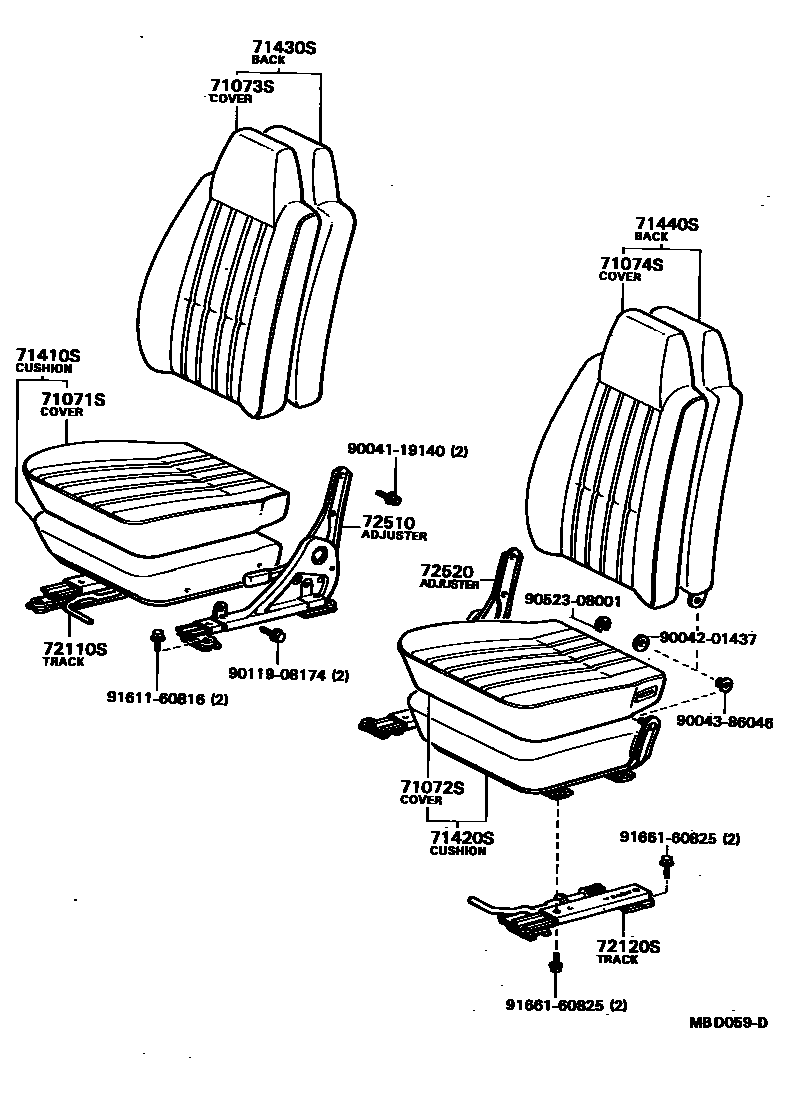

SEAT & SEAT TRACK
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
VL
FB
VL
FB
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
VL
FB
VL
FB
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
VL
FB
VL
FB
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
VL
FB
VL
FB
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
VL
FB
VL
FB
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
VL
FB
VL
FB
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
VL
FB
VL
FB
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
VL
FB
VL
FB
72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72120STRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72510ADJUSTER ASSY, RECLINING SEATBACK, RH
72520ADJUSTER ASSY, RECLINING SEATBACK, LH
9004119140
main90041-19140
9004201437
main90042-01437
9004386046
main90043-86046
9011908174
main90119-08174
9052308001
main90523-08001
9161160816
main91611-60816
9166160825
main91661-60825
19 parts on this diagram · 2 diagrams in section
