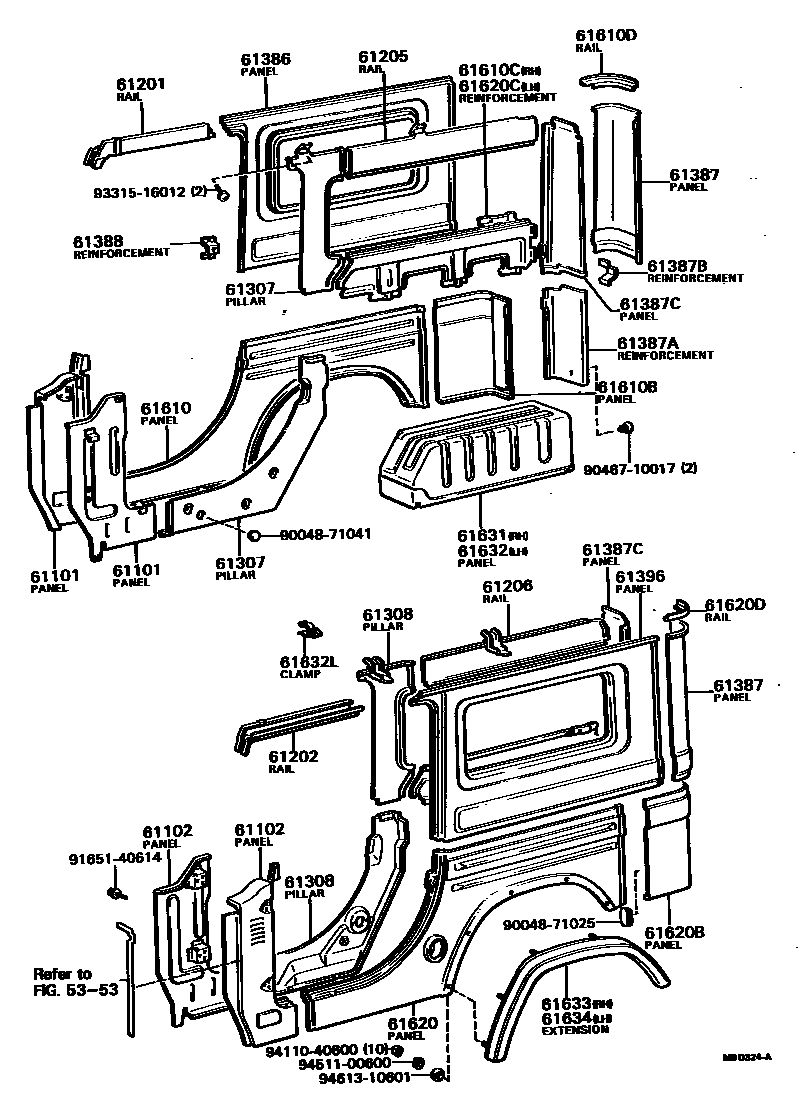

SIDE MEMBER

5353

61101PANEL SUB-ASSY, COWL SIDE, RH

main55703-87605iLD10198201-198404

INNER

main55706-87606iLD10198201-198404

OUTER

61102PANEL SUB-ASSY, COWL SIDE, LH

main55704-87605iLD10198201-198404

INNER

main55707-87606iLD10198201-198404

OUTER

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-87603iLD10198201-198404

61202RAIL SUB-ASSY, ROOF SIDE, LH

main61202-87603iLD10198201-198404

61205RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH

main61206-87602iLD10198201-198404

61206RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH

main61207-87602iLD10198201-198404

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61305-87605iLD10198201-198404

UPR

main61307-87611iLD10198201-198404

LWR

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61306-87605iLD10198201-198404

UPR

main61308-87610iLD10198201-198404

LWR

61386PANEL, REAR SIDE, UPPER RH

main61386-87603iLD10198201-198404

61387PANEL, REAR BODY CORNER, UPPER

main61387-87601iLD10198201-198404

RH

main61397-87601iLD10198201-198404

LH

61387AREINFORCEMENT SUB-ASSY, REAR BODY CORNER

main58305-87601iLD10198201-198404

RH

main58322-87602iLD10198201-198404

LH

61387BREINFORCEMENT, SWING GATE HINGE

main61351-87602×2iLD10198201-198404

61387CPANEL, REAR PILLAR INNER, UPPER

main61735-87601iLD10198201-198404

RH

main61736-87601iLD10198201-198404

LH

61388REINFORCEMENT, SEAT BELT ANCHORAGE

main61388-87601×2iLD10198201-198404

61396PANEL, REAR SIDE, UPPER LH

main61396-87603iLD10198201-198404

61610PANEL ASSY, REAR BODY SIDE, RH

main61071-87604iLD10198201-198404

61610BPANEL SUB-ASSY, REAR BODY CORNER, RH

main58301-87605iLD10198201-198404

61610CREINFORCEMENT SUB-ASSY, REAR SIDE, LOWER RH

main61204-87604iLD10198201-198404

61610DRAIL, REAR CORNER PANEL, UPPER RH

main61332-87601iLD10198201-198404

61620PANEL ASSY, REAR BODY SIDE, LH

main61072-87604iLD10198201-198404

61620BPANEL SUB-ASSY, REAR BODY CORNER, LH

main58302-87604iLD10198201-198404

61620CREINFORCEMENT SUB-ASSY, REAR SIDE, LOWER LH

main61205-87603iLD10198201-198404

61620DRAIL, REAR CORNER PANEL, UPPER LH

main61333-87601iLD10198201-198404

61631PANEL, QUARTER WHEEL HOUSE, RH

main58203-87608iLD10198201-198301

main58203-87612iLD10198301-198404

61632PANEL, QUARTER WHEEL HOUSE, LH

main58204-87605iLD10198201-198301

main58204-87608iLD10198301-198404

61632LCLAMP, JACK HANDLE

main74715-87602×2iLD10198201-198404

61633EXTENSION, WHEEL HOUSE, RH

main61681-87601iLD10198201-198404

61634EXTENSION, WHEEL HOUSE, LH

main61682-87601iLD10198201-198404

9004871025

main90048-71025

9004871041

main90048-71041

9046710017

main90467-10017

9165140614

main91651-40614

9331516012

main93315-16012

9411040600

main94110-40600

9451100600

main94511-00600

9461310601

main94613-10601

37 parts on this diagram · 1 diagram in section
